    Modules / Fluid Drill Spare Parts 20 Degree Drilling Angle For F Series

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : F1300/F1000/F500/F800
    Certification : API Certificate, ISO9001 Certificate
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 pcs per month
    Delivery Time : Within 8 days after deposit
    • Product Details
    • Company Profile

    Modules / Fluid Drill Spare Parts 20 Degree Drilling Angle For F Series

    Hydraulic Cylinder and Assembly


    Cylinder material is special alloy steel forgings,and machines with mature scientific processing technology.It has reasonable structure and high efficiency.

    Hydraulic cylinder with corresponding bolts and nuts could constitute hydraulic cylinder assembly.

    Cylinder material is alloy forgings,and three cylinders of each pump are interchangeable.If user has requirements,we can do chemical plating nickel on th surface of cylinder,so that enhance its corrosion resistance.

    The exhaust outlet is respectively equipped with exhaust air bag,shear pin valve and discharge filter.


    Product Description

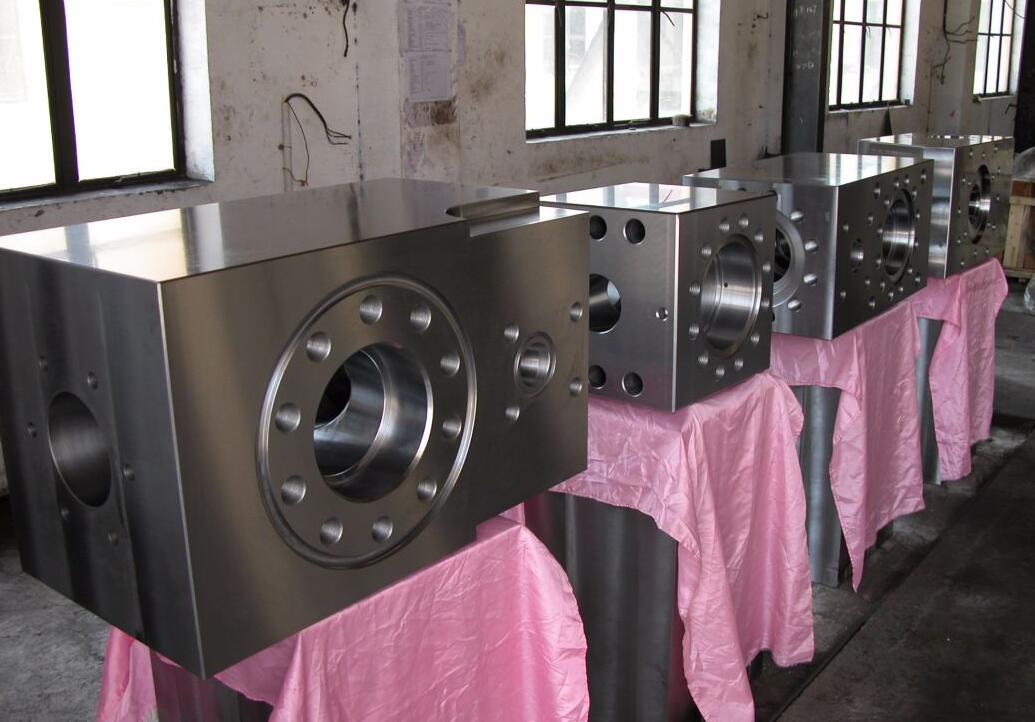

    We can supply various pump modules(complete module or module with stud&nut), the modules has following features:

    (1) Heat-treated and internally hardened for high durability ; available in various materials to meet a wide range of applications ;standard one-or and/or two-piece configuration ,with designs available for pressure of 5000,7500,and 10000psi (351,527,and 703kg/cm2); discharge connections available on each side ; suction connections on each side or front center .
    (2) Adapt most third party fluid-end modules to the mud pumps ,eliminating the need for drilling contractors to stock fliud end parts from several manufacturers ,Supply heated ,internally hardened forged alloy steel modules ,if the drilling contractor doesn't specify third party fliud ends .
    (3) Made from the premium alloy steel AISI8620 or 4135 , with thermal refining treatment ,rigid inspection ,as well as the strict Nondestructive Examination performed for ensuring no internal flaw .


    Quality Modules / Fluid Drill Spare Parts 20 Degree Drilling Angle For F Series for sale
