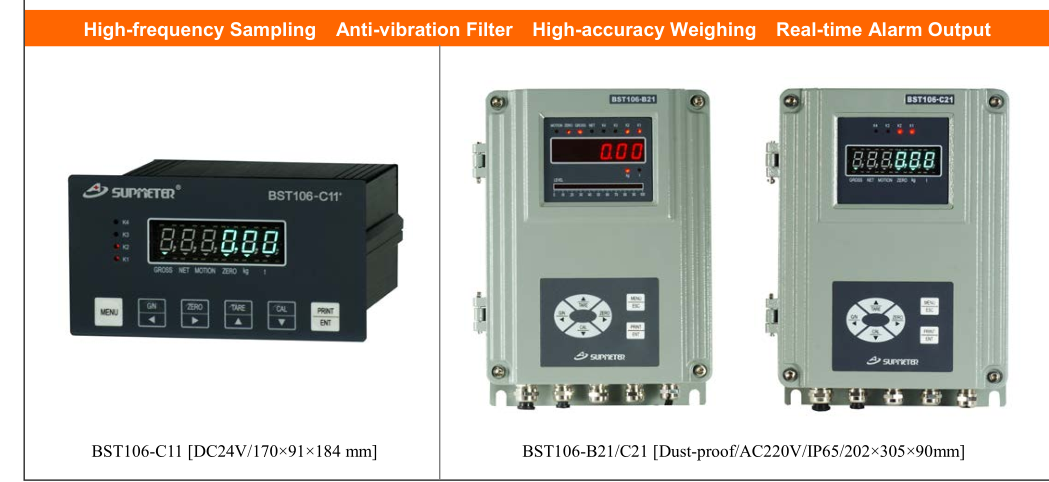

Multifunction Weighing Indicator Controller LED Display For Level Scale / Hopper Scale

Main Applications

1.  Material Level Scale, Hopper Scale & Platform Scale.
2.  Weight Limit DO Alarm Mode.
3.  Weight Increment DO Output Mode.
4.  Weight Decrement DO Output Mode.

Main Features

1. EMC design with high anti-jam for industrial environment.
2.  6 LED/VFD digital tubes for English&digit display.
3.  64-segment LED for percent display.
4.  24-bit ∑-△ADC with internal resolution 1/1,000,000.
5.  High sampling frequency 200Hz.
6.  Special Anti-vibration Digital Filtering Algorithm for precise
7. weighing, stable display and rapid response.
8.  Auto Zero Tracking.
9.  Load Calibration &, Data Calibration.
10.  The Weighing Record can be printed.
11.  Definable AO/COM[Communication Port].​

Technical Specifications

1. Power Supply: AC220V±15%, 50/60Hz, Max. 10W.
2.  Loadcell Excitation Voltage/Current: DC10V/250mA.
3.  8 Loadcells[350Ω] connectable.
4.  Weighing Signal Input Range: 0~25mV.
5.  3 Normally Open Switch Inputs [DI].
6.  4 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.
7.  1 Analog Signal Output [AO]: 4~20mA, 0.05%FS.
8.  COM1: Fixed RS232&RS485. Free to use one of them.
9.  COM2: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
10.  Connect Host IPC, Remote Display, Printer&Wireless Module.
11.  Outline Size [W×H×D]: 160 × 84 × 188 mm.
12.  Panel Cut-out Size [W×H]: 151 × 76 mm.
13.  Operating Temperature: -25℃～+45℃.
14.  Protection Level of Front Panel: IP65.
15.  Accuracy Grade: III.
16.  Verification Accuracy: 0.02%.
17.  Static Weighing Accuracy: 0.2%~0.5%.
18. ABOUT OUR COMPANY
19.

Changsha SUPMETER Technological Co., Ltd., as a council member of China Weighing Instrument Association (CWIA), is a high-tech enterprise which specializes in designing and manufacturing weighing/batching controller, force measuring controller, explosion-proof controller and related system software.

Since founded in 2004, SUPMETER is persisting in doing the same thing of ‘customizing satisfied products for you and building win-win cooperation with you’ and insisting on the core idea of ‘Being Super in Meter and Being Perfect in Service’. On the quality basic of ‘Accurate Weighing, Quick and Steady Control, Standard Communication Bus and Protocol, Suitable for Industrial Environment’, SUPMETER is doing the best to meet your individual requirements and to reach the enterprise goal of ‘Outstanding Quality, Continuous Improvement, Effective Service and Customer Satisfaction’.

The products of SUPMETER have been sold to over 1000 weighing equipment manufacturers from China, Germany, USA, Canada, Australia, Russia, Ukraine, Uzbekistan, Turkey, Pakistan, India, Thailand, Vietnam, Philippines, Malaysia, Indonesia, Singapore, Sri Lanka, South Africa, Nigeria, Zimbabwe, Iran, Saudi Arabia, Jordan, United Arab Emirates, Oman, Palestine, Mexico, Brazil, Argentina, Venezuela, Honduras, Bolivia, Chile, Peru and other countries and regions. And we have built long-time relationship of technical exchange and co-development with many famous enterprises. By tracking and applying international advanced technology and combining with all kinds of typical applications from the worldwide customers, SUPMETER has developed multiple high-quality products for customers and became a famous enterprise and brand in weighing, batching and force measuring field.

We will do our best to make our development more high-efficiency, quality more superior, service more enthusiastic and price more reasonable. SUPMETER, as your faithful team of product-development and technical service, is one of your best choices.

Executing Standard & Product Certification:

• GB/T 7724-2008《Electronic Weighing Meter》PRC National Standard.
• GB/T 7724-2008《Electronic Weighing Meter》PRC National Standard.
• OMIL R76: 2006《Non-automatic Weighing Instruments》International Recommendation.
• OMIL R50: 1997《Continuous Totalizing Automatic Weighing Instruments》.
• PRC Approval Certificate No. PA2006F108-43, PA2014F108-43.
• CE Certification No. CPC16/042377, CPC16/042376.
