    24V Load Cell Display And Controller For Positive Negative Direction Peak Value Detection

    Ask Lasest Price
    Brand Name : Supmeter
    Model Number : BST106-M10[FF]
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 10000pcs per month
    Delivery Time : 3-10 working days
    • Product Details
    • Company Profile

    24V Load Cell Display And Controller For Positive Negative Direction Peak Value Detection

    1-4 Channels Force Measuring Controller For Positive&Negative Direction Peak Value Detection


    Main Features:

    • EMC design with high anti-jam for industrial environment.
    • DC24V power input with reverse polarity protection.
    • Cortex-A8 CPU with 600MHz Clock, 128M Flash.
    • 7” [800×480] or 10.2” [1024×600] TFT touch panel.
    • 24-bit ∑-△ADC with internal resolution 1/130,000.
    • High sampling frequency 3200Hz.
    • Auto Zero Tracking.
    • Positive/Negative Segmenting Span Correction.
    • Save detection results for query automatically.
    • Save real-time curve into U-disk automatically.
    • Definable DI/DO/AO/COM[Communication Port].
    • Recipe Number: 100.

    Technical Specification:

    Power SupplyDC24V±20%,Max.10w.
    DisplayHMI
    Sampling Frequency600Hz
    A/D Convert24-bit
    LANOptional Ethernet
    USB1Connect mouse, software download, data backup
    Max. Connection number of Loadcell

    16Loadcells (350Ω)

    DI7 Normally Open Switch Inputs
    DO18 Normally Open Transistor Switch Outputs
    AO4Analog Signal Output: 4~20mA.
    Operating Temperature-25℃~+45℃
    Verification Accuracy0.02%
    Batching Accuracy0.2%~0.5%

    Main Operation Interface for APP1 Single-scale Mode

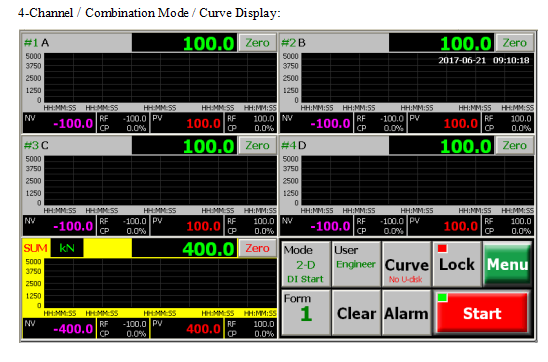

    Main Operation Interface for APP2 Four-scale Mode

    Button Operation

    NameOperationState IndicatorAuthorization

    【Start】

    【Stop】

    Start/Stop Peak Detection Process.

    Green: Running state.

    Grey: Stop state.

    All Users
    【Menu】Enter Main Menu.
    【Lock】

    Screen-locking: Locking/unlocking the operating buttons of main display interface.

    Auto Screen-locking: Refer to parameter [901].

    Flashing Red: Locked.

    Grey: Unlocked.

    【User】User Login. Display: Operator / Engineer / Admin.
    [Recipe]‘Working Recipe No.’ Setting.
    【Clear】Clear Screen.
    【Alarm】Clear Alarm.
    【Zero】Zero Fine Adjustment [No Power-down Protection].
    【Curve】‘Curve Window Property’ Setting.

    Engineer

    Administrator

    【Mode】

    ‘Working Mode’ Setting.

    Refer ‘6.3.3 Working Mode Parameters’.


    Data Display & Quick Setting

    NameDescriptionAuthorization
    Green DigitsReal-time Force Value.
    Curve WindowDisplay in Peak Detection Process: Green Real-time Force Value Curve, Red Positive Direction High/Low Limit Straight Line and Pink Negative Direction High/Low Limit Straight Line.
    【Zoom】Operation.All Users
    [#1/#2/#3/#4]Channel No..
    [A/B/C/D]Channel Name.
    [RF]Reference Value.
    [CP]

    Comparison Value.

    CP=(Real-time Force Value-Reference Value)/ Reference Value × 100%

    [HI]High Limit Value.
    [LO]Low Limit Value.
    [NV]Negative Direction Peak Value.
    [PV]Positive Direction Peak Value.
    [▲]High Limit Alarm.
    [▼]Low Limit Alarm.
    [Date&Time]Date&Time.



    1-4 Channels Force Measuring Controller For Positive&Negative Direction Peak Value Detection


    Outline Size


    Installation Mode


    Terminal Diagram
