    Mix GE Ethernet Interface Card 60W Virtual Cascade GFP-F Mode Function Path Overhead Processing

    Ask Lasest Price
    Brand Name : Fiberhome
    Model Number : FonsWeaver 780B XGI2
    Certification : ISO9001
    Price : To be negotiated
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 units
    Delivery Time : 2-4 working weeks
    • Product Details
    • Company Profile

    Mix GE Ethernet Interface Card 60W Virtual Cascade GFP-F Mode Function Path Overhead Processing

    Mix GE Ethernet Interface Card 60W Virtual Cascade GFP-F Mode Function Path Overhead Processing

    Overview


    The XGI2 card Supports the access and processing of ten GE optical / electrical interface services and one 10GE optical interface service..

    • Provides four STM-16 optical interfaces.

    • Provides ten GE optical / electrical interfaces and one 10GE optical interface. Users can select to use the GE optical module or GE electrical module as needed.

    • Supports the Layer 2 switching function to enable the cross-connect and longhaul transmission of the GE and 10GE services on the ASON platform.

    • Supports the virtual cascade and GFP-F mode.

    • Supports the AVCAT and LCAS functions.

    • Supports pointer explanation and path overhead processing.

    • Supports fault management, counts and analyzes the alarms that occur in the card, and reports the analysis result.

    • Performs the Layer 2 and Layer 3 switching functions such as dynamic address learning, VLAN, broadcast packet suppression and convergence.

    • Supports QoS and QinQ.

    • Supports hot insertion at the optical / electrical interface.

    • Supports the seamless switch between the active and standby clock and crossconnect cards.

    • Supports the remote software upgrade.

    Working Principle

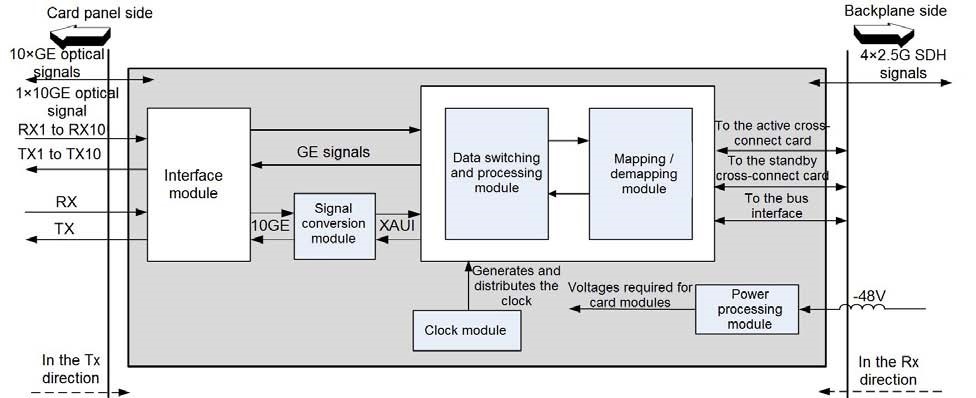

    The working principle of theXGI2 card is shown as below.

    Interface Specifications


    The 10GE Optical Interface Specifications of the XGI2 Card,

    ItemSpecification
    Optical interface type10GBASE-SR10GBASE-LR10GBASE-ER

    Transmission distance

    (km)

    		0.3104080
    Tx optical power (dBm)-7 to -1-6 to -10 to 40 to 4
    Central wavelength (nm)840 to 8601290 to 13301530 to 15651530 to 1565

    Overload optical power

    (dBm)

    		-10.5-9-7

    Receiving sensitivity

    (dBm)

    		-11-14-14-24
    Extinction ratio (dB)6699


    The GE Optical Interface Specifications of the XGI2 Card,

    ItemSpecification
    Optical interface type

    1000BASE-

    SX

    		1000BASE-LX

    1000BASE-

    VX

    1000BASE-

    ZX1

    1000BASE-

    ZX2

    Target distance (km)0.55104080100
    Source typeMLMMLMMLMSLMSLM

    Mean launched optical power

    (dBm)

    		-9.5 to 0-8 to -3-5 to 0-2 to 5-2 to 5
    Central wavelength (nm)770 to 8601270 to 13551270 to 13501500 to 15801500 to 1580
    Overload optical power (dBm)0-3-3-3-9
    Receiving sensitivity (dBm)-17-20-23-23-31
    Minimum extinction ratio (dB)99999


    The GE Electrical Interface Specifications of the XGI2 Card,

    ItemSpecification
    Module type10/100/1000Base-T
    Interface typeRJ-45
    Interface rate10/100/1000Mbit/s auto negotiation
    Transmission mediaCAT-5 twisted pair
    Standard appliedIEEE Std 802.3TM-2002
    Transmission distance100m
    Working temperature range0℃ to 70℃

    Mechanical Parameters

    ItemSpecification
    Weight (kg)1
    Panel dimensions: H×W×D (mm)368×25×210

    Power Consumption

    ItemSpecification
    Power consumption (W)60
