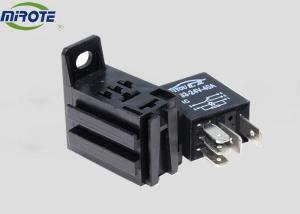

15-8574Terminals Automotive Micro Relay , Multi Use Auto Electrical
Relays 12v 40A 15-50688, 15393412, 15-80453, 19116057, 20208, 20838
OK2A1 67740, 12193606, 12177236, D7065C, 20001, 20764, 20701
15-8733 12088576 19115080 15-8579
EXPORT LOGO & DOMESTIC LOGO
When you opened this website which means we are very lucky get your
attention , your visiting is very important for us . We are the
most abundant manufacturer of relay and flasher products in China ,
competitive price .We sincerely hope to cooperate with you, an
important customer , to create higher value and future together .
1.How to choose a good relay ,
its quality mainly depends on the material and technology, choose a
silver contact point makes the working life much longer, and
machine core use pure copper wire, 30 and 87 pins use copper
material too, then the relay can be used for 5-8 years. If add one
more braided wire ,the power will be larger, so as the working life
. If need matching with the OEMs , you can choose a larger
particles of silver contact , using longer, but the price will be
higher too .Our company has been established for over ten years.
More than 100 kinds of products in our factory production , almost
contain all car relays and flasher, welcome to consult.
Zhejiang Huiyou is a factory in China for more than ten years. Its
products are sold to more than 30 countries and regions all over
the world. It has a strong technical reserve, excellent automation
production equipment and more than 100,000 products are shipped
every day. Strict quality management team, sincerely looking
forward to partners from around the world.
2.Brief Introduction
Micro Relays are a smaller version of a standard relay. As the name
would suggest, this micro relay is meant to fit into Mini ATM fuse
boxes and save space. In addition, these micro relays feature a
built-in resistor for easy use. The resistor in the micro relay
protects equipment and applications against high voltage spikes.
When needing to save space while still wanting application
protection, the Micro Relay could be great for you. Available in 12
volt and 24V DC.
3.Parameter
| Voltage Drop Between Terminals | NO . 150mV or less 10A NC . 175mV or less 10A |
| Operating Time | Max 10ms at 14V |
| Release Time | Max 10ms at 14V |
| Contact Current Rating | NO 40A 14VDC NC 30A 14VDC |
| Insulation Resistance | Between Coil and terminal 20MΩ Between Homopolar contacts 20MΩ |
| Mechanical Endurance | 1000000 times |
| Temperature | -40 to 125 ℃ |
| Weight | About 19.3g |
| Between open contacts | AC500V, 50/60 Hz 1Min |
| Between coil and contact | AC500V, 50/60 Hz 1Min |
| Endurance (operations) | |
| Mechanical (at 7,200 ops./h) | 10,000,000 |
| Electrical (at 600 ops./h) | 100,000 |
4.Excellent production equipment, more than 100,000 pieces per day,
super fast delivery speed
5.Twenty exhibitions worldwide each year
6.More than 100 products
7.Main export market
Mid east , North America , Southeast Asia , South America , Africa
...
8. Package
Nowadays, package is important, we have various packing methods for
your selection.
1)25pcs in a paper box, 500pcs in a master carton
2)1pcs in a small box , 500pcs in a master carton
You can also customize your package, as long as the quantity is
considerable.
9.Guarantee
To make you rest assured about the after-sale,we would like to
provide one-year quality guarantee.10000times life time .
10, Delivery time and Shipping
Generally, it will take 15 to 30 work days after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order.
Shipping way : By air , we send to your forwarder warehouse .
By express , door to door deliverly .
By ship , send to your agent or forwarder warehouse .
