Car GPS Tracker G17H With G-sensor BS250E And 9-90V Wide Input
Voltage
1. Specification:
| 14 | Check heartbeat data status | HBT# | |
| 15 | GPS DATA upload time interval | TIMER,T1,T2# T1=0,5～18000seconds; ACC ON time interval
T2=0,5～18000seconds ACC OFF time interval | |
| 16 | Check time interval | TIMER# | |
| 17 | Control Relay | RELAY,A#
A=0/1 0 stands for on 1 stands for off | |
| 18 | Check Relay status | RELAY# | |
| 19 | Open Vibration alert | SENALM,A,M# A=ON M=0～2 alert methods 0 stands for only GPRS 1 stands for SMS+GPRS 2 GPRS+SMS+CALL | |
| 20 | Close Vibration alert | SENALM,OFF# | |
| 21 | Check Vibration alert status | SENALM# | |
| 22 | Open power off alert | POWERALM,A,M,T1,T2,#
A=ON
M=0～2 0 stands for only GPRS 1 stands for SMS+GPRS 2 GPRS+SMS+CALL T1=2～60seconds detect power off time T2=1-3600seconds the minimum
charge time | |
| 23 | Close power off alert | POWERALM,OFF# | |
| 24 | Check power off alert status | POWERALM# | |
2. G17H GPS Tracker Function:
G17H parameters
G-sensor : BS250E
input power: 9-90V
power IC: SL3036H
GSM module: MT6261
GPS module: TD1030

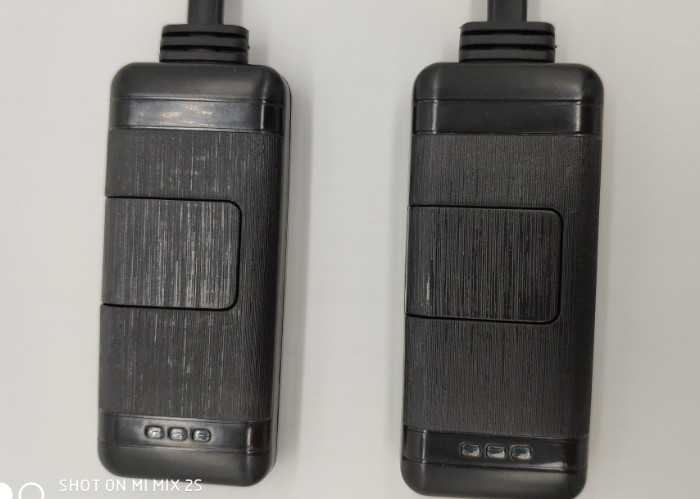

3. Product Appearance:
- Information Contents
The specific contents are determined by the protocol numbers
corresponding to different applications.
- Information Serial Number
The serial number of the first GPRS data (including status packet
and data packet such as GPS, LBS) sent after booting is ‘1’, and
the serial number of data sent later at each time will be
automatically added ‘1’.
| Type | Value |
| Login Message | 0x01 |
| Location Data | 0x12 |
| Status information | 0x13 |
| String information | 0x15 |
| Alarm data | 0x16 |
| GPS, query address information by phone number | 0x1A |
| Command information sent by the server to the terminal | 0x80 |
- Error Check
A check code may be used by the terminal or the server to
distinguish whether the received information is error or not. To
prevent errors occur during data transmission, error check is added
to against data misoperation, so as to increase the security and
efficiency of the system. The check code is generated by the
CRC-ITU checking method.
The check codes of data in the structure of the protocol, from the
Packet Length to the Information Serial Number (including “Packet
Length” and “Information Serial Number”) , are values of CRC-ITU.
CRC error occur when the received information is calculated, the
receiver will ignore and discard the data packet.
- Car GPS Tracker G17H With G-sensor BS250E And 9-90V Wide Input
Voltage
- Stop Bit
Fixed value in HEX 0x0D 0x0A.
- Details about Data Packet sent by Server to Terminal
The commonly used information packages sent by the terminal and
those sent by the server will be interpreted separately.
Login Message Packet
- Terminal Sending Data Packet to Server
The login message packet is used to be sent to the server with the
terminal ID so as to confirm the established connection is normal
or not.
| Format | Length(Byte) |
| Start Bit | 2 |
| Packet Length | 1 |
| Protocol Number | 1 |
| Information Content | N |
| Information Serial Number | 2 |
| Error Check | 2 |
| Stop Bit | 2 |
Car GPS Tracker G17H With G-sensor BS250E And 9-90V Wide Input
Voltage
Gurantee:
1. All of our product is free to use the Tracking service server in
24 hours each day
2. All of our product there is a 2 year quanlity assurance.
Product Configuration:
1. Standard configuration
1) Portable GPS Device 1 pcs
2) Power lines 1 pcs
