High Sensitivity Water Level Sensor Module For Arduino AVR ARM STM32 ST Depth of Detection

High Sensitivity Water Level Sensor Module For Arduino AVR ARM STM32 ST Depth of Detection

Quick details

Operating voltage: DC 3-5V, < 20mA
Applications :Rainfall detecting,Liquid leakage,Tank overflow detector
Judge the water level through with a series of exposed parallel wires stitch to measure the water droplet/water size .

Introduction

This module with small size and high cost-effective is easy to use.In this article, we will use the digital storage oscilloscope to show you how the output voltage change with the immersion depth.What's more,we will show you an interesting actual application case.You will have a clear idea of how this module to realize the function of water level alarm.

This module is designed mainly for the DIY hobbyist and provide them a low-cost and easy-to-use water level detection scheme.The stability and durability of this module can not reach the industrial standard.But we use the high-quality PCB board to improve its stability and durability.If you just want to DIY for fun, this module will be a good choice.

Features: Simple ,Easy to use,Small size,Light, High Cost-Effective

Applicable Occasion:Water level alarm design

Parameters

Name:Water Level Sensor
Power:+3.0V -5.5V
Signal Type:Analog signal
Connector: XH2.54 × 3
Pin :S-Signal,V-Power,G-Ground
Instructions for use: The water level can be known by judging the output bit analog quantity.

Functional Introduction:

Functional Test

• Testing environment:barreled pure water
• Testing procedures:
• Connect the module to 5V power supply
• Put the module to into the pure water
• Observe the connection depth between the immersion depth and the output voltage of AO end.

Actual testing results

Actual application case

Use this water level sensor module to control on or off about the LED which is on the arduino board

Tools:

• arduino uno
• Pin Header
• Dupont Cable

When the immersion depth of the module does not reach the setting value,LED on P13 of arduino board is not bright.

How to use a water level sensor module with Arduino

Continuing with sensors that can be used in aquaponics, hydroponics systems or automatic outdoor plant care, we will explain how to use a water level sensor to control the amount of water we have in a tank. The same sensor can also be used to detect if it is raining.

Specifications

This sensor is supplied to 5V or 3.3V on VCC and GND pins. The pin S will give us an analog value between VCC and GND. So we will use the S pin as analog input connecting Arduino, the value read will be higher depending on the sensor surface is covered with water. This is because the water acts as a conductor, given that the water we use in our deposits not be pure water (H2O), since if water is nonconductive. But rarely we will use this type of sensors to measure the water level in a tank of pure water.

Use as a level in a tank

To use it as level detector in a deposit have to install the sensor on the inside of the tank at the level where we want to control the water level. The sensor must be positioned so that parallel lines are perpendicular to the sensor water level. The pin S will give us a greater value as the sensor is immersed.

Use as rain detector

To detect whether it is raining with this sensor have to position it horizontally so that rain falling on the sensor, as raindrops fall on the sensor film of water on the surface will be formed by increasing the value of the pin S, this how we can deduce if it is raining.

Code

In both cases we can use the same code, because it simply will be responsible for reading the analog value of S. pin up to us to interpret the measures we are taking.

Notice

(1) did not carefully read the instructions before you do not give the driver board is powered !
Avoid faulty wiring caused permanent damage to the drive plate .
(2 )Please carefully check pin function , attention condensed identifier , correct wiring ! Do not
reverse the power cord , resulting in electronic devices burned.

Uchi was established in 2006 in Dongguan, China.

After years of development, Uchi has become a large scale hi-tech enterprise that specialized in development and production of complete series of MOV,PTC, NTC series, PPTC series, Fuse(ALL TYPE),Resistor、integrated circuit 、 Capacitor, surge protector and protective devices of lightning protection products. It ranks front in the industry and has heartquarter in Hong Kong. With its excellent technology and quality products, Uchi has won wide recognition of overseas customers. Saini Impex PVT.LTD is our authorized sole distributor in india .

China's leading enterprise of circuit protection components​

Our strength ：

A large number of product series in our factory have passed the certification of various international standards




Factory Tour​ ：

Advanced equipment, lean production

Uchi boasts with a production base that covers an area of nearly 15000 square meters.


We successively imported high-tech fully automated production equipments and high precision testing instruments and have put into production to realize the automation, large scale and standardization.

Uchi has a galaxy of hi-tech talent teams headed up by national class experts to engage in the work of product development, product quality control, sales andservice technical support, etc., and has successively obtained tens of certificates of appearance patents, utility patents and inventions.


To guarantee the quality, we successfully passed the certification of ISO9001:2008 quality management system, scientific and efficient managing mode to carry out lean production and form scientific and efficient quality control system. The products are certified with UL, CUL, TUV, VDE, CSA and SGS, RACH 73 environmentally friendly testing certifications.

Exquisite quality at customers' favor

Uchi is an export membership of Alibaba with free import and export rights. It is appraised as Guangdong Famous Star Enterprise and Dongguan Private Enterprise. Our products have doubled and redoubled to provide more kinds and high quality and reliable products and service. Our products mainly consist of:

Metal Oxide Varistor
DIP Varistor & SMD Varistor
Thermally Protected Varistor

DC-Link Capacitor for New energy vehicles supporting the HEVEV

Automotive Fuse Links for EV Plugin HEV FCEV
PTC Thermistor

NTC Thermistor

PPTC Resettable Fuse

Thermal Fuse

Auto Blade Fuse

Glass Fuses

Metal Film Resistor

Carbon Film Resistor

Cement Resistor

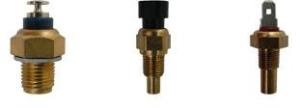

NTC Temperature Sensor
