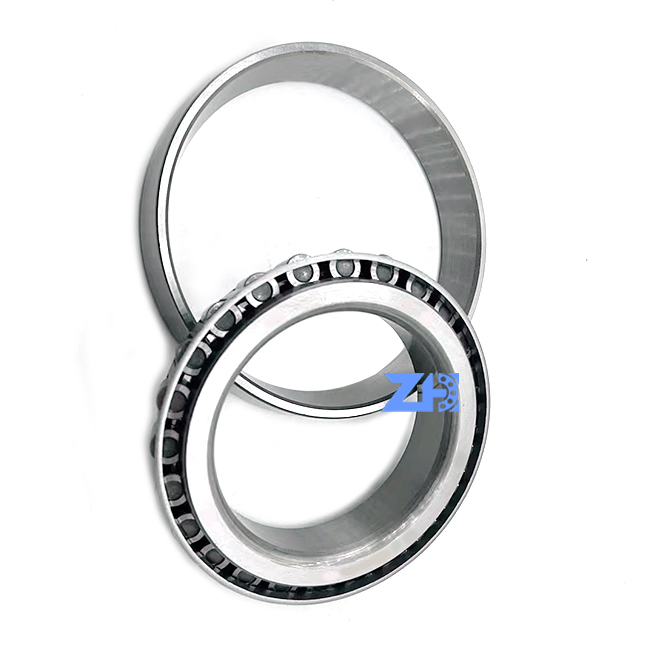

34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes

    Buy cheap 34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes from wholesalers

    Buy cheap 34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes from wholesalers
    • Buy cheap 34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes from wholesalers
    • Buy cheap 34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes from wholesalers
    • Buy cheap 34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes from wholesalers
    • Buy cheap 34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes from wholesalers

    34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes

    Ask Lasest Price
    Brand Name : ZH
    Model Number : 34306/34478
    Price : Based on your qty
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 1000 pcs per month
    • Product Details
    • Company Profile

    34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes

    34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes


    Quick Details
    Product Name34306/34478
    size77.788*121.442*24.608mm
    Number Of Rowsingle column
    MOQ1 PC
    Price termsFOB / EXW / CIF
    Payment TermsT / T, L / C, Western Union, Paypal
    Delivery TimeAbout 5 - 8 working days after payment is received
    Shipping methodsBy Sea, Air or DHL / FEDEX / TNT / EMS

    SF2812VPX1180BA-2256SF4007PX1SF4815VPX1
    140BA-18BA246-2SF4007PX1240BA32S1/SF4860
    SF3240R25/26SF4019PX1SF4852PX1
    HS05154R25/26BA200-6A(SF4021)BA245-2
    BA135-6(135BA170)SF3240SF3227PX1/SF3215245BA35
    BD155-6BA195-3165BA210/AC3321BA246-1SA

    Dimensions

    d - Bore

    3.0625 in77.788 mm

    D - Cup Outer Diameter

    4.7812 in121.442 mm

    B - Cone Width

    0.9060 in23.012 mm

    C - Cup Width

    0.6875 in17.463 mm

    T - Bearing Width

    0.9688 in24.608 mm

    Abutment and Fillet Dimensions

    R - Cone Backface "To Clear" Radius10.14 in3.600 mm
    r - Cup Backface "To Clear" Radius20.08 in2.03 mm

    da - Cone Frontface Backing Diameter

    3.31 in84 mm

    db - Cone Backface Backing Diameter

    3.58 in91 mm

    Da - Cup Frontface Backing Diameter

    4.60 in116.10 mm

    Db - Cup Backface Backing Diameter

    4.33 in109.98 mm

    Ab - Cage-Cone Frontface Clearance

    0.1 in2.5 mm

    Aa - Cage-Cone Backface Clearance

    0.09 in2.3 mm
    a - Effective Center Location30.06 in1.5 mm


    About us:


    We have our own factory special for bearing, and also good supply of all other excavator parts.

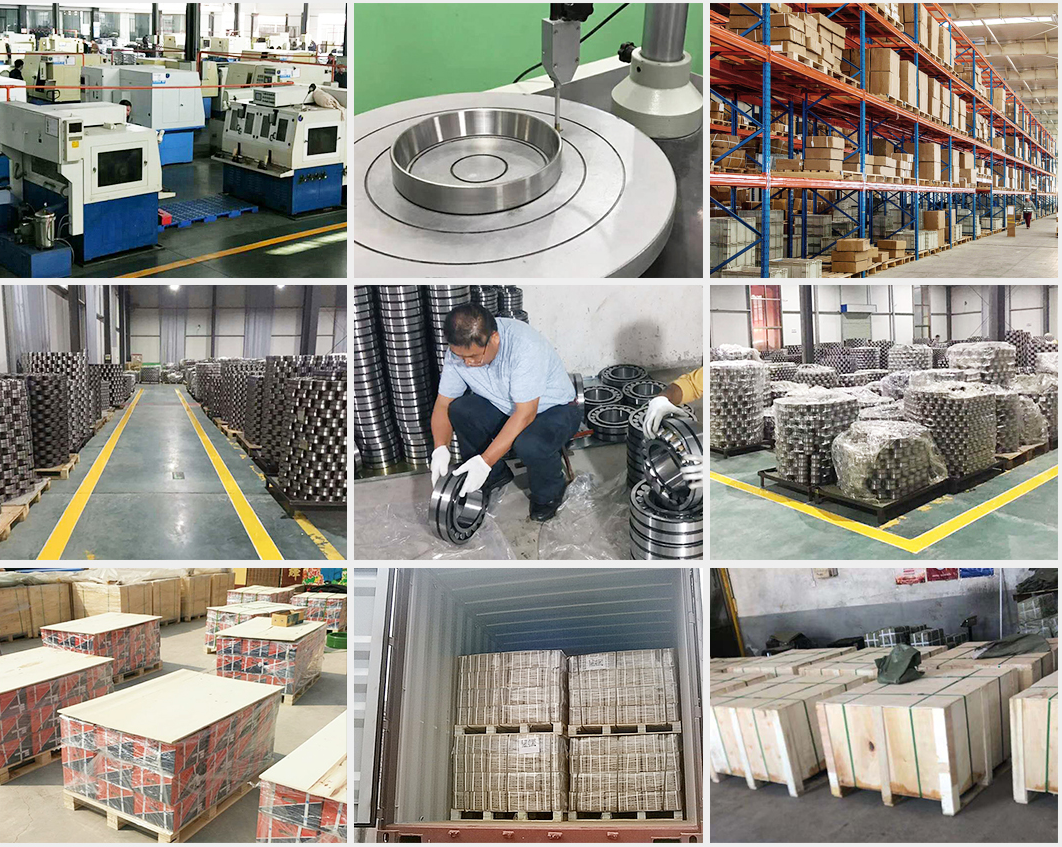

    ZhongHong bearing co., LTD. was established in 2004, with office in TianHe District Guangzhou city and factory in shandong province.
    we are a company in combination of bearing Research & Development (R&D) ,Manufacturing and Import & Export. 70% of our products are exported to Europe, South America, Middle East, India and more than 10 countries in southeast Asia.
    We adhere to the concepts of People-oriented and Quality first, focus on the standardization of production, and strict control of each process, striving to supply our clients with the best and most complete product lines, in preferential price and high efficiency, to meet all your demands.
    In order to continuously improve the overall quality of staff and technical qualifiexcavatorions, we invested a lot in the technology and equipment modifiexcavatorion, purchased a large amount of high precision bearing manufacturing equipment and testing instruments. For example the high - precision machining production line, isothermal spherifiexcavatorion annealing furnace, salt bath quenching furnace and precision roll production line, all are equipped with complete inspection equipment.
    Besides, we strictly follow the ISO/TS16949 quality management system.
    Welcome friends from all over the world to visit and negotiate for cooperation.
