IEC60068-2-75 IK10 Pendulum Impact Test Equipment for 20J Impact
Test
1. Introduction:
This device is designed according to IEC60068-2-75 and IEC62262,
and can meet the test requirements of IEC60598, EN50102,
GB2423.55-2006, GB20138-2006 and etc. It is apply to sheet metal
for mechanical impact testing. The device can be adjusted back and
forward, left and right, and the angle also can be adjusted.
2. Specification
1) Angle: 0~900 adjustable
2) Length of swing rod: 1000mm
3) Impact hammers: 0.5kg, 1.7kg, 5kg, 5kg steel hammers with swing
rods
4) Impact height: 200~1200mm adjustable
5) Impact energy: 2J, 5J, 10J, 20J
3. Note:
The standard configuration includes 0.5kg, 1.7kg and 5kg hammers
for IK 07 to IK10 testing, 10KG hammer for 50J test is a optional
device.
| Characteristics 0f Striking Elements |
| Energy/J | ≤1 ±10% | 2 ±5% | 5 ±5% | 10 ±5% | 20 ±5% | 50 ±5% |
| Equivalent mass±2%kg | 0.25(0.2) | 0.5 | 1.7 | 5 | 5 | 10 |
| Material | Nylon | steel |
| R/mm | 10 | 25 | 25 | 50 | 50 | 50 |
| D/mm | 18.5(20) | 35 | 60 | 80 | 100 | 125 |
| f/mm | 6.2(10) | 7 | 10 | 20 | 20 | 25 |
| r/mm | - | - | 6 | - | 10 | 17 |
| l/mm | Depends |
| Fall Height |
|---|
| Energy/J | 0.14 | 0.2 | (0.3) | 0.35 | (0.4) | 0.5 | 0.7 | 1 | 2 | 5 | 10 | 20 | 50 |
| Equivalent mass/kg | 0.25 | (0.2) | 0.25 | (0.2) | 0.25 | (0.2) | (0.2) | 0.25 | 0.25 | 0 .25 | 0.5 | 1.7 | 5 | 5 | 10 |
| Fall height±1%mm | 56 | (100) | 80 | (150) | 140 | (200) | (250) | 200 | 280 | 400 | 400 | 300 | 200 | 400 | 500 |
4. Degrees of protection against external mechanical impacts
| IK01 | IK02 | IK03 | IK04 | IK05 | IK06 | IK07 | IK08 | IK09 | IK10 |
| 0.14J | 0.2J | 0.35J | 0.5J | 0.7J | 1J | 2J | 5J | 10J | 20J |

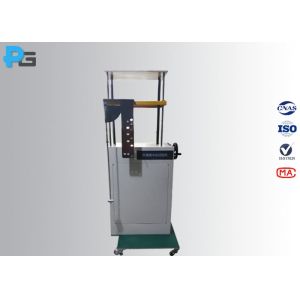

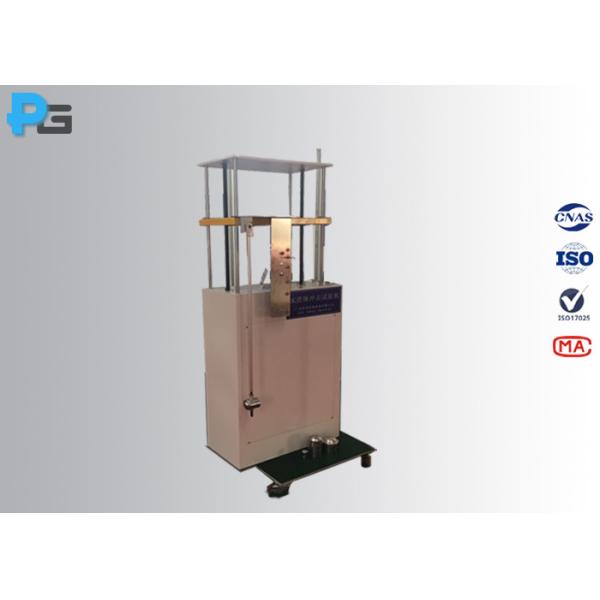

5. Picture:
