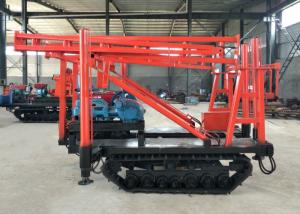

    Red Track Mounted Drill Rig , Crawler Drill Machine XY-1A For Water Well

    Ask Lasest Price
    Model Number : XY-1A
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, T/T, Western Union
    Supply Ability : 2000Set/Year
    Delivery Time : Within 7-12 days
    Brand Name : ShiTan
    • Product Details
    • Company Profile

    Red Track Mounted Drill Rig , Crawler Drill Machine XY-1A For Water Well

    Red Track Mounted Drill Rig , Crawler Drill Machine XY-1A For Water Well


    XY-1A core drilling machine is a light type core drill rig at high speed with hydraulic feeding. XY-1A(YJ) , XY-1A-4 and XY-1A-4(YJ) are designed on the basis of XY-1A


    1. With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
    2. The rig is equipped with an upper spherical jaw holding mechanism and hexagonal Kelly, which can be replaced without shutdown, high efficiency, safe and reliable.
    3. A hole bottom pressure gauge is mounted indicating the pressure in order to control the status inside the hole.
    4. Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.


    Technical parameters

    ContentParameterContentParameter
    DrillHoist
    Drilling depth100, 180mMax. Lifting Capacity (single rope)15KN
    Initial hole dia.150mmLifting Rotating Speed36, 76, 121r/min
    Final hole dia.75, 46mmHoisting Drum Linear Velocity (2 Levels)10, 20, 44, 88m/min
    Drill rod dia.42, 43mmDrum Dia.140mm
    Angle range90º~75ºWire Rope Dia.9.3mm
    Dimensions (L×W×H)1620×970×1560(mm)Wire Rope Capability35m
    Weight (Without Power Unit)620kgBrake Dia.252mm
    Stroke350mmBrake Belt Width50mm
    Swivel HeadOil Pump
    Spindle Speed(5-Speed)140, 295, 470, 790, 1010 (r/min)ModelYBC-12/125
    Spindle Stroke450mmRated Presure12.5MPa
    Spindle Pull-down max.15KNDisplacement8ml/r
    Spindle Lifting Capacity max.25KNRated Speed800~2500r/min
    Upward Displacement Speed of Idling Vertical Spindle3m/minPower (Diesel Engine or Motor)
    Downward Displacement Speed of Idling Vertical Spindle4m/minModel (Diesel Engine)ZS1100
    Rated Power12.1KW
    Rated Speed2200r/min
    Model (Motor)Y160M-4
    Rated Power11KW
    Rated Speed1460r/min
