    Stringing Equipment Hydraulic Cable Tensioner Cummins Engine Groove number 2x5

    Ask Lasest Price
    Brand Name : BOYU
    Model Number : TY2x40
    Certification : ISO
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 15~25 days
    Price : negotiable
    • Product Details
    • Company Profile

    Stringing Equipment Hydraulic Cable Tensioner Cummins Engine Groove number 2x5

    Stringing Equipment Hydraulic Cable Tensioner Cummins Engine Groove number 2x5

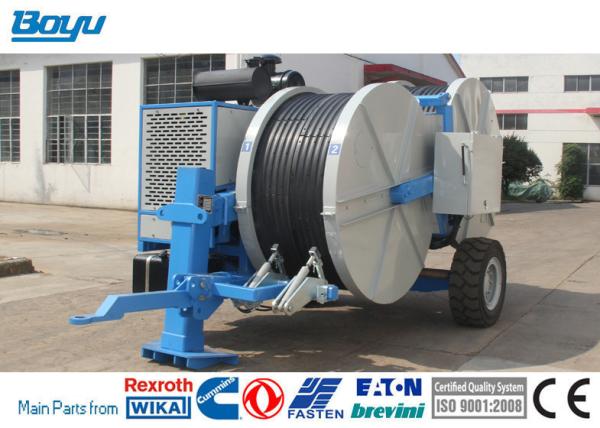

    TY2x40 Hydraulic Tensioner

    The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains


    Characteristics

    Bull-wheel diameter: 1300/1500mm

    Max conductor diameter: 40mm

    Groove number: 2x5

    Total weight: 5800kg

    Overall dimension (length*width*height): 4300×2250×2700mm
    Performance

    Max intermittent pull: 2x45kN

    Max continuous pull: 2x40kN

    Speed at max pull: 2.5km/h

    Max speed: 5km/h

    Pull at max speed: 2x20kN

    Max reverse pulling force: 2x35kN

    Max reverse pulling speed: 5km/h
    Main configuration

    Engine: Cummins

    Hydraulic pump: German Rexroth/Dnish Danfoss

    Main motor:German Rexroth/French Leduc

    Speed reducer: German Rexroth

    Hydraulic meter: German

    Operating handle: German Rexroth
    Engine

    Diesel 77kw(103hp)

    Cooling system water

    Electrical system 24V
    Hydraulic Transmission

    The machine can realize step less speed.

    The machine is provided with tension presetting system.
    Main configuration

    Engine: Cummins

    Hydraulic pump: German Rexroth/Dnish Danfoss

    Main motor:German Rexroth/French Leduc

    Speed reducer: German Rexroth

    Hydraulic meter: German

    Operating handle: German Rexroth
    Additional Devices

    Lighting system for the trailer

    2 hydraulic rope/conductor clamp(extra charge)

    Swivel guide rope roller

    Trailer for towing at max speed of 30 km/h

    Digital speed and meter counter
    Configuration

    Hydraulic dynamometers

    Hydraulic oil cooling system

    Digital speed and meter counter

    Hydraulic front stabilizer

    Grounding connection point

    Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor


    ModelBull-wheel diameterMax conductor diameterTotal weightOverall damension
    mmmmkgmm
    TY1X7.51100248502300*1250*1620
    TY1X2013004019204080*1930*2300
    TY1X20II800239502400*1500*1650
    TY1X20III80022.511502500*1500*1700
    TY1X3013004020643700*1950*2150
    TY1X4013004034304000*2000*2300
    TY140IV150040100005500*2280*2700
    TY2X3513004045004300*2250*2700
    TY2X401300/15004062304300*2250*2700
    TY2X7017004075004700*2300*2700
    TY2x70IV150040100005500*2280*2700
    TY2X9019005075005400*2300*2700
    ModelBull-wheel diameterMax conductor diameterMax optical fiber cable diameterGroove widthGroove numberTotal weightOverall damension
    mmmmmmmmkgmm
    TY1X7.51100242122018502300*1250*1620
    TY1X201300402155519204080*1930*2300
    TY1X20II800234559502400*1500*1650
    TY1X20III80022.555511502500*1500*1700
    TY1X301300402160520643700*1950*2150
    TY1X401300402155534304000*2000*2300
    TY1X501300/1500552168624004000*1900*2300
    TY140IV15004016100005500*2280*2700
    TY2X351300402x545004300*2250*2700
    TY2X401300/1500402x562304300*2250*2700
    TY2X501300/1500402x560004700*2300*2700
    TY2X701700402x675004700*2300*2700
    TY2x70IV1500402x8100005500*2280*2700
    TY2X901900502x675005400*2300*2700
    TY4x501500404x5130005900*2300*2700
