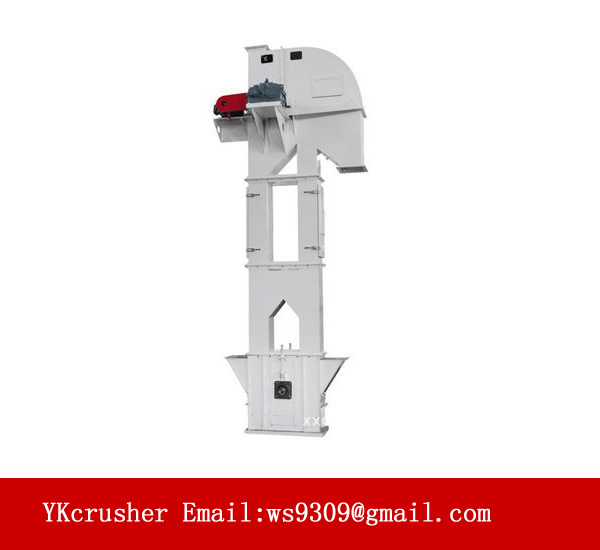

Bucket Elevator Conveyor Vertical Transmission Easy Operation Less
Maintenance
Bucket elevator is suitable for vertical transmission of powder,
granular and small-block and less abrasive bulk materials, which
has a small requirement for the types of materials, characteristics
and block degrees; it can raise powder, granular and bulk
materials, and abrasive materials such as grain, coal, cement,
crushed ore, etc; it also can raise high temperature products that
below 250 ℃with the max height of 40m.
Advantages of Bucket Elevator
Advanced design principles to ensure the operation reliability.
Easy operation, less maintenance, less wearing parts, low cost of
using; good sealing, less pollution and smaller mechanical size
comparing with other same raising amount equipments. TD-type is
designed and made according to JB3926-85 "Vertical bucket elevator"
standard; comparing with the traditional D-type bucket elevator, it
has the advantage of high efficient transmission, diversified type
of hopper, and should take the priority in usage.
Product Description
Bucket elevator is suitable for vertical transmission of powder,
granular and small-block and less abrasive bulk materials, which
has a small requirement for the types of materials, characteristics
and block degrees; it can raise powder, granular and bulk
materials, and abrasive materials such as grain, coal, cement,
crushed ore, etc; it also can raise high temperature products that
below 250 ℃with the max height of 40m.
Advantages of Bucket Elevator
Advanced design principles to ensure the operation reliability.
Easy operation, less maintenance, less wearing parts, low cost of
using; good sealing, less pollution and smaller mechanical size
comparing with other same raising amount equipments. TD-type is
designed and made according to JB3926-85 "Vertical bucket elevator"
standard; comparing with the traditional D-type bucket elevator, it
has the advantage of high efficient transmission, diversified type
of hopper, and should take the priority in usage.
Technical Parameters
| Model | Type | Capacity (m3/h) | Hopper | material max size (mm) | lifting height (m) |
| Deep hopper | Shallow hopper | Volume(L) | space (mm) | width (mm) | speed (m/s) |
| Deep hopper | Shallow hopper |
| D160 | Rubber | 8 | 3.1 | 1.1 | 0.65 | 300 | 160 | 1.0 | 25 | 4.82-30.02 |
| D250 | Rubber | 21.6 | 11.8 | 3.2 | 2.6 | 400 | 250 | 1.25 | 35 | 4.48-30.08 |
| D350 | Rubber | 42 | 25 | 7.8 | 7 | 500 | 350 | 1.25 | 45 | 4.3-30.3 |
| D450 | Rubber | 69.6 | 48 | 15 | 14.5 | 640 | 450 | 1.25 | 55 | 4.54-34 |
| HL300 | Loop chain centrifugate | 28 | 16 | 5.2 | 4.4 | 500 | 300 | 1.25 | 40 | 4.66-30.16 |
| HL400 | Loop chain centrifugate | 47.2 | 30 | 10.5 | 10 | 600 | 400 | 1.25 | 50 | 4.52-30.32 |
| PL350 | Plate chain gravity | 50 | 59 | 10.2 | 10.2 | 250 | 350 | 0.4 | 110 | 4-30 |
| PL450 | Plate chain gravity | 85 | 100 | 22.4 | 22.4 | 320 | 450 | 0.4 | 150 | 5.12-30.08
|
