100-3000A 50/60Hz Clamp-on Current Transformer Current Transformer / Open type CY-QCT01

1.Product Introduction:

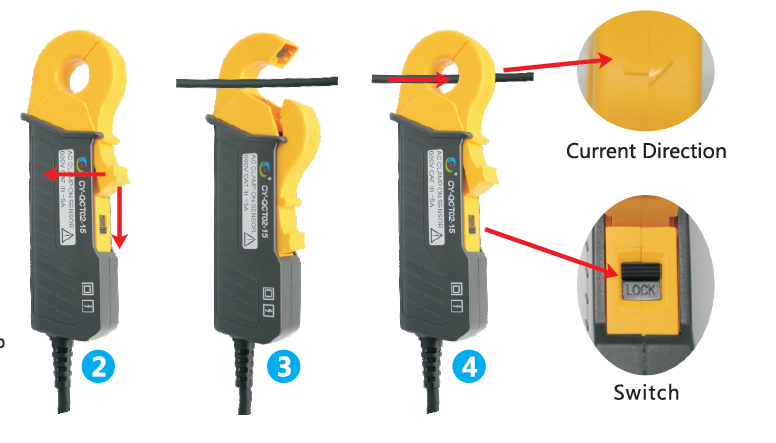

The "QCT02-15 Clamp-on Current Transformer" is designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables. The sensing head uses sliding push-fit clamp structure, safety isolation to avoid the user to contact with charged objects directly. It complies with CE standards and meets 300V CAT III safety class.

Feature:

1. Flexible and light weights, exquisite appearance
2. Easy &quick installation in tight spaces
3. Excellent linearity
4. Maximum measuring current up to 130A

Application:

1. Power quality monitoring
2. CT secondary current detection
3. Smart logger
4. Distributed measurement systems

General Data:

1. Operating temperature & humidity: 0 to 500C(32-1220F),580%RH(No condensate)
2. Storage temperature & humidity: -10 to 600C(14-1400F), 580%RH(No condensate)
3. Operating environment: Indoor, altitude up to 2000 meters
4. Standards Safety: IEC61010-1:2001,300V CAT III

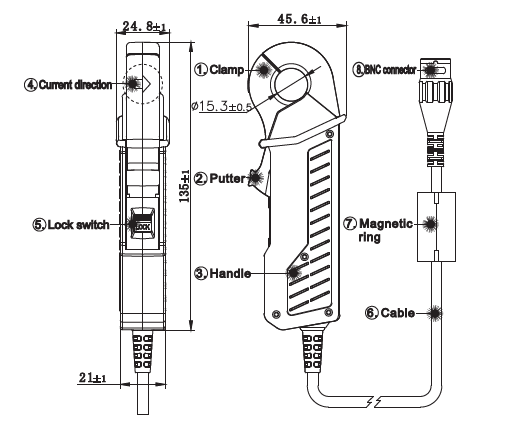

Dimension:

Company information:

Shenzhen Chuangyin Co., Ltd has three manufacturing bases ,they are Jiangxi Chuangyin Co.,Ltd, Zhuhai Chuangyin Co.,Ltd and Joint-Venture Adex-Chuangyin Electric Co.,Ltd(Bangladesh); with 40,000 square meters of modern standard workshop and a number of first-class production line and test equipments, by many years’ experience for three dedicated engineering teams, the annual output of medium &low current transformer and voltage transformer is more than 36000 sets and CT, relay is more than 25 million pcs.

Since established in 2002,Chuanyin has been operating international management system and viewing quality as our life, the pass rate of products is always 99.9999%.we also have established a strict quality control system from material to whole process control. Factories and products have passed ISO9001:2015, ISO 14001：2015， ISO 45001:2018 UL, CQC, CE, KEMA CNAS certificates.

ISO 9001-2015 COMPLETA.pdf

Chuangyin’s product is well known with high accuracy, good stability, high efficiency, reasonable price and on-time delivery. With strong R&D strength and first-class product, good reputation has been gotten from domestic and oversea market. Customers are throughout more than 30 countries in the word. Chuangyin has become the one of largest and professional manufacturer of CT,PT and relay in China.
