    Busbar Type Epoxy Resin LV Current Transformer AC 1A 5A Current Transformer

    Ask Lasest Price
    Brand Name : Chuangyin
    Model Number : LMZW4(5)-0.72
    Certification : Test Report
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 36,000,00pcs per year
    Delivery Time : Within 7 days
    • Product Details
    • Company Profile

    Busbar Type Epoxy Resin LV Current Transformer AC 1A 5A Current Transformer


    Outdoor Current Transformer LMZW3-0.72 Epoxy Resin AC 5A /1A


    1. Introduction:


    The current transformer is busbar type casting insulated outdoor type product. It is used for measuring current, electricity power and relay protection in the AC line or rated frequency 50Hz or 60Hz, rated voltage 600V and below.

    The current transformer can be executed according to the standard IEC 61869-1:2007 and IEC 61869-2:2012. Or IEC60044-1


    Technical Data

    Rated insulation level: 0.72/3/10kV

    Rated primary current: up to 1500A

    Rated secondary current: 5A or 1A

    Installation Altitude : 2000m


    ModelRated primary current(A)

    Window size

    (mm)

    Rated output(A)Accuracy Class
    LMZW4-0.72200Φ7550.5
    300Φ7550.5
    400Φ7550.5
    500Φ7550.5
    600Φ7550.5

    ModelRated primary current(A)

    Window size

    (mm)

    Rated output(A)Accuracy Class
    LMZW5-0.72400Φ10050.5
    500Φ10050.5
    600Φ10050.5
    800Φ10050.5
    1000Φ10050.5
    1200Φ10050.5
    1500Φ10050.5

    Note: double ratio optional

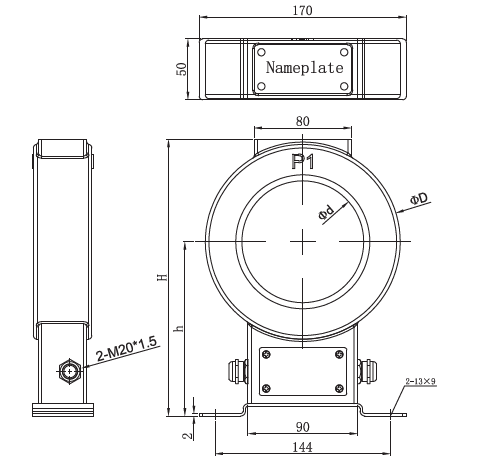

    4. Outline Drawing:
