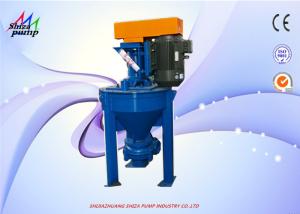

    Flotation Area Froth Pump , Vertical Mineral Processing Coal Mine Foam Transfer Pump

    Ask Lasest Price
    Brand Name : SHIZA
    Model Number : AF
    Certification : CE sgs
    Price : based on quantity
    Payment Terms : L/C, T/T
    Delivery Time : 15days
    Supply Ability : 2000sets monthly
    • Product Details
    • Company Profile

    Flotation Area Froth Pump , Vertical Mineral Processing Coal Mine Foam Transfer Pump

    Flotation Area Froth Pump , Vertical Mineral Processing Coal Mine Foam Transfer Pump

    Product overview


    Froth pump is suitable for transporting slurry with froth, especially for flotation processing .It can eliminate the froth or foam in the running slurry and work normally even if the feeding slurry is not enough.The pump wet parts are made of Ni-hard and high chromium wear-resistant alloy materials. Funnel charging box is of steel structure. It can be lined according to different kinds of material.


    The discharge direction of pump can be oriented at intervals of 45°.This series of rubber lined froth pump adopts double-casing structure, with stable performance, high efficiency; wear resistance, and great interchangeability of components. The materials of liner and impeller can adopt anti-wear metal or rubber.


    Features


    1.AF series is suitable for transporting slurry with froth,especially for flotation processing.
    2.AF series can eliminate the froth in the running slurry and work normally even if the feeding slurry is not enough.
    3.The feeding suction in the tangent line can accelerate slurry transporting and eliminate part of the forth .
    4.The belt and pulley are easy to be altered in order to change the speed according to the working condition.
    5.Interchangeable wet parts are made of special alloy,rubber or other wear-resistant materials according to slurry properties.

    Usage


    1. AF Froth Pump is a heavy duty pump designed to handle difficult tenacious froth.

    Widely used in metallurgy, mining, coal, chemical, power plants, environmental protection, municipal

    engineering and other industries.


    2. The pump can effectively eliminate the slurry bubble when at work, still can be working in the incoming

    insufficient, especially for a variety of flotation process, it is the ideal product for delivering various

    difficult frothy slurry.


    AF froth pump material list for parts


    VOLUTEIMPELLERSBASEEXPELLEREXPELLER RINGSHAFT SLEEVESEALS
    StandardHigh Chrome AlloyHigh Chrome AlloyCast IronChrome AlloyChrome AlloySG IronNatural Rubber
    oror
    SG IronSG Iron
    OptionsSG IronSG IronMild SteelSG IronSG IronEN56CNordel
    FerraliumNeoprene
    Hasteloy CViton
    CeramicButyl
    StelliteEPDM
    Chrome Oxide

    Performance table for froth pump


    Pump ModelCapacity (m3/h)Head (m)Speed (r/min)Eff. (%)Installed with power(kw)Diameter
    Inlet(mm)Outlet(mm)
    2QV-AF7.6-42.86-29.5800-1800451510050
    3QV-AF23-77.45-28700-15005518.515075
    4RV-AF33-187.25-28500-10505537150100
    6SV-AF80-3935-28250-6805575200150
    8SV-AF126-5755.8-25.5350-65055110250200
