    Commercial Auto Range Digital Multimeter With Relative Sound Level Meter Function

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM8229
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Commercial Auto Range Digital Multimeter With Relative Sound Level Meter Function

    Multi - functional Digital Multi - Meter With Relative Sound Level Meter Function


    English User Manual:https://drive.google.com/open?id=1ljOAGGEPd_lT6xwQYJyYhgGdm4GcmeGR


    Features of Multi-function Digital Multimeter


    • Manual and Automatic Range
    • Relative Value Measurement
    • Noise, Illumination, Diode, Continuity test
    • Thermocouple temperature measurement
    • Measure AC&DC Voltage, Frequency, Duty, AC & DC Current, Resistance

    SpecificationsRangeAccuracy
    DC Voltage60mV/600mV/6V/60V/600V/1000V±(0.7%+2)
    AC Voltage60mV/600mV/6V/60V±(0.8%+3)
    600V±(1.0%+3)
    DC Current600μA/6000μA/60mA/600mA/6A±(1.2%+3)
    10A±(2.0%+10)
    AC Current600μA/6000μA/60mA/600mA/6A±(1.5%+3)
    10A±(3.0%+10)
    Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ±(1.2%+5)
    60MΩ±(2.0%+5)
    Capacitance10nF/100nF/1000nF/10uF/100uF/1000uF/10mF±(3.0%+3)
    Frequency9.999Hz/99.99Hz/999.9Hz/9.999kHz/
    99.99kHz/999.9kHz/9.999MHz
    ±(1.0%+5)
    Noise40-100dB±3.5%dB at 94dB
    Illumination (Lux)4000/40000(5.0%+10)
    Humidity20-95%±5.0%RH
    Ambient Temperature0℃~40℃±2℃
    32℉~104℉±4℉
    Temperature Measurement with Thermocouple-20℃~0℃±5.0%
    0℃~400℃±1.0%
    400℃~1000℃±2.0%
    -4℉~32℉±5.0%
    32℉~752℉±1.0%
    752℉~1832℉±2.0%
    Feature
    Display6000 Counts
    Diode
    Continuity
    Illumination (Lux)
    Humidity
    Time
    Data Storage
    Back Light
    Manual and Automatic Range
    MAX/MIN/REL
    Data Hold
    General
    Power Supply4*1.5V AA Batteries
    Size204mm*94mm*57mm
    Weightabout 410g
    Safety RatingEN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 1000V

    Product Description of Multi-function Digital Multimeter

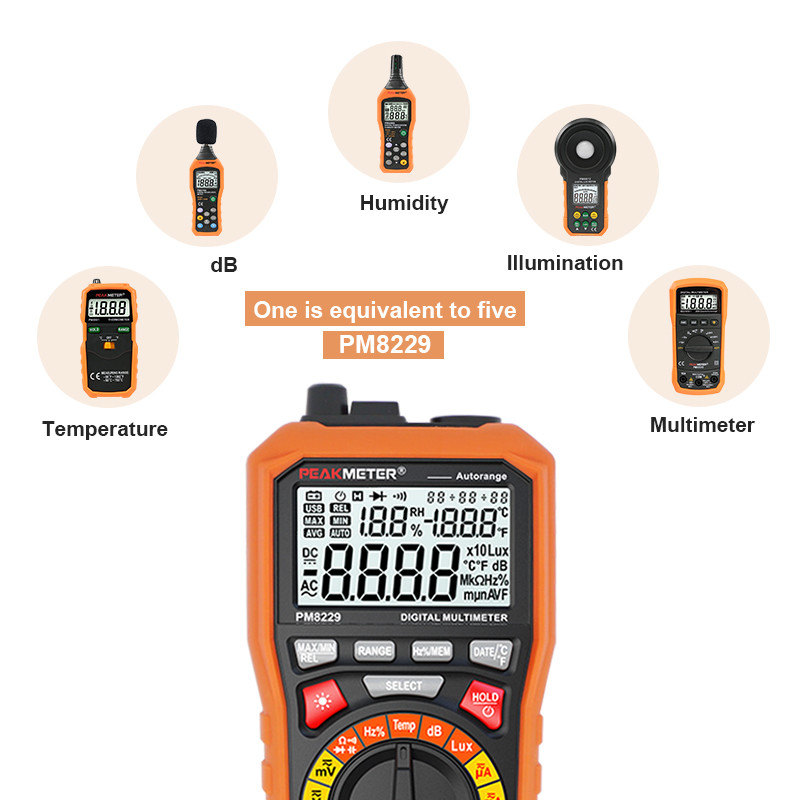

    PM8229 is a 6000 count automatic range multimeter and integrated environment meter. It has the function of measuring Voltage, Current, Frequency, Duty Ratio, Resistance, Diode and Capacitance. It can also measurement Temperature, Sound Level and Illumination level Test.


    • Convenient Exchange brings your measurement more accurate.
    • Manual and Automatic Range.
    • Large LCD screen with Backlight can help the user see the data clearly even in the night.
    • Auto Power-Off function, if there are no operations within 15 minutes as of the instrument is turned on, the instrument will automatically enter into sleep state.
    • Relative value measurement function, In this mode, the instrument display value = actual value-set reference value.

    Detailed Images of Multi-function Digital Multimeter



    Our Target


    We aim to produce intelligent instruments, provide high quality services, and become an innovative manufacturer.


    R&D Team


    Our R&D team have over 20 years R&D experience in instrument industry .


    Mission


    Our mission is to get our work done well to become customer’s reliable business friend. S.E.Q( Service , Economic pricing , Quality ) is our concern , we know what you need ,and we know what we have .
