AC / DC Digital Clamp Meter 6000 Counts With Double Mold Ture RMS Display

    Buy cheap AC / DC Digital Clamp Meter 6000 Counts With Double Mold Ture RMS Display from wholesalers

    Buy cheap AC / DC Digital Clamp Meter 6000 Counts With Double Mold Ture RMS Display from wholesalers
    • Buy cheap AC / DC Digital Clamp Meter 6000 Counts With Double Mold Ture RMS Display from wholesalers
    • Buy cheap AC / DC Digital Clamp Meter 6000 Counts With Double Mold Ture RMS Display from wholesalers

    AC / DC Digital Clamp Meter 6000 Counts With Double Mold Ture RMS Display

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM2108
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    AC / DC Digital Clamp Meter 6000 Counts With Double Mold Ture RMS Display

    AC/DC Digital Clamp Meter With Double Mold Ture RMS Display And Inrush Current Measurement


    English User Manual:https://drive.google.com/open?id=1QPfuMB8L6i2Pvo4zQOOKwclPAJrWRvPp

    Features of AC Digital Clamp Meter


    • Overrange protection is provided for all ranges
    • Display: 6000 counts with analog bar LCD display
    • Maximum value display: 6000 digits
    • Auto Power off time: 15 minutes

    SpecificationRangeAccuracy
    AC Current60A/600A±(2.5%+5)
    Inrush Current60A/600A±(10.0%+60)
    DC Current60A/600A±(3.0%+10)
    DC Voltage6V/60V±(0.5%+3)
    600V/1000V±(0.8%+3)
    AC Voltage6V/60V±(0.8%+5)
    600V/1000V±(1.0%+5)
    Frequency(By A range)10Hz/100Hz/1kHz±(1.5%+5)
    Frequency(By Hz range)10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz±(0.5%+5)
    Duty Cycle1%~99%±(3.0%+2)
    Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ±(1.0%+3)
    60MΩ±(2.0%+3)
    Capacitance10nF/100nF/1μF/10μF/100μF±(3.0%+5)
    1mF/10mF±(4.0%+5)
    100mF±(5.0%+5)
    Temperature-20℃~1000℃±(1.0%+2)
    -4℉~1832℉
    Feature
    Display6000 counts
    MAX/MIN
    Relative value measurement
    Auto Range
    Inrush Current measurement
    Data Hold
    Back Light
    Flash Light
    VFD measurement
    Temperature measurement
    LowZ
    General
    Power Supply3*1.5V AAA Batteries
    WeightAbout 340g (Included batteries)
    Size280mm*78mm*35mm
    Jaw Sizeφ26mm
    Safety RatingIEC-61010-1,IEC-61010-2-030,IEC-61010-2-032,CAT Ⅱ1000V ,CAT Ⅲ600V

    Product Description of AC Digital Clamp Meter


    The instrument of this series is a small hand-held professional up to 6600 counts digital clamp meter featuring stable, highly reliable and anti-drop performance. It is provided with a LCD display for clear reading. The circuit design takes LSI double integral A/D converter as its core under the protection of an overload protection circuit, making it a superior and handy instrument. It can be used to measure DC and AC voltage, DC current, resistance, diodes, capacitance, frequency, duty cycle and in-circuit continuity test. This digital clamp meter is provided with a LCD back light. Specially, it has a Max. and Min. value hold function, Auto/manual ranging select function, low voltage indicating and working backlight which is easy to use. This MS2108 model is profession version of MS2108A, which add to TRUE RMS VALUE and Clamp testing function.


    • The meter can perform measurement of AC/DC voltage and current, current, resistance, frequency, duty, capacitance, as well as continuity and diode test.
    • This meter is equipped with reading hold function.
    • This meter is equipped with maximum value measuring function.
    • This meter can measure frequency by clamp.

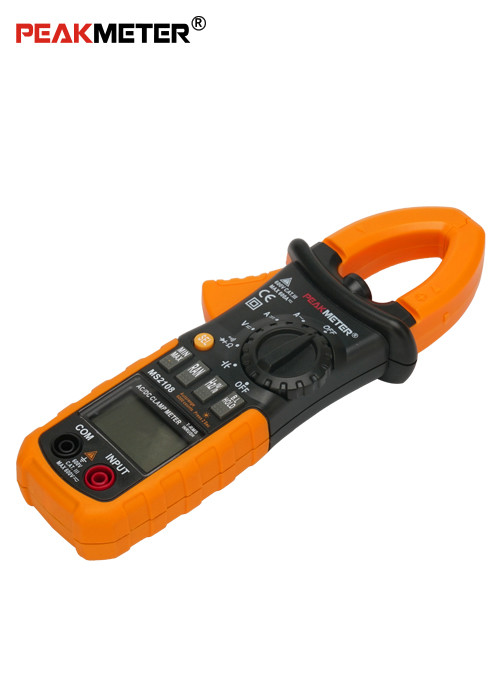

    Detailed Images of AC Digital Clamp Meter
