ZM6145 Vocational School Refrigeration Training Equipment With
Simple Compression Circuit
1. Overview
* Introduction to refrigeration1
* Model of a compression refrigeration system / heat pump1
* Cooling and heating of the heat exchangers directly tangible
2. Technical Description
The purpose of a refrigeration system is the cooling of materials
and products, e.g. to protect food from spoiling. Cooling can be
described as a process in which heat is removed from the
environment.
A commonly used refrigeration system is the so-called compression
refrigeration system.
In this system refrigerant flows through four main elements:
compressor, condenser, expansion element and evaporator.
The refrigeration system uses the fact that the refrigerant has a
low boiling point at low pressure. This means that evaporation
takes place on the low pressure side. During the evaporation of the
refrigerant heat is removed from the environment and it is cooled.
The condensation takes place on the high pressure side after the
evaporator. Here the heat is discharged into the environment. If
not the cooling effect but the discharged heat is used, this is
called a heat pump.

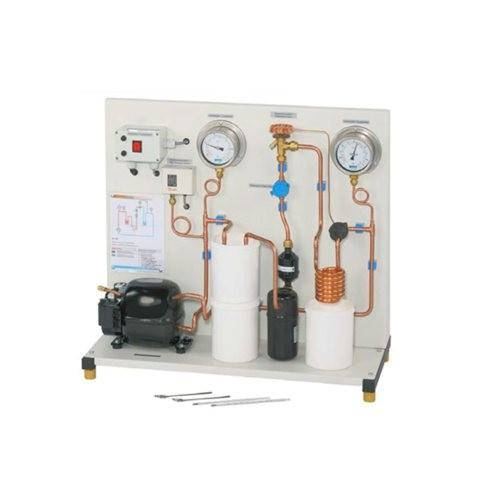

The set-up of a simple compression refrigeration system.
Evaporator and condenser have been designed as a pipe coil with
each end immersed in a water-filled tank. The water simulates the
environment.
A thermostatic expansion valve serves as expansion element. Two
manometers indicate the two system pressures on the high and low
pressure sides. On an additional scale on the manometer the
evaporation temperature of the refrigerant is indicated.
Two thermometers measure the temperature of the water in the tanks.
This allows for calculations of the amount of heat removed from the
environment (evaporator, cold water) and added to the environment
(condenser, hot water).
A sight glass indicates the aggregate state of the refrigerant
upstream of the expansion valve.
The well-structured instructional material sets out the
fundamentals and provides a step-by-step guide
through the experiments.
3. Learning Objectives / Experiments
- fundamentals of a compression refrigeration circuit
- key components of a refrigeration system
* compressor, evaporator, condenser, expansion
element
- relationship between the pressure and boiling
point of a liquid
- operation of a refrigeration system / heat pump
- developing a basic understanding of the
thermodynamic cycle
- simple energy balance
4. Specification
[1] fundamentals of refrigeration in a simplified model
[2] typical compression refrigeration system with piston
compressor, thermostatic expansion valve, evaporator and condenser
(each in the shape of a pipe coil)
[3] 2 manometers with temperature scale for the refrigerant show
the values of the refrigerant on the
high and low pressure sides
[4] 2 water-filled tanks with thermometer to demonstrate the
cooling and heating effect
[5] pressure switch to protect the compressor
[6] sight glass to monitor the aggregate state of the refrigerant
[7] refrigerant R134a, CFC-free
Arrange delivery within 45 days upon receipt of payment.
Please see below photo for detailed package.
