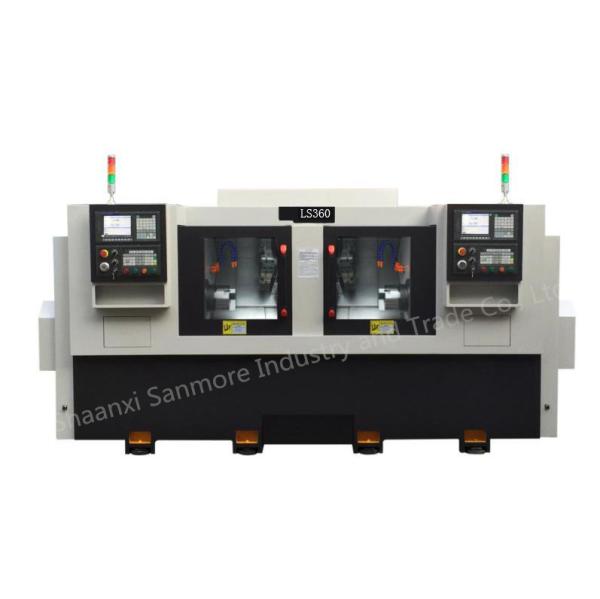

    LS360 CNC Lathe Machine Turning Machine

    Ask Lasest Price
    Brand Name : Sanmore
    Model Number : LS360
    Payment Terms : T/T, L/C
    Supply Ability : 25 sets per month
    Delivery Time : about two months
    • Product Details
    • Company Profile

    LS360 CNC Lathe Machine Turning Machine

    LS360 CNC Lathe Machine


    Specifications and ModelLS360C
    Max swing diameter over bedΦ360 mm
    Max swing over cross slideΦ120mm
    X-axis rapid travel380mm
    Z-axis rapid travel300mm
    SpindleA2-5
    Max Spindle Speed4500r/min
    Chuck formCollet (6 Cun Chuck)
    Spindle go-bore diaΦ48mm
    Drawing pipe go-bore diaΦ40 mm
    Types Cutter frameComb-type Carrier
    X/Z-axis repeatability0.01mm
    X-axis rapid traverse20m/min
    Z-axis rapid traverse20m/min
    Main motor5.5kw
    Overall side3550*1600*1800
    Machine weight3700kg
