High Definition Open Frame Panel PC 17" 250 Nits With 1280x1024 Resolution

    Buy cheap High Definition Open Frame Panel PC 17

    Buy cheap High Definition Open Frame Panel PC 17
    • Buy cheap High Definition Open Frame Panel PC 17
    • Buy cheap High Definition Open Frame Panel PC 17

    High Definition Open Frame Panel PC 17" 250 Nits With 1280x1024 Resolution

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD17PPCT1F**
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 units per month
    Delivery Time : 10-15 work days
    Price : TBA
    • Product Details
    • Company Profile

    High Definition Open Frame Panel PC 17" 250 Nits With 1280x1024 Resolution

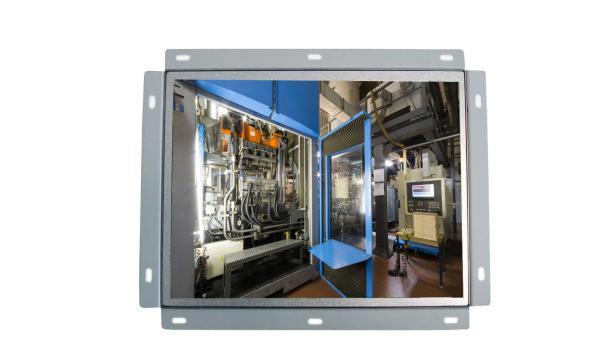

    17" open frame industrial touch panel PC


    ITD open frame panel computers have a touchscreen and are designed to last even in extreme environments with exposure to heat, cold, dust, and moisture. They have a slim and fanless design and are made of a rugged steel to protect from dust and moisture, as well as shock and vibrations. The bright TFT display panel allows for screen visibility in poor conditions. ITD’s open frame panel computers will optimize your industrial applications and ensure that your operations run smoothly.


    Specifications:


    Open Frame Panel PC


    Model NameITD17PPCG1F**
    IP RatingN/A

    PC Systems Options


    ARM Android Based RK3288(RK3368 optional)X86 Windows BasedX86 Windows Based
    CPU: Quad-Core Cortex-A17 1.8GHzCPU: Intel® Celeron J1900CPU: Intel Core i3/i5/i7
    Chipset: N/AChipset: Intel® NM10 ExpressChipset: Intel® HD Graphics, Support 1080p
    Memory: 1G/2GMemory: 2GB(Max. 8GB)Memory: 2GB(Max. 8GB)
    HDD/SSD: 8GHDD/SSD:500G/64GHDD/SSD:500G/64G
    1×HDMI1×VGA, 1×HDMI1×VGA, 1×HDMI
    1×USB 2.02×USB 2.0, 2×USB3.02×USB 2.0, 2×USB3.0
    1×mini-SD slot1×COM(RS232/422/485)1×COM(RS232/422/485)
    1×LAN1×LAN1×LAN
    1×Audio Out1×Audio Out, 1×MIC In1×Audio Out, 1×MIC In
    Expansion: SSDExpansion: USB, COM, Mini-PCIeExpansion: USB, COM, Mini-PCIe

    LCD Panel


    Screen Diagonal (Inch/cm)17”
    Display Active Screen Size (mm)337.920(H) x 270.336(V)mm
    Aspect Ratio4:3
    Physical Resolution1280x1024
    Maximum Resolution Supported1920x1080
    Colors16.7M
    Brightness (cd/m²)250nits
    Contrast Ratio1000:1
    View Angels85/85/80/80
    Backlight/Backlight LifetimeLED Backlight with 50000 Hours’ Lifetime

    Touch Panel


    Touch OptionsResistive, IR, PCAP, SAW
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power


    Power IndicatorGreen LED
    Power InputDC 12V
    Power Consumption20W

    Order Information


    17”Open Frame Panel PC with Resistive Touch, J1900ITD17PPCT1FJ1
    17”Open Frame Panel PC with PCAP Touch, J1900ITD17PPCT5FJ1
    17”Open Frame Panel PC with IR Touch, J1900ITD17PPCT2FJ1
    17”Open Frame Panel PC with Tempered Glass, J1900ITD17PPCG1FJ1
    17”Open Frame Panel PC with Resistive Touch, i5ITD17PPCT1FI5
    17”Open Frame Panel PC with PCAP Touch, i5ITD17PPCT5FI5
    17”Open Frame Panel PC with IR Touch, i5ITD17PPCT2FJ1
    17”Open Frame Panel PC with Tempered Glass, i5ITD17PPCG1FI5

    Application:
