    High Performance Open Frame LCD Monitor 10.4" 1920×1080 Resolution

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD10OFN1M1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

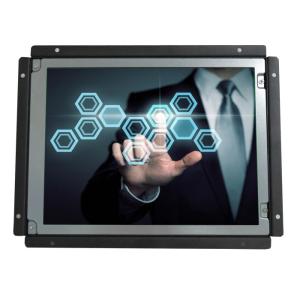

    High Performance Open Frame LCD Monitor 10.4" 1920×1080 Resolution

    10.4" open frame LCD touch monitor with resistive touch,IR touch, PCAP touch optional


    ITD industrial open frame LCD monitor displays are fully-integrated, commercially off-the-shelf units that combine high-performance touch technology in industrial-grade LCD flat panels, with sleek and flush mount open frame front surface industrial design. ITD industrial monitors provide reliability, durability, and expected long product life.


    BENEFITES

    - Long lasting product cycle-enclosure. Future generation panels phased-in without external changes

    - Display Only, Resistive (4 or 5 wire), SAW, IR and Capacitive touch options

    - Available in standard (4:3) and wide (16:9)

    - High quality panel with 150° x 140° viewing angle. 170° x 170° IPS panel optional

    - Mounting includes side mounting, rear-mount and VESA mount (front mount optional)

    - VGA ,DVI and HDMI inputs with USB for touch and external AC/DC power.


    Open Frame LCD Monitor


    Model Name

    ITD10OFN1M1

    IP Rating

    N/A

    LCD Panel


    Screen Diagonal (Inch/cm)

    10.4”

    Display Active Screen Size (mm)

    211.2(H) ×158.4(V)

    Aspect Ratio

    4:3

    Physical Resolution

    800×600

    Maximum Resolution Supported

    1920×1080

    Colors

    16.7M

    Brightness (cd/m²)

    300nits

    Contrast Ratio

    500:1

    View Angels

    80/80/70/70

    Backlight/Backlight Lifetime

    LED backlight with 50000 hours’lifetime

    Touch Panel


    Touch Options

    Resistive, IR, SAW, PCAP

    Touch Drivers

    Windows, Linux, Android, Mac, Raspberry Pi

    Input / Output


    Video Input

    1 × VGA

    1 × DVI-I

    1 × HDMI

    Audio

    1 × PC-Audio

    Touch Connector

    1 × USB

    Power Connector

    1 × DC2.0

    Operation


    Operating Temperature Range

    -10~60°C (-20~70°C Optional)

    Humidity Range (RH)

    10-90%

    24/7/365 Use

    Supported

    Power


    Power Indicator

    Green LED

    Power Input

    DC 12V

    Power Consumption

    10W

    Order Information


    10.4”Open Frame LCD Monitor with Resistive Touch

    ITD10OFT1M1


    APPLICATION


    OUR FACTORY
    Quality High Performance Open Frame LCD Monitor 10.4" 1920×1080 Resolution for sale
