Industrial Metal CNC Pipe Cutting Machine 5 axis Plasma Automatic 110V/220V/380V

Industrial Metal CNC Pipe Cutting Machine 5 axis Plasma Automatic 110V/220V/380V

CNC automatic pipe profile cutting machine is special CNC equipment which is used for cutting metal pipe automatically. It can realize auto program and auto CNC nesting work for any complicated joint type of intertube,pipe,etc. and can cut any shapes at one time.This product is widely used for steel structure, shipbuilding,bridge and heavy machine industries. Suitable fo cutting cylinder branch, two or three -layer saddle cutting of the main pipe. It is suitable for large quantities of professional intersection pipe cutting. Cutting material: low carbon steel, stainless steel and non-ferrous metal, etc. machine can be designed according to the different needs of users.

Application:

Our self-developed CNC intersecting line pipe cutting machine is slinky in appearance, convenient in operation and high precision in cutting, which is widely used in petroleum, construction steel, ship yards and other corresponding industries.

Machine tools' technical specifications:

Mobile column structure of cutting head moving, stroke ≧ 6m
Manual or electrical steel tube chuck clamping
Bracket-type steel supporting manually or hydraulically
Dedicated intersecting line cutting system with inner ration unfolded intersecting cutting macro library
Plane pole-link bevel control structure with the range of swing angle of ± 60 °
Linear guide rail, ball bearing transmit the leading screw, rack and pinion assembled transmission system

Cutting technical specifications:

Cutting Steel Type: Round
Figures can be cut: variety of graphics by outspreading intersecting line, can be with bevel
Control Axis: 2-4-6-axis, bevel cutting with 6-axis
Cutting diameter: according to customer requirements
Cutting: plasma or gas
Pipe maximum length: ≤12m
Pipe clamping method: Chuck
Power-driven: high-precision AC servo + dedicated planetary reducer
Control System: a dedicated intersecting line cutting system: 6-axis controlled, with quantitative intersecting line cutting macro library

Technical Parameters:

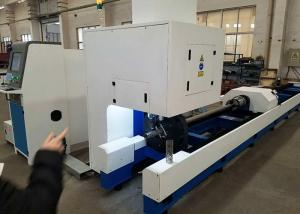

Machine In Using:

Questions:

1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m², with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.

2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.

3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.

5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?

• What the min and max diameter of your pipe?

• What’s the min and max length of your pipe?

• Do you need bevel cutting?

These information is helpful for us to choose suitable equipment solution and price quickly.

Metalwork Machinery (Wuxi) Co., LTd., was established in 2006, specializing in cutting and welding automation manufacture, sales, and services with more than 10 years experience.

Our products ranges: CNC flame and plasma cutting machine, CNC fiber laser cutting machine, arc welding machine, automatic resistance welding machine, automatic seam welding machine, H beam and box beam production line, robotics welding and cutting stations, etc.  We also can produce the customized machine according to customer's workpiece.

Moreover, we are specialized in "whole solution" of production lines for our customers, we not only supply you the individual equipment, but also delivery a solution for your project. This will bring you more values from us.

With regard to the welding equipment industry, advanced technical well-know in design and production activities and long term experience, we provide important technology and innovations for tank, pressure vessel, boiler,ship building, nuclear power, electric power station, manufacturing processes. We not only sell the equipment, but also delivery value to customers.

Service is our specialty, after long time cooperation, you will satisfy more with us.

If you have any queries, please do not hesitate to contact us by phone or E-mail. We will revert to your questions, within 24 hours after your requests.
