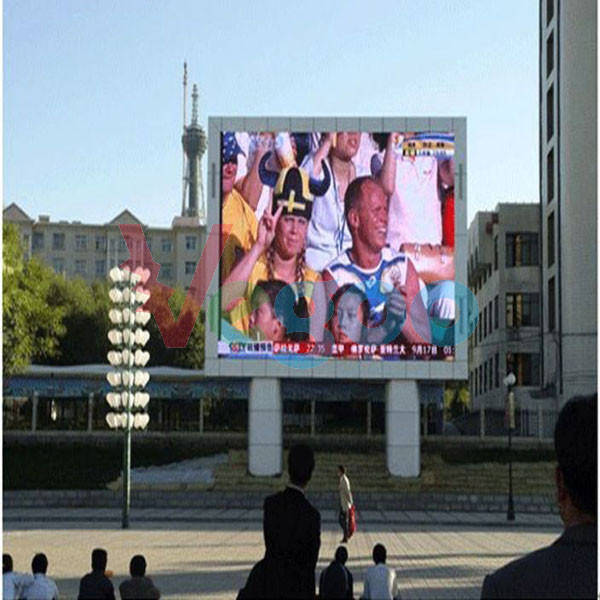

P5 Outdoor Full color LED Display

    Buy cheap P5 Outdoor Full color LED Display from wholesalers

    Buy cheap P5 Outdoor Full color LED Display from wholesalers
    • Buy cheap P5 Outdoor Full color LED Display from wholesalers
    • Buy cheap P5 Outdoor Full color LED Display from wholesalers

    P5 Outdoor Full color LED Display

    Ask Lasest Price
    Brand Name : Vegoo
    Model Number : VG-FD P10
    Certification : CE/ROHS/FCC/
    Supply Ability : 3000Sq.m
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    P5 Outdoor Full color LED Display

    Description:


    1. High efficiency design overcomes harsh weather conditions.

    2. Ultimate reliability

    3. Lowest weight in its class

    4. Minimum installation costs

    5. Fiber-optic data transmission to the display

    6. Image feeds delivered in both standard and high-definition formats.

    7. Fan less operation ensures quiet, yet powerful performance.

    8. Engineered for ease of service with top, back and front access. Easy top, back and front service access.

    9. Lighter and thinner than typical fascia displays, reducing installation expenses and improves aesthetics.

    10. Flexible, lightweight products that come with the best value at the most attractive prices.

    11. Integrates seamlessly with a variety of Our Company's other video screen display products. Cost-effective LED displays that offer excellent black levels, contrast and image quality.


    P5 Outdoor Full color LED Display Specification


    NO:Product NameSpecification
    1Pixel Pitch5mm
    2Pixel Configuration1R1G1B/SMD2727
    3Density40,000 pixel/m2
    4Moduel Size(L×W)mm320mm×160mm
    5Cabinet Size(L×W×H)mm960mm×960mm×130mm
    6Module Resolution64×32
    7Cabinet Resolution192×192
    8Driving Method1/8 Scan
    9Driving ICMBI5124 or ICN 2038S
    10Brightness6000cd/㎡
    11Contrast1000:1
    12Brightness AdjustmentAuto and Manual
    13Power ConsumptionMax Power:<750W
    14Average power: <225W
    15Module Weight0.28kg
    16Color Temperature9500K—11500K
    17Horizontal Viewing Angle140º
    18Vertical Viewing Angle140º
    19Signal Processing10 or 14bit
    20Grey Processing1024×1024×1024
    16834×16834×16834
    21Control Distancecable100m,Multimode500m,Single mode 2km
    22Frame Frequency65 Hz
    23Refresh Rate>1920Hz
    24Control ModeSynchronous/Asynchronous
    25The Opposite Calibration CurveWith Eight Optional Gamma Calibration Curve
    26Users can choose the recommended curve or adjust it based on actual situation
    27MTBF>50000 hours
    28Life Span100,000 Hours
    29Operating TemperatureWorking : -20 - 65 ℃
    30Storage : -40 - 85 ℃
    31Environment Temperature-30℃ to 60℃; humidity Rh10% to 95%
    32Remote ControlCan realize remote control and send alarm signal to operators in case of logging failure (Be customized)
    33Self-checking TechniqueSelf-inspection, communication test, power test, temperature monitoring (Be customized)
    34Operating System PlatformWindowsNT,Windows2000,WindowsXP,Windows7
    35Power SupplyAC 85-264V
    36Protectionwaterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

    Services Before-sale:


    Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.


    Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible


    Service In - sales :


    Try the best to meet the reasonable demands by clients Provisional changed .

    Keep close touch with the clients during the period if installation .

    Cooperate friendly with the clients, satisfy the clients with the best quality of led display .


    Service After-sale:


    Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.

    You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .


    Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .
