Metric Stainless Steel Pipe Tubing Cold Drawing Food Grade Ss
Instrumentation Use
Zheheng steel is a one of supplier, exporter,manufacturer of high
precision stainless seamless steel tubing ,ss instrumentation
seamless tubing .ASTM stainless steel seamless tubing ,ASME SS
stainless steel seamless tubing ,Metric stainless steel pipe with
compettive price high quality ,
our seamless stainless steel tubing surface
surface 180G, 240G, 320G Satin / Hairline 400G, 600G Mirror finish
Application handrail, railing, staircase, weld mesh screen, door,
window, balcony, fence, bench, furniture, etc
Our company produces seamless stainless steel instrument tubing,
the product quality is stable, internal and external polishing, we
have a large inventory in Shanghai, and there are various sizes and
different wall thickness products for customers to choose.
Stainless steel tubes are suitable for a wide range of applications
in the petroleum, chemical, shipbuilding, laboratory and
pharmaceutical industries.
| austenitic-ferritic stainless steel(duplex steel) |
| 23 | 0Cr26Ni5Mo2 | - | SUS329J1 | 329 | S32900 | STS329J1 | 1.4477 | - | 329J1 | 329J1 |
| 24 | 00Cr18Ni5Mo3Si2 | 022Cr19Ni5Mo3Si2N | SUS329J3L | - | S31803 | STS329J3L | 1.4462 | - | 329J3L | 329J3L |
| 0Cr18Ni10Ti ferritic steel martensitic |
| 25 | 0Crl3Al | 06Crl3Al | SUS405 | 405 | S40500 | STS405 | 1.4002 | 04Cr13 | 405 | 405 |
| 26 | - | 022Cr11Ti | SUH409 | 409 | S40900 | STS409 | 1.4512 | - | 409L | 409L |
| 27 | 00Cr12 | 022Cr12 | SUS410L | - | - | STS410L | - | - | 410L | 410L |
| 28 | 1Cr17 | 10Cr17 | SUS430 | 430 | S43000 | STS430 | 1.4016 | 05Cr17 | 430 | 430 |
| 29 | 1Cr17Mo | 10Cr17Mo | SUS434 | 434 | S43400 | STS434 | 1.4113 | - | 434 | 434 |
| 30 | - | 022Cr18NbTi | - | - | S43940 | - | 1.4509 | - | 439 | 439 |
| 31 | 00Cr18Mo2 | 019Cr19Mo2NbTi | SUS444 | 444 | S44400 | STS444 | 1.4521 | - | 444 | 444 |
description for ss instrumentation seamless stainless steel tubing
| Standard | ASTM A554, A249, A269 and A270 |
| Material Grade | 201: Ni 0.8%~1% |
| 202: Ni 3.5%~4.5% |
| 304: Ni 8%, Cr 18% |
| 316: Ni 10%, Cr 18% |
| 316L: Ni10%~14% |
| 430: Cr16%~18% |
| Outer Diameter | 10-600mm |
| Thickness | 0.3-100mm |
| Length | 6m or as customers' request |
| Tolerance | a) Outer Diameter: +/- 0.2mm |
| b) Thickness: +/- 0.02mm |
| c) Length: +/- 5mm |
| Surface | 180G, 240G, 320G Satin / Hairline 400G, 600G Mirror finish |
| Application | handrail, railing, staircase, weld mesh screen, door, window,
balcony, fence, bench, furniture, etc |
| Test | Squash test, extended test, water pressure test, crystal rot test,
heat treatment, NDT |
| Chemical Composition of Material | Material Composition | 201 | 202 | 304 | 316 | 316L | 430 |
| C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.08 | ≤0.035 | ≤0.12 |
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 |
| Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤2.00 | ≤1.00 |
| P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.045 | ≤0.040 |
| S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.030 |
| Cr | 13-15 | 14-17 | 18-20 | 16-18 | 16-18 | 16-18 |
| Ni | 0.7-1.1 | 3.5-4.5 | 8-10.5 | 10.0-14.0 | 10.0-14.0 | ** |
| Mo | ** | ** | ** | ** | 2.0-3.0 | ** |
| Mechanical Property | Material Item | 201 | 202 | 304 | 316 |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 |
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 |
| Extension | ≥30% | ≥30% | ≥35% | ≥35% |
| Hardness (HV) | <105 | <100 | <90 | <90 |
Product Description
Standard & Tolerance: ASTM A213,ASTM A269,EN10216-5 TC1,D4/T3
NDT: Eddy Current or Hydraulic Test
Heat Treatment: Bright Annealed
3.1Chemical Composition:3. Material2.Description:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| | | | | | | | | |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.04 | ≤0.03 | 9.0-12.0 | 17.0-19.0 | | Ti≥5xC |
| 409 | ≤0.08 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | ≤0.5 | 10.5-11.7 | | Ti6xC%≤0.70 |
| 409L | ≤0.03 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | 0.5 | 10.5-11.7 | | Ti8xC%≤0.70 |
| 430 | ≤0.12 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | | 16.0-18.0 | | |
| SS329J4L | ≤0.03 | ≤1.0 | ≤1.5 | ≤0.04 | ≤0.03 | 5.50-7.50 | 24.00-26.00 | 2.50-3.50 | |
3.2 Mechanical Property:
| ASTM | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elogation (%) | Hardness (HRB) |
| | | | |
| 317L | ≥480 | ≥175 | ≥40 | ≤200 |
| 321 | ≥515 | ≥205 | ≥40 | ≤95 |
| 409 | ≥380 | ≥205 | ≥20 | ≤80 |
| 409L | ≥350 | ≥185 | ≥22 | ≤80 |
| 430 | ≥450 | ≥205 | ≥22 | ≤80 |
| SS329J4L | ≥620 | ≥450 | ≥18 | ≤320 |
You can select different sizes stainless steel products with high
quality from a reliable manufacturer with reasonable price. We can
supply stainless tube/pipe, stainless steel sheet&plate,
stainless steel bar, stainless steel wire, stainless steel coil
etc.

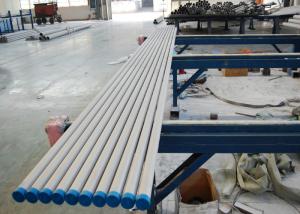

SS instrumentation seamless stainless steel tubing show:
