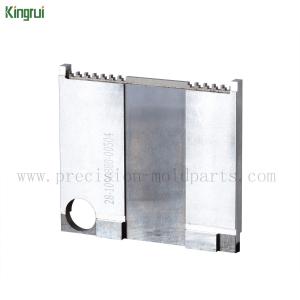

Small Precision Connector Mold Inserts for Plastic Molding industry
Production Information
1.Product accuracy: dimension tolerance ±0.001mm ,axiality within
0.002mm,roundness withing 0.0015mm,
surfacae roughness wthin Ra 0.025,straightness within 0.002
2.Technique standard:according to national standars
GM,JIS,DIN,AISI,ect. and other national standard
3.Technique advantage:grinding parts with precision less than
0.002,precise EDM parts with precision less than 0.005
4.Production equipment:all machinery used from import ,with EDM 8
sets,grinder 11 sets,,wire-cutting 1 sets,
CNC 2 sets,milling machine 1 set
5.Our service:grinding process,grinding surface
process,electro-discharge(wire EDM),CNC EDM,mirror EDM,CNC
processing,precision mold parts process
Specifications
| Product name | Small Precision Connector Mold Inserts for Plastic Molding industry |
| Material | SKD11,SKH9,SKH51,SKH55,high-speed steel,special material can
customize |
| Size | custom |
| Grinding precision | 0.001mm |
| EDM precision | 0.002mm |
| Grinding angle clearness | 0.002mm |
| Surface roughness for EDM | Ra 0.04 |
| MOQ | 1pcs |
| QC report | include |
| Delivery type | DHL EXPRESS |
| payment term | T/T,50% deposit,50% balance after receiving parts |
| Delivery time | 7-15DAYS |
| Packaging type | paper of box |
| Part Name | Small Precision Connector Mold Inserts for Plastic Molding industry |
| Specification | Micro, Small inserts are what we are very good at: Length: 52.03
Width: 4.46
Height: 5.04 |
| Tolerance |
+/-0.001-0.005mm |
| Material | DIN 1.2344ESU with certificate of material and heattreatment |
| Inspection | 100% inspection before delivery with inspection report |
| Processing | Fine grinding, EDM and WEDM processing |
| Industry for use | Plastic Molding Industry
Manufacturing Industry |
Our advantage
- High precision mold spare parts made of harden tool steel with
accuracy up to +/-0.002mm
- Drill small hole size approximately 0.10 mm.
- Computer Numerical Control EDM machine employs high precision
technology for surface finishing with a tolerance limit +/-0.003
mm.
- Equipped with SODICK CNC wire-cut machine with a tolerance limit
+/-0.002 mm.
- Trained specialists are capable of operating the machines to its
utmost potential.
