    Portable SMSPB High Accuracy Pressure Transmitter 12 To 45VDC Power Supply

    Ask Lasest Price
    Brand Name : Mkfale
    Model Number : SMSPB
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : Negotiation
    Delivery Time : 5 - 30 Work Days
    • Product Details
    • Company Profile

    Portable SMSPB High Accuracy Pressure Transmitter 12 To 45VDC Power Supply

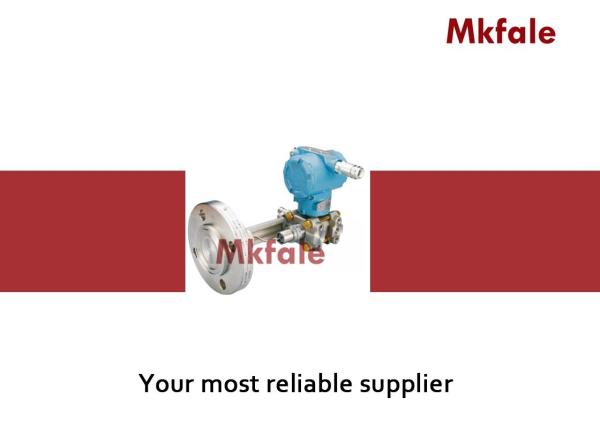

    Portable SMSPB Series High Accuracy Pressure Transmitter 12 To 45VDC Power Supply


    Technical Specification Table


    SMSPB SERIES PRESSURE

    TRANSMITTER

    SMSPB
    Accuracy0.25% to ±0.075%
    Ambient Temp effect/28℃

    Scale ration from 1: 1 to 10: 1:

    ≤±0 . 2 %, Minim scale ( ≤1.5kpa) :±0.5%

    Influence of pressure1.Zero error, 0 to 13.7Mpa, ±0.2%/6.9Mpa, 13.7Mpa, ±0.5%/6.9Mpa, 2.full scale error:±0.25%/6.9Mpa
    Stability60months,±0.25%F S,28℃, Max pressure: 6.9Mpa, scale for 1:1
    Place influenceMove less than 250Pa on zero,no influence for scale
    General performance±0.25%(scale of 1:1,28℃ changeable,6.9Mpa)
    Vibration influenceMeasure random axis, <±0.1%F S(15 to 2000Hz)
    Influence of Power supplyeffect≤0.005%/V

    Isolation and reverse

    polarity protection

    No arc light under 50Hz,100Vpp

    No damage when reverse connection under 24VDC

    Power Supply12 to 45VDC
    Work temperature-20℃ to +85℃
    Storing temperature-40℃ to +104℃
    Relative humidity0 to 90%
    Diaphragm material316L,Hastelloy C,Monel, Ta stainless steel.
    Housing MaterialLow cooper cast-alaminum alloy with, Polyurethane paint
    Degrees of protectionIP67
    Fill FluidSilicone oil Glyceride and water


    Why choose us


    1: Various style for each products and completely series industry instruments.
    2: Large stock for fast shipping .
    3: High quality with competitive price .
    4: Sample order & small quantity order is acceptable .
    5: Customize according to your special request .



    FAQ


    Q: Could you offer the free samples ?
    A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

    Q: What ' s your business scope ?
    A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

    Q: What is the price of the product ?
    A: Our prices are based on the size and type of material , if you can give me the information ,
    then we can give you an estimated price is for reference only . We can do any size and any desgin .

    Q: What types of service ?
    A: Supply technical information for your Working condition and give advise about details.
