Precast Concrete Lifting Ferrule Loop Insert For Concrete Precast Building

Precast Concrete Lifitng Ferrule Loop Insert loop ferrule insert coil for concrete precast building

4 Strut Coil Ties, ferrule loop inserts , ferrule coil inserts
Description Of Coil Tie:

Four strut coil tie and coil insert welded for concrete and formwork use
The Four Strut Coil Tie is similar in form and use to the Two Strut Coil Tie,
but has two additional struts to develop higher load capacities. Four Strut Coil
Ties are available in 1" diameter standard, 1-1/4" standard and heavy configurations.
Coil Inserts:
1. name: open coil insert
2. material: mild steel
3. surface: E. G(Electro Galv.)
1. Product Name:building Concrete Coil Insert
2. Craft: welding
to prevent hydrogen embrittlement effects
Precast Concrete Coil Lifting Insert
Material:Q235,#45
Size:1/2" or 3/4" or 1"
Finish:Plain,Gal.,H.D.G

product:	Ferrule Loop Insert
Brand:	NTS
Standard:	DIN,ANSI,JIS,ASTM, Non-Standard
Surface:	Zinc-plated/Plain
Material:	Steel
Size:	1/2'' 3/4'' 1''
Quality Control:	100% inspection during production
Packing:	BULK, SMALL BOX PACKING, AS PER CUSTOMER'S REQIEST
Delivery Time:	35-45days

Sizes:

Type	Bolt Diameter & Length	SWL Tension 4-1
2 Strut	3/4” x 6”	4,500 lbs.
2 Strut	1” x 6”	6,000 lbs.
2 Strut	1-1/4” x 8”	7,500 lbs.
4 Strut	3/4” x 6”	6,000 lbs.
4 Strut	1” x 8”	9,000 lbs.
4 Strut	1” x 12”	9,000 lbs.
4 Strut	1-1/4” x 8”	9,000 lbs.
4 Strut	1-1/4” x 12”	13,500 lbs.

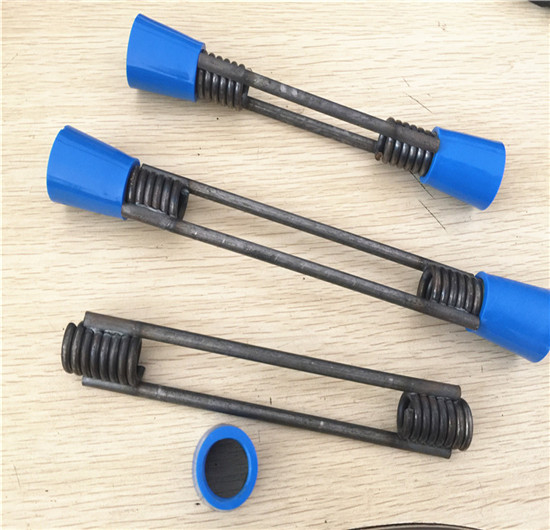

Here are the Pictures of coil ties:

all of the coil tie ,coil insert ,forming tie we produced for formwork building concrete

The process of the coil tie butt welded:

Test pictures for coil tie coil inserts

Our quality control service:

Our Advantage:

We are Manufacturer and Factory !!
We do OEM　
Best Service and Competitive Price
Fast Delivery Time
