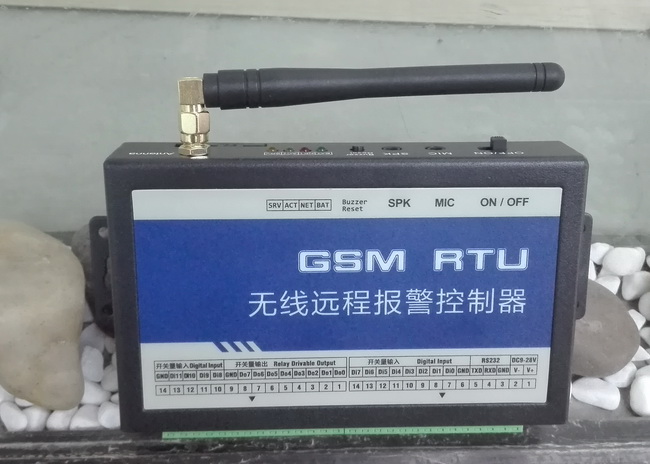

cellular data logger with free web cloud server for data monitor

System Feature

• Adopted highly integrated industrial 32-bit ARM MCU
• Reliable performance with built-in double watchdog, 24×7 operation
• Support signal fileter
• Support automatic network reconnection and data re-send
• Automatically or manually update interior clock by sms or NTP or server
• Automatically execute preset task by schedule(second, minute, day, week, month)
• Support Interlock programming, Event trigger
• Easy used GUI configure software for setting up to 100 parameters
• Optional inside battery that life is 8-20 hours, cellular module Intelligent sleep when power lost

DI feature

• Accept NO or NC dry contact

DO(T) feature

• Transistor output(drive voltage=power supply voltage, Drive current≤500mA)
• Remote or local event activate DO on/off/pulse
• Status memory function for power lost

DO(K) feature

• Relay NO contact output(load: 2A / 125VAC,220VDC)
• Remote or local event activate DO on/off/pulse
• Status memory function for power lost

AI feature

• Standard 4-20mA (option: 0-5V) signal in, Sampling frequency: 33Hz, 10-bit precision)
• Transduce 4-20mA(0-5V) to actual value
• Configurable parameters for signal acquisition, alarm, data communication
• Detect connect or disconnect to alarm

SMS feature

• Preset 10 phone numbers (support distribute authority to receive sms)
• Any device alarm status can be sent by sending sms
• All alarm and recover sms text can be edited
• Remote get device status or value by sending sms command
• Control output via sms command
• Sms report any IO channel’s status or value on schedule
• Remote setting via sms commands
• Sms remind for sim card overdue
• Support power lost sms alarm and recover sms(works with inside battery)

Wireless network communication

• Optianal onboard GPRS, 3g, 4g, Wi-Fi module
• Support TCP/IP two-way communication with Max.4 servers(IP or domain)
• Automatically Upload data when alarm or according to schedule
• Communication protocol: Modbus TCP,http post, Cwt_IO(two-way communication)
• Can forward data between wireless network with RS485 or RS232

Modbus feature

• Can work as a modbus master to poll salve over RS485
• Can be a I O module to be read/write by modbus master
• Run Modbus RTU or TCP protocol over GPRS/3G

Wireless Remote Monitoring Solutions

Whatever term you use for Telemetry, whether it's remote monitoring, M2M, Machine2Machine, Machine2Man or even Man2Machine then CWT wire free telemetry products will serve you well. Our Telemetry Solutions have been designed with the user in mind, so they are cost-efficient, easy to configure and install.

We can interface to machines in different ways, whether it be via process signals, or serial communications, including Modbus.

Benefits of Telemetry

This ‘Internet of Things’ telemetry technology offers rapid payback, delivering operational, environmental and financial benefits, from cutting delivery miles, to reacting in good time to warnings of machinery breakdown, leakage, theft, run-outs and safety breaches.

Why choose CWT

CWT award-winning Telemetry Solutions are proven globally, in a range of sectors including chemical & petrochemical, food distribution and production, transport, water & waste, environmental and factory automation.
