Brand Name : | WNK |
Model Number : | WNK805 |
Certification : | ISO,Exia |
Price : | Negotiation |
Payment Terms : | T/T, Western Union, MoneyGram |
Supply Ability : | 200 set/day |
Delivery Time : | 3~5 working days |

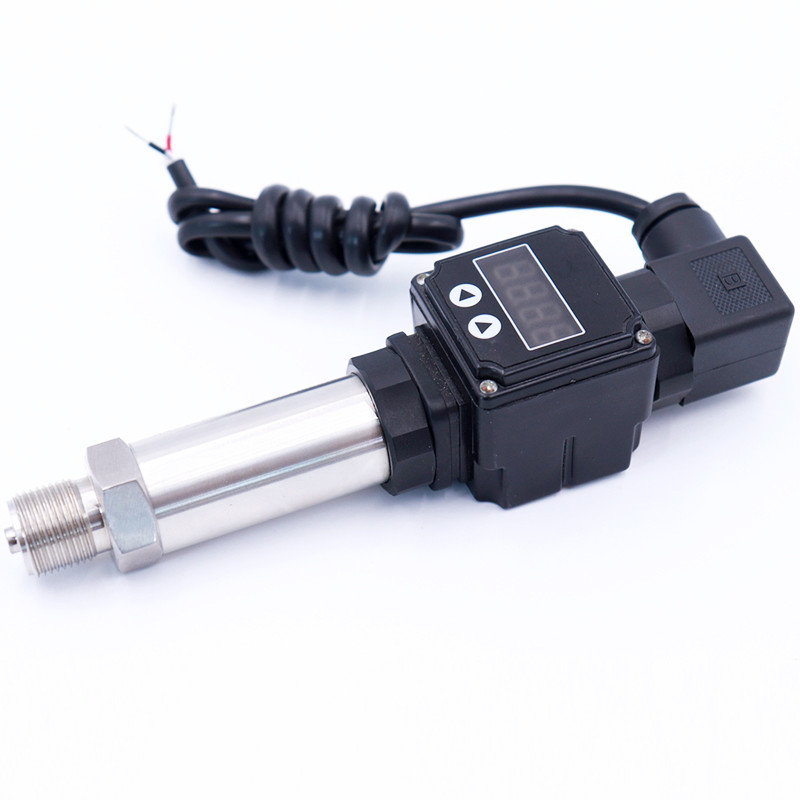

4-20mA 1-5V Smart Pressure Transmitter with with Local LED Display
Wnk805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably
Application
It is suitable for gas, liquid, steam pressure measurement and
pressure measurement with corrosive media, it can also be used for
level measurement
Technical data
Applicable media | Liquid, Gas, Steam |
Pressure range | 0-0.2~-100kPa, 0-0.2~1000kpa, 60mPa |
Pressure measurment | Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure |
Accuracy | 0.2, 0.5 |
Stability | ±0.25% FS/year |
Zero drift | 50% of full range span. |
Max overload | 200% of sensor range |
Output signals | 4~20mA, 1-5V for optional |
Display | LED (Optional) |
Housing material | 304 stainless steel |
Mechanical connection | M20×1.5; 1/2-18NPT, 1/4NPT, Customize |
Power supply | Non-explosion: 10.5~45V DC |
EEX ia:10.5~30 V DC | |
Ambient temperature | -40~85℃ |
Process temperature | -40~85℃ |
Compensation temperature | -10~70℃ |
Dimension
