    Single Phase Low Current CT Current Transformer 100 5a For Metering System

    Ask Lasest Price
    Brand Name : YOMIN
    Model Number : LMZJ1-0.66
    Certification : CE, ROHS
    Price : it can be negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000pcs per month
    Delivery Time : shipped in 2-5 days after payment
    • Product Details
    • Company Profile

    Single Phase Low Current CT Current Transformer 100 5a For Metering System


    Single Phase Low Current CT Current Transformer 100 5a For Metering System


    Product Description:


    Current transformer LMZJ1-0.66 letter meaning L current transformer M main line Z casting insulation J increase capacity 1 design serial number 0.66 rated voltage (kV). Mainly used for indoor, rated voltage of 0.66kV and below the rated frequency of AC circuit 50Hz as current and electric energy measurement and relay protection, products for the casting type current transformer, the installation method adopts bus fixed installation method, LMZJ transformer insulated busbar for casting core wound with two windings the lower part of a base, fixed for use.


    Technical Parameter:


    1, The current transformers are in accordance with GB1208 and IEC60044-1 standards
    2, Rated voltage 0.66kV
    3, Rated secondary current 5A or 1A
    4, Rated frequency 50Hz or 60Hz
    5, Ambient temperature -5℃-+40℃


    Characteristic

    The utility model relates to a cast insulated bus type, and the iron core is wound with two windings.
    current transformer LMZJ1-0.66 is mainly used for indoor, rated voltage of 0.66kV and below the rated frequency of AC circuit 50Hz as current and electric energy measurement and relay protection, products for the casting type current transformer, the installation method by bus fixed installation method.

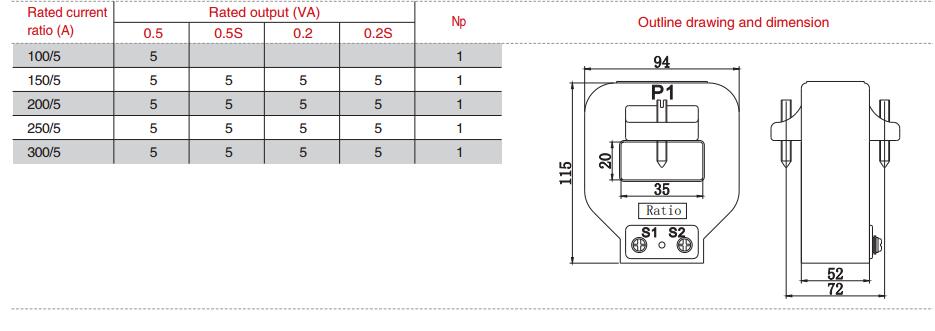

    Rated currentRated output (VA)Np
    ratio (A)0.50.5S0.20.2S
    100/551
    150/555551
    200/555551
    250/555551
    300/555551

    Rated currentRated output (VA)Np
    ratio (A)0.50.5S0.20.2S
    150/551
    200/5551
    250/55551
    300/555551
    400/555551

    Zhejiang Yomin Electric Co., LTD

    Contact person: Nike

    Tel: +86 153 5592 5721(Whatsapp)
