    Button Operation 2.5 Ton C Frame Hydraulic Press Machine With Guiding Device For Slider

    Ask Lasest Price
    Brand Name : XINKE
    Certification : CE, ISO9001:2000
    Price : USD 10000-100000 Per Unit
    Payment Terms : L/C, T/T
    Supply Ability : 15 Units Per Months
    Delivery Time : 90-180 Working Days
    • Product Details
    • Company Profile

    Button Operation 2.5 Ton C Frame Hydraulic Press Machine With Guiding Device For Slider

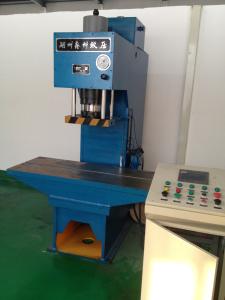

    Y30 C-Frame Hydraulic Press


    Features:

    1. Optimized by computer design, single column frame.
    2. Guiding device for slider
    3. Individual hydraulic and electrical control system, button operation
    4. Pressure maintaining, automatic return
    5. Operation mode: manual and automatic
    6. Working force and stroke is adjustable

    Application:

    Small force presses are suitable for the process of drawing, stamping, punching of sheet metals

    Large force presses are suitable for the process of bending, forming of sheet metals.

    Straightening and press fitting of shaft, camshaft, crankshaft

    Plastic material molding


    Accessories for option:

    Slider speed adjustment device

    Displacement sensor

    Light curtain safety device

    Lighting device for working position

    PLC control system


    Technical Data:

    ItemUnitY30-2.5
    Nominal forcekN25
    Ejector forcekN
    Working press of mediumMPa8
    Ejection strokemm
    Slider strokemm125
    Throat depthmm110
    Opening daylightmm210
    Size of worktableL.R.mm300
    F.B.mm200
    Blanking hole sizemmφ80
    Worktable height above the floormm900
    Slider speedDescendmm/s38
    Workingmm/s38
    Returnmm/s100
    Overall size of machineL.R.mm1105
    F.B.mm555
    Height above the floormm1732
    Ejecting speedEjectingmm/s
    Returnmm/s
    Motor powerkW1.5
    Machine weightt0.35
