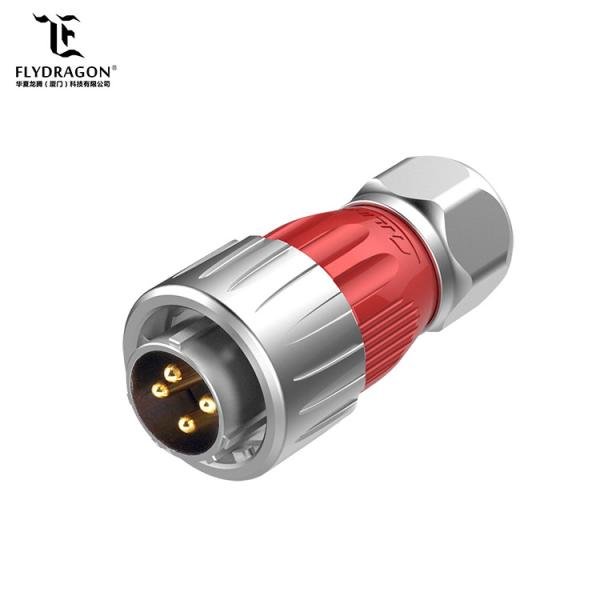

    Zinc Alloy Cover 4pin Power Connector Automotive with IP65/P67 Electrical Connector for LED Lighting & Display

    Ask Lasest Price
    Brand Name : Cnlinko
    Model Number : DH20-4
    Certification : CE/UL/RoSH/CCC
    Price : US $0.5-5
    Payment Terms : T/T, D/A, D/P, L/C, Western Union, MoneyGram
    Supply Ability : 20000 Piece/Pieces per Day
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    Zinc Alloy Cover 4pin Power Connector Automotive with IP65/P67 Electrical Connector for LED Lighting & Display

    Zinc Alloy Cover 4pin Power Connector Automotive with IP65/P67 Electrical Connector for LED Lighting & Display


    DH20 series waterproof connector, with unique wave spring design, standard card slot,rotary
    locking type and fashionable design to meet customer’s demands, widely be used in LED display/screen, industrial equipment, stage lighting equipment and other field


    Key Features


    • Using the alloy external protective material, effectively reduce the external high current generated electromagnetic and signal RF interference
    • Using the military standard three-point spiral lock

    • Optional housing color to meet the needs of different environmental use

    • Optional metal and silica gel material cover to meet the needs of different customer use

    • 2-7pin power supply, 9-12pin signal

    • Rated current: 5 A, 12A, 20A


    Product details



    Type : IP67 electric connector


    Number of contacts : 4 Pins


    Wire Size : 2.5mm2 ~ 4mm2/12~14 AWG


    Rated Current : 20A


    Rated Voltage : 500V


    Contact Termination : Soldering/Crimping


    Housing&Insulation material : High-performance engineering plastics


    Certificate : CCC/ TUV/ UL


    specifications



    PINS23457912
    Cable specification2.5mm2~4mm2/
    14~12 AWG
    1.0mm2~1.5mm2/
    18~16 AWG
    0.15mm2~0.2mm2/
    26-24 AWG
    Diameter rangeΦ8mm~Φ12mmΦ7mm~Φ9mmΦ5.5mm~Φ7mm
    Contact diameter × numberΦ2.7×2Φ2.7×3Φ2.7×4Φ1.8×5Φ1.8×7Φ1.0×9Φ1.0×12
    Rated Current (A)20A12A5A
    Operating voltage (AC.V.rms)500V400V
    Contact resistance<1mΩ<2.5mΩ<5mΩ
    /
    Temperature rise20A contact temperature
    below 30℃,
    25A......40℃↓,
    30A......50℃↓.
    12A......30℃↓,
    15A......40℃↓,
    20A......50℃↓.
    /
    Withstanding Voltage (AC.V)
    1 minute
    2500V1500V
    Insulation resistance>500MΩ
    Protection levelIP65/IP67
    Durability≥500times
    Working temperature-40℃~80℃
    Connecting mode1/4 bayonet connecting type
    Assembly wireSoldering/Crimping
    MATERIALS
    Housing&insulation partshigh-perpormance engineering plastics
    Hardwarezinc alloy(pearl hard chrome)
    copper pinscopper alloy
    (gold-plated 4U)
    waterproof coverSilica gel
    Flammability ratingUL94-V0

    Product Description




    waterproof wire connector


    Certification



    Company Information



    FAQ


    Q1. Can I have a sample ?

    A1.Yes, we welcome sample order to test and check quality. Some samples are free, and some samples should be paid in advance and the cost will be refund after further order.


    Q2. What about the production lead time?

    A2.It will take about 3 days to 7 days for our standard product .


    Q3. Do you have any MOQ (minimum order quantity) limit?

    A3.Low MOQ, 1pc for sample checking is available.


    Q4. How do you ship the goods and how long does it take to arrive?

    A4.We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.


    Q5. Is it OEM available?

    A5.Yes. We have rich experience and good ability to put your design and idea into real product, normally it take about 20 to 30 days for new product from mold design to final production.


    Services


    1. We will reply your inquiries within 1 hour to 24 hours.

    2. We provide 1 year quality warranty period.

    3. We always try our best to keep our words.

    4. We provide customized solution according to your requirement.

    5. Our goal is to create maximum value for our customers and partners around the world.
