ZLP800 Suspended Cradle 800kg Rated Load Building Cleaning
Equipment Swing Stage for Sale
Specification for ZLP800 Suspended Cradle 630kg Rated Load Building
Cleaning Equipment Swing Stage for Sale
| Type | ZLP800 Suspended Platform |
| Rated load(kg) | 800 |
| Lifting speed(m/min) | 8.2 |
| Motor power(kw) | 2×1.8 50HZ |
| Brake torque(Km) | 15.2 |
| Steel rope angle adjusting range(°) | 3°- 8° |
| Distance between two steel rope(mm) | ≤100 |
| Rated stretch of front beam(mm) | 1100-1700 |
Suspending Platform | Locking | Aluminum alloy |
| Nr. of platform rack | Single rack |
| Nr. of platform | 3 |
| L×W×H(mm) | (2500×3)×690×1180 |
| Weight(kg) | 217 |
| Suspending mechanism(kg) | 2×175 Kg |
| Counterweight(kg) optional | 25×40pcs |
| Diameter of steel rope(mm) | 8.6 |
| Voltage(v) 3PHASES | 380V or as per your inquiry |
Features of ZLP800 Suspended Cradle 800kg Rated Load Building
Cleaning Equipment Swing Stage for Sale
1.Our suspended working platform can be widely used parapet and
complicated building in different height. And we can also supply
customized platform to meet different requirements from customers.
2. Besides, Suspension Working Platform can be used to lift
specific weight.
3.Suspension power Working Platform is a temporary, flexible high
access equipment for maintenance and construction work.
distinguished from permanent access equipment. It can be
disassembled conveniently.
4. ZLP800 suspended platform uses LTD80 hoisting motor. It has
electromagnetic brake motor, centrifugal speed limiting device, two
steep speed reducer and “a” type rope winding system.
5. Suspension Working Platform is a good helper for construciton
and decoration of high buildings.
6. It compared with traditional scaffolding, can save labours and
time to maintain the high buildings, such as industry workshop,
water tower, bridge, TV tower, big chimney, cenotaph, dam,etc.
7. Hoisting motor can wind rope automatically. Operator only need
to insert rope into the motor.
FAQ for ZLP800 Suspended Cradle 800kg Rated Load Building Cleaning
Equipment Swing Stage for Sale
Q1: What is the Warranty for suspended platform?
A1: For suspended platform, we can supply 0.5 year’s warranty. If
any quality problems (not artificial reason) on our side occurred
during this period, we will supply a free new one as replacement.
Q2: What is the meaning of ZLP for suspended platform model? And
please illustrate.
A2: ZLP is classified according to China National Standard.
“Z” is the acronym of decoration machinery in Chinese language
(Zhuang Xiu Ji Xie);
“L” is the second word acronym of platform in Chinese language
(Diao Lan);
“P” is the acronym of climbing type in Chinese language (Pa Sheng
Shi).
For example: ZLP630 means aerial suspended platform, and 630kg
rated load (630 is the main specification rated load)
Q3: What are the optional parts for your suspended platform?
A3:1) Safety belt
2) Concrete counter-weight. (If you don’t need the weights, we
could supply the molds for you to make them by yourself.)
Q4: What are the safety devices for your suspended platform?
A4: The safety device for suspended platform includes safety wire
rope, safety lock and travel limiter.
Q5: What is process to make an order?
A5: Any inquires will receive our immediate reply (within 24
hours), by contact and communication (online contact is better) to
sigh a contract. Then starting to produce and making package within
10 days after receiving the advance payment. A shipment advice will
offered after shipping so that you could get the goods in time. 24
hours after-sales service will be supplied for you.
Q6: What is your trade items of suspended working platform?
Qingdao or Shanghai or according to Clients' need. We could accept 1 set of our products as your trial order.
If any question about working platform, please feel free to contact
us. We are waiting for you!

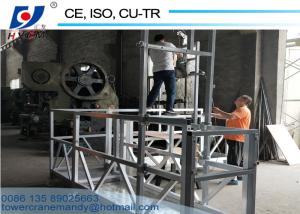

Photos for ZLP800 Suspended Cradle 800kg Rated Load Building
Cleaning Equipment Swing Stage for Sale
