High Precision 635 Mesh 304 Stainless Steel Screen Printing Mesh

    Buy cheap High Precision 635 Mesh 304 Stainless Steel Screen Printing Mesh from wholesalers

    Buy cheap High Precision 635 Mesh 304 Stainless Steel Screen Printing Mesh from wholesalers
    • Buy cheap High Precision 635 Mesh 304 Stainless Steel Screen Printing Mesh from wholesalers
    • Buy cheap High Precision 635 Mesh 304 Stainless Steel Screen Printing Mesh from wholesalers
    • Buy cheap High Precision 635 Mesh 304 Stainless Steel Screen Printing Mesh from wholesalers
    • Buy cheap High Precision 635 Mesh 304 Stainless Steel Screen Printing Mesh from wholesalers
    • Buy cheap High Precision 635 Mesh 304 Stainless Steel Screen Printing Mesh from wholesalers
    • Buy cheap High Precision 635 Mesh 304 Stainless Steel Screen Printing Mesh from wholesalers

    High Precision 635 Mesh 304 Stainless Steel Screen Printing Mesh

    Ask Lasest Price
    Brand Name : R&K
    Model Number : R&K-LLS4
    Certification : FDA
    Price : negotiation
    Payment Terms : L/C,T/T,Western Union,Paypal,Trade Assurance
    Supply Ability : 3000 square meter per month
    Delivery Time : in 5 days for goods in stock
    • Product Details
    • Company Profile

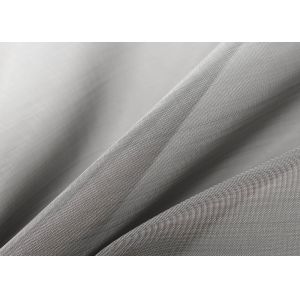

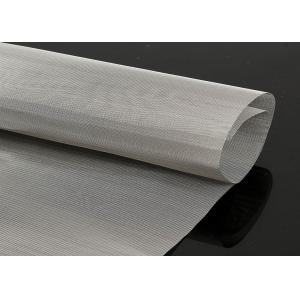

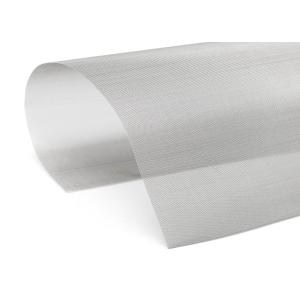

    High Precision 635 Mesh 304 Stainless Steel Screen Printing Mesh


    High Precision 635 Mesh 304 Stainless Steel Screen Printing Mesh


    Description of the Steel Screen Printing Mesh :


    Stainless steel wire and rod are used to manufacture a wide variety of woven steel mesh products. They
    are used in many applications ranging from the eye-catching and spectacular to the unobtrusive and utilitarian.


    Stainless steel seats are made of stainless steel wire.Its main feature is the warp and weft have larger diameter and density contrast, so thick and filtration precision and service life than the hole network, its filtering precision for the square hole network cannot be achieved.


    Material304HPS
    WeavePlain weave
    FeaturesGood Solvent Resistance
    Aperture size41-268micron
    Wire diameter0.018-0.02mm
    Width1m,1.22m

    Featuers of the Steel Screen Printing Mesh :


    High-Flexibility: The wire mesh will not lose elasticity at extremely tension.

    High tension.Much higher tension than common polyester mesh,and this property is very stable.

    Low Elongation: Very small elongation of wire mesh at igh tension.

    Non-electrostatic: To avoid affects of nonelectrostatic for printing and ensure the safety of printing.

    Good Solvent Resistance: To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.

    Specification of the Steel Screen Printing Mesh :


    SpecificationMesh/inchWire Dia(μm)Open area Ratio(%)Apereture (μm)Apereture(μm)Calendered Thickness
    (μm)
    Theoretical lnk(cm^/m^)
    40*40*1604016056475300-320As order179.1
    60*60*1206012051.3303230-245As order123.2
    80*80*1208012039198235-245As order92.9
    80*80*90809052228175-180As order103
    80*8*5080507126895-100As order78
    100*100*10010010036.8154195-205As order77.2
    120*120*801208039132155-165As order65.8
    150*150*601506041.7109115-124As order50
    165*165*35165356011970-75As order48
    165*165*451654550.110988-93As order45.1
    165*165*501655045.610497-105As order45.6
    180*180*451804546.49688-93As order41.5
    180*180*5018050429198-104As order41.7
    200*200*402004046.98782-84As order43
    200*200*5020050377798-103As order42
    230*230*352303546.77572-7650-6737
    250*250*402504036.86282-8650-8034
    250*250*302503049.77264-6840-5830
    250*250*3525035436776-7857-7032
    270*270*352703539.45976-8058-7030
    300*300*303003041.75566-684-5928
    325*325*3032530384866-6845-6024
    325*325*283252841.25063-6440-5626.4
    325*325*233252349.85549-5337-4125.4
    350*350*3535025434852-5441-5018.7
    400*400*234002340.74150-5435-4819
    400*400*184001851.34636-4028-3020
    500*500*185001841.73336-4023-2915.3

    Application of the Steel Screen Printing Mesh :


    Refining,mail use stainless steel fine mesh

    Healthcare

    Architectural ,advise crimped wire mesh and coarse wire mesh used as protection mesh

    Acoustic,headphone net

    Automotive

    Security,PVC coated stainless steel mesh 11mesh.

    Pharmaceutical: food grade stainless steel fine mesh
