    ECHU CABLE PVC Insulation Flexible Shield Round Control Cable KVVR 450/750V in grey color

    Ask Lasest Price
    Brand Name : ECHU
    Model Number : KVV, KVV22
    Certification : CCC
    Price : USD0.223-USD0.613/M
    Payment Terms : T/T, Western Union
    Supply Ability : 1000KM/WEEK
    Delivery Time : 10days after receiving deposit
    • Product Details
    • Company Profile

    ECHU CABLE PVC Insulation Flexible Shield Round Control Cable KVVR 450/750V in grey color

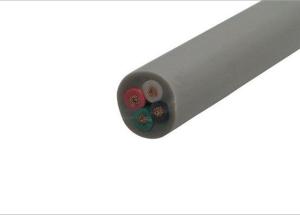

    Flexible Round Control Cable

    Control cable

    PVC insulated sheathed control cable is worked as control, monitor or protect cable under AC rated voltage 450/750V or less than it.

    Rated voltage: 450/750V
    Long term working promitted temperature: +70 degree
    Cable laying temperature could not lower than 0 degree
    Suggestion bending radius:
    Without sheathed cable should not less than 6x outer diameter
    Sheathed cable or copper shield cable should not less than 12Xouter diameter
    Shielded flexible cable should not less than 6x outer diameter
    Standard: GB9330
    Structure:
    Conductor: Oxygen-free bare copper
    Insulation: PVC
    Color: Black number with digital coding, 3 cores or more with green/yellow earth (optional
    Inner liner: Non-woven fabric
    Sheath: PVC sheath black (RAL9005) or Grey (RAL7001)
    Technical data:
    Working temperature:
    Flexing Installation: -10 degree to + 70 degree
    Fixed Insutallation: -30 degree to +70 degree
    Working voltage: 450/750V
    Testing voltage: 3000V

    TypeSizeConductorWeight/KM
    KVV221.0*2C11.13133.2
    KVV221.0*3C11.13153.3
    KVV221.0*4C11.13176.7
    KVV221.0*5C11.13200.8
    KVV221.0*6C11.13225.3
    KVV221.0*7C11.13240.7
    KVV221.0*8C11.13265.2
    KVV221.0*9C11.13292.8
    KVV221.0*10C11.13317.4
    KVV221.0*11C11.13337.5
    KVV221.0*12C11.13352.9
    KVV221.0*13C11.13376.2
    KVV221.0*14C11.13391.6
    KVV221.0*15C11.13415.7
    KVV221.0*16C11.13431.1
    KVV221.0*17C11.13489.6
    KVV221.0*18C11.13505
    KVV221.0*19C11.13520.4
    KVV221.0*20C11.13541.2
    KVV221.0*21C11.13561.7
    KVV221.0*22C11.13591.1
    KVV221.0*23C11.13616.9
    KVV221.0*24C11.13632.3
    KVV221.0*25C11.13653.1
    KVV221.0*26C11.13668.5
    KVV221.0*27C11.13683.9
    KVV221.0*28C11.13708.4
    KVV221.0*29C11.13723.8
    KVV221.0*30C11.13739.2
    KVV221.0*31C11.13764.6
    KVV221.0*32C11.13780
    KVV221.0*33C11.13795.4
    KVV221.0*34C11.13821.3
    KVV221.0*35C11.13836.7
    KVV221.0*36C11.13852.1
    KVV221.0*37C11.13934.5
    KVV221.0*38C11.13962.4
    KVV221.5*2C11.38158.4
    KVV221.5*3C11.38186.1
    KVV221.5*4C11.38217.7
    KVV221.5*5C11.38250.3
    KVV221.5*6C11.38283.3
    KVV221.5*7C11.38305.5
    KVV221.5*8C11.38338.5
    KVV221.5*9C11.38375.2
    KVV221.5*10C11.38408.2
    KVV221.5*11C11.38436
    KVV221.5*12C11.38458.1
    KVV221.5*13C11.38489.7
    KVV221.5*14C11.38511.9
    KVV221.5*15C11.38544.4
    KVV221.5*16C11.38566.6
    KVV221.5*17C11.38637.8
    KVV221.5*18C11.38660
    KVV221.5*19C11.38682.1
    KVV221.5*20C11.38710.7
    KVV221.5*21C11.38738.9
    KVV221.5*22C11.38777.7
    KVV221.5*23C11.38812.3
    KVV221.5*24C11.38834.5
    KVV221.5*25C11.38863
    KVV221.5*26C11.38885.2
    KVV221.5*27C11.38907.3
    KVV221.5*28C11.38940.3
    KVV221.5*29C11.38962.5
    KVV221.5*30C11.38984.6
    KVV221.5*31C11.381018.7
    KVV221.5*32C11.381040.8
    KVV221.5*33C11.381063
    KVV221.5*34C11.381097.6
    KVV221.5*35C11.381119.8
    KVV221.5*36C11.381142
    KVV221.5*37C11.381240
    KVV221.5*38C11.381277
    KVV222.5*2C11.78198.2
    KVV222.5*3C11.78239.3
    KVV222.5*4C11.78285
    KVV222.5*5C11.78331.9
    KVV222.5*6C11.78379.4
    KVV222.5*7C11.78413.7
    KVV222.5*8C11.78461.2
    KVV222.5*9C11.78513.1
    KVV222.5*10C11.78560.6
    KVV222.5*11C11.78601.7
    KVV222.5*12C11.78636
    KVV222.5*13C11.78681.7
    KVV222.5*14C11.78716
    KVV222.5*15C11.78762.9
    KVV222.5*16C11.78797.2
    KVV222.5*17C11.78888.5
    KVV222.5*18C11.78922.8
    KVV222.5*19C11.78957.1
    KVV222.5*20C11.78999.2
    KVV222.5*21C11.781040.8
    KVV222.5*22C11.781095.3
    KVV222.5*23C11.781144.7
    KVV222.5*24C11.781179
    KVV222.5*25C11.781221
    KVV222.5*26C11.781255.3
    KVV222.5*27C11.781289.6
    KVV222.5*28C11.781337
    KVV222.5*29C11.781371.3
    KVV222.5*30C11.781405.6
    KVV222.5*31C11.781454.3
    KVV222.5*32C11.781488.6
    KVV222.5*33C11.781522.9
    KVV222.5*34C11.781572.4
    KVV222.5*35C11.781606.7
    KVV222.5*36C11.781641
    KVV222.5*37C11.781763
    KVV222.5*38C11.781815.2
