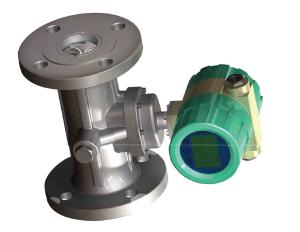

DN20 - 200mm High Pressure Air Flow Meter , Stainless Housing Vortex Flow Meter

    Buy cheap DN20 - 200mm High Pressure Air Flow Meter , Stainless Housing Vortex Flow Meter from wholesalers

    Buy cheap DN20 - 200mm High Pressure Air Flow Meter , Stainless Housing Vortex Flow Meter from wholesalers
    • Buy cheap DN20 - 200mm High Pressure Air Flow Meter , Stainless Housing Vortex Flow Meter from wholesalers
    • Buy cheap DN20 - 200mm High Pressure Air Flow Meter , Stainless Housing Vortex Flow Meter from wholesalers

    DN20 - 200mm High Pressure Air Flow Meter , Stainless Housing Vortex Flow Meter

    Ask Lasest Price
    Brand Name : Iflow
    Model Number : LUX20
    Certification : ISO9001, CE
    Price : negotiable
    Payment Terms : T/T, L/C, D/P, Western Union
    Supply Ability : 5000 pieces per month
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    DN20 - 200mm High Pressure Air Flow Meter , Stainless Housing Vortex Flow Meter

    high pressure air flow meter, Screw into the vortex flowmeter for ,Pipe size DN20-200mm


    Product features

    • Built-in pressure, temperature, flow sensor, high safety performance, compact structure, beautiful appearance.
    • Local display of temperature, pressure, instantaneous flow and cumulative flow.
    • Using a new signal processing amplifier and unique filtering technology, effectively eliminating the interference caused by pressure fluctuations and pipeline vibration signals, greatly improving the anti-interference ability of the flowmeter, so that the small flow with excellent stability.
    • Unique time display and real-time data storage capabilities, no matter what the circumstances, can guarantee that the internal data will not be lost, can be permanently stored.
    • Low power consumption of the whole machine, with long-term power supply within the battery run, is the ideal place to display instruments without external power supply.
    • Anti-theft function is reliable, with password protection to prevent parameter changes.
    • The header can be rotated 180 degrees, easy to install.

    Description

    LUX intelligent precession vortex flowmeter is a new generation of flow measurement instruments, suitable for measuring a variety of cryogenic liquids and gases. Generate flow through the spiral vortex body model, the detection of amplified output, you can get a good measurement accuracy and flow range


    Technical data

    DiameterFlow rangePressureAccuracyRepeatability
    200.5-25

    1.6Mpa (Alloy)

    16Mpa (stainless)

    1.0%

    1.5%

    1/3
    251-30
    322-60
    503-150
    8010-400
    10030-800
    15090-1800
    200180-3600

    Inlet

    Nameplate

    Outlet


    Display

    • Press F3, switch between working condition and standard condition
    • Accumulated flow is in cubic meter
    • Optical sensitive sensor, automatic sleep in night
    • Instantaneous flow accuracy : 0.001 m³
    • Temperature accuracy: 0.1 ℃
    • Pressure accuracy: 0.0001 kg
    • Accumulated flow accuracy: 0.001 m³
    • 24VDC power supply, backlit LCD display
