    Transit Time Type Ultrasonic Water Meter Agricultural With Built In Controller

    Ask Lasest Price
    Brand Name : Iflow
    Model Number : T3-1
    Certification : ISO 4064, GB/T19001
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 2200000 units per year
    Delivery Time : 4-6 weeks
    • Product Details
    • Company Profile

    Transit Time Type Ultrasonic Water Meter Agricultural With Built In Controller

    Ultrasonic water meter with instantaneous flow and accumulative flow Pressure PN1.6Mpa


    Description:

    Our ultrasonic water meters are available with three series: brass series (DN15-40), cast iron series (DN50-

    DN300) and stainless steel series (DN15-DN300), and can be widely used in utilities, waterworks, commercial, industrial, agricultural, medicine and health application as well as seawater and corrosive fluid metering.

    It has obvious advantages of performance compared with other domestic ultrasonic water meters and great price advantage compared to other advanced products in the world.


    • Superior hydraulic design, no moving parts, nothing mechanical to maintain
    • High precision, constant reliability and stability
    • Extremely wide turndown ratio (R=500: 1)
    • Super low pressure loss
    • Battery powered -- above 10 years or up to 20 years life expectancy
    • Extremely sensitive and accurate in low flows
    • Available sizes: DN15-DN300

    Data sheet

    DescriptionSpecifications
    StandardISO 4064-2005 , GBT 778.1-2007
    Liquid mediaLiquid is full of pipe line, such as water, sewage, seawater, effluent, waste water, slurry, etc.
    Media temperature0.1 - 30℃
    Work environmentTemperature: -10-45℃ , Relative Humidity: <100%
    Operate pressure1.6Mpa (optional 2.5Mpa)
    Upstream sensivityU3
    Downstream sensitivityD0
    Climatic and mechanicalClass C
    EMC classE2
    CommunicationRS485 / USART / Infrared
    Signal outputTwo way OCT pulse / TTL pulse / One-way 4-20mA
    Power supplyBuilt-in Lithium battery, (3.6V @ 19Ah) / DC8-36V
    ProtectionIP68 (submersible up to 2 meters depth)
    DisplayMultiline 9 digit accumulative flow, 4 digit velocity,
    Data storageEEPROM / Flash, automatically record 512 days accumulative flow
    Metering cycleMeasure: 1 times/second ; Verificaiton: 4times/second
    Power consumption<2.7Ah/year, 6 years battery life

    Overview

    • Enclosure protection IP68
    • Built in batch controller and time accumulator
    • Heat measurement for refigeration and air conditioning system
    • Double beam ultrasonic sensor for high accuracy
    • No moving parts, no rotation

    Display and operation

    • LCD display of instantaneous flow, accumulative flow, time
    • Bi-directional flow measurement
    • Display in different units, volume: cubic meter, ft, gallon, liter & velocity: m3/h, GPM, LPM.
    • Touch key panel
    • Infrared communication interface

    Ultrasonic Flowmeter Multi Jet Water Meter Dual Channel PN1.6Mpa

    Communication and signal output

    RS485OCT1 (open collector output 1)
    M-BUSOCT2 (open collector output 2)
    DC8-36VC1 (TTL level pulse output 1)
    Two-way 4-20mA outputC2 (TTL level pulse output 2)

    Material

    DN15-DN40 Single channel ultrasonic water meter (copper)

    DN50-DN40 Dual channel bulk ultrasonic water meter (cast iron)

    DN200-DN300 Dual channel large ultrasonic water meter (welded carbon steel)

    Flow range

    Nominal DRFlow (m3/h)
    Starting flowMinimal flow (Q1)Transitional flow (Q2)Normal flow (Q3)Overload flow (Q4)
    DN152000.0030.01250.0202.5003.125
    DN202000.00350.0160.0263.2004.000
    DN252000.0070.0200.0324.0005.000
    DN322000.0100.0320.0506.3007.875
    DN402000.0150.1000.16020.00025.000
    DN501000.0300.4000.64040.00050.000
    DN651000.0590.6301.00863.00078.750
    DN801000.0641.0001.600100.000125.000
    DN1001000.0941.6002.560160.000200.000
    DN1251000.1202.0003.200200.000250.000
    DN1501000.2702.5004.000250.000312.500
    DN2001000.3154.0006.400400.00500.00
    DN2501000.5084.0006.400400.00500.00
    DN3001000.7706.30010.080630.00787.500

    Competitive Advantage:

    • Compliance to international standards: ISO 4064-2005 , GBT 778.1-2007
    • Strict process control
    • Advanced calibration equipment
    • Engineer team

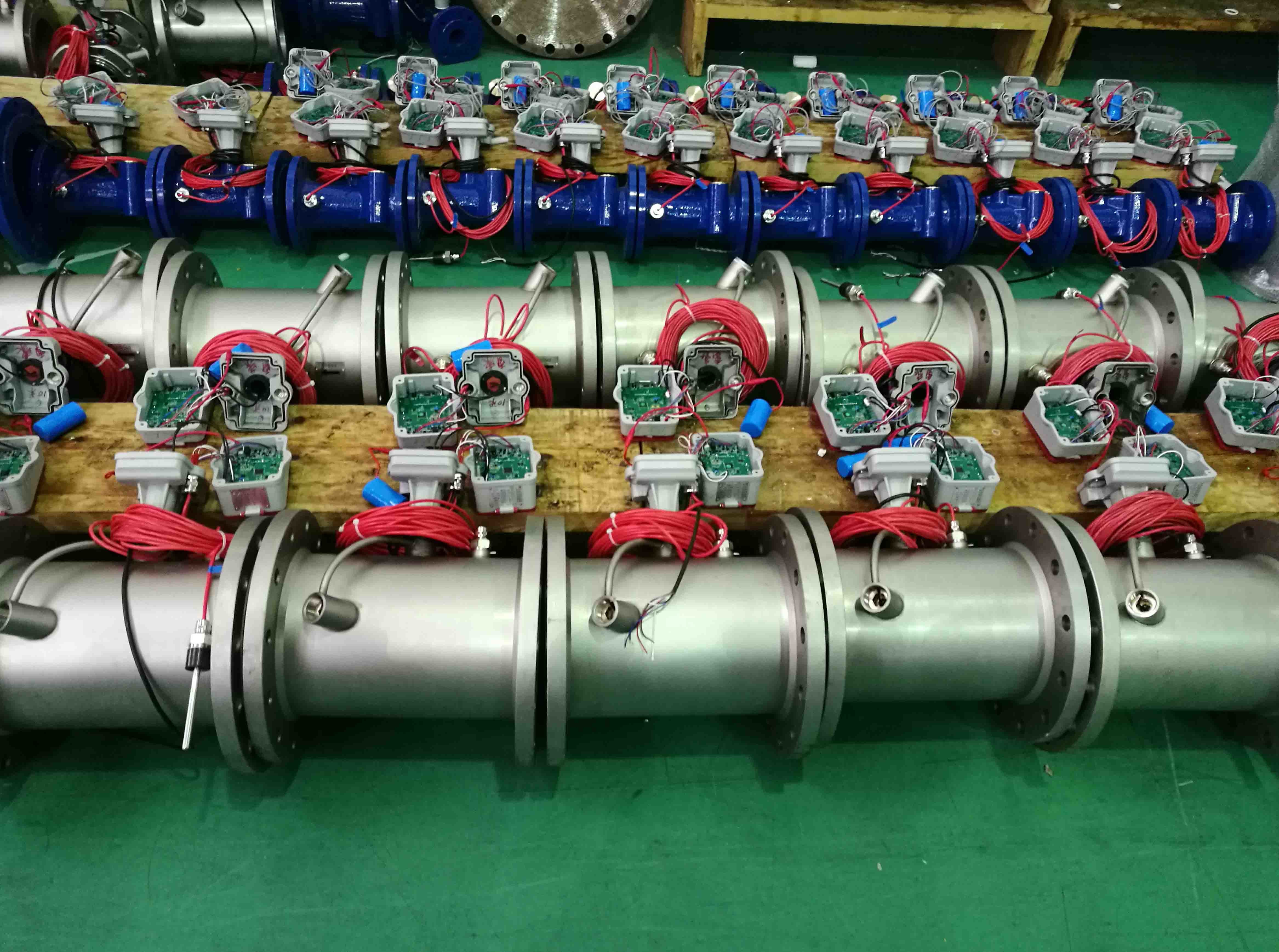

    Production line

    Competitive Advantage:

    • Compliance to international standards: ISO 4064-2005 , GBT 778.1-2007
    • Strict process control
    • Advanced calibration equipment
    • Engineer team

    Calibration equipment
