    20N Small weight sensor 2kg miniature load sensor for arduino

    Ask Lasest Price
    Brand Name : Forsentek
    Model Number : FMZT-2kg
    Payment Terms : T/T,Western Union or Paypal
    Supply Ability : 46500pcs/month
    Delivery Time : 3~25 working days
    Certification : CE
    • Product Details
    • Company Profile

    20N Small weight sensor 2kg miniature load sensor for arduino

    20N Small weight sensor 2kg miniature load sensor for arduino

    small weight sensor
    Features

    • Miniature load cell,small size
    • High output resistance,low heat emission
    • High accuracy
    • Low cost load cell
    • Suitable for arduino based applications
    • Customizable

    load cell 2kg

    Specifications

    Capacity2kg(20N)
    Rated output0.7 mV/V
    Excitation3-6V
    Zero balance±0.1mV/V
    Nonlinearity±0.1% R.O.
    Hysteresis±0.1% R.O.
    Nonrepeatability±0.1% R.O.
    Creep(2min)±0.1% R.O.
    Safe overload150% F.S.
    Ultimate overload200% F.S.
    Compensated temperature0...+25oC
    Operating temperature-10...+40oC
    Temperature shift zero±0.2% R.O./oC
    Temperature shift span±0.01% R.O./oC
    Input resistance1000±100 ohms
    Output resistance1000±10 ohms
    Insulation resistance>2000M ohms
    Ingress protectionIP50
    Material of elementAluminum alloy
    Cable

    AWG32*50mm

    (Longer cable upon request)

    Wiring code

    Red--Excitation+ Black--Excitation-

    Green--Signal+ White--Signal-


    Small size weight sensor 2kg miniature load cell sensor

    miniature load sensor

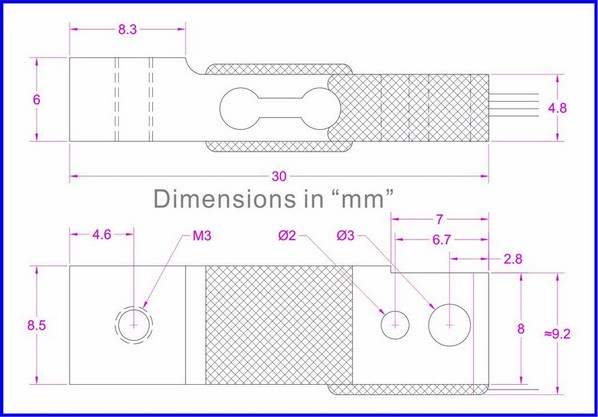

    Dimensions

     miniature load sensor
    Click here to download datasheet
