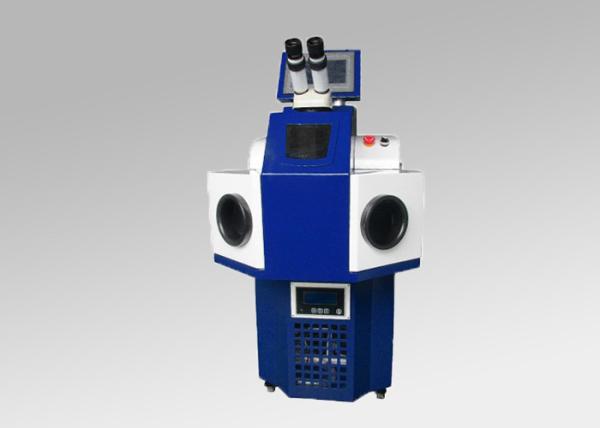

    Dual Path YAG Laser Welding Machine 300 Watt For Channel Letter Welding

    Ask Lasest Price
    Brand Name : Riselaser
    Model Number : RL-YW300
    Certification : ISO9001:2008
    Price : negotiation
    Payment Terms : Western Union, MoneyGram
    Delivery Time : 5-9 working days
    • Product Details
    • Company Profile

    Dual Path YAG Laser Welding Machine 300 Watt For Channel Letter Welding


    300W Dual Path YAG Laser Welding Machine for Module Repair and Channel Letter Welding


    Advertisement Word Welding Machine Introduction:

    The working principle of this laser deposition welding system makes most use of the welding technology of high-energy laser energy and concentration of fixed point to deal with all the tiny part of the welding effectively.And it makes up the shortage of traditional soldering and argon arc welding technology. Thermal strain and postprocessing are avoided, without environmental pollution, which greatly improves the strength and quality of the connection of metal character or signs.


    Advertisement Word Welding Machine Application:

    Application in a variety of boutique words, precision words,mirror word,steel words,titanium words,galvanized sheet words, 3D aluminium words, stainless steelwords,precision metal words,titaniumplane words,titanium Gold words,seiko titanium,plane copper words,globe plane copper words, and so on.And such these advertisement word and all kinds of metal marking LED metal are being welded and formed.


    Product features:

    1. Red light finds the welding point fast, CCD intuitive observation, optional microscope.

    2. Marble working platform, to ensure that the bright face plate does not scratch.

    3. Machining speed, dedicated fixed focus position of the rotation of the bearing rod, without the need for CCD and microscope. It can quickly focus on the welding.

    4. Small thermal deformation and heat affected zone.

    5. local heat treatment can be carried out on the metal word;

    6. Available for the processing of complex shape of parts and small words.

    7. Processing without noise, no pollution to the environment .

    8. Ultra fine bearing rotating positioning rod, friction plate welding word, also need not adjust the spot position in the font corner.

    9. Owing to the advanced processing method, the quality of the existing metal character is greatly improved.

    10. LED ring special lighting lamp, no dead spot.

    11. The selfproduced high peak laser power supply, for other brand is difficult to weld aluminum.The machine can easily achieve (400W models for welding aluminum models).

    12. Standard models and double light path optional hard light welding small, 5 meter long fiber welding with Chinese characters.


    Technical Data:
    ModelRL-W300RL-W400RL-W300WYRL-W500WY
    Custom Code8515800090 or 8515809090(the other welding machine and equipment)
    Machinery PartLaser cavity length of 1100 mm, the laser head can rotate 360 degrees.
    Working Area750*1000MM
    Load Bearing≤200KG
    Machine power supply220V±10%/50/60Hz380V±10%/50/60Hz220V±10%/50/60Hz380V±10%/50/60Hz
    Laser TypeNd:YAG impulse xenon lamp
    Spot Size0.2-3.0mm
    Laser Wave Length1064nm
    Impulse width≤10ms
    Laser Power300W400W300W500W
    single pulse energy90J120J90J120J
    Impulse Rate≤30Hz≤50Hz≤30Hz≤50Hz
    Laser output focal length150-250mm150-250mm

    150-250mm

    Laser head 120mm

    150-250mm

    Laser head120mm

    Laser CoolingWater cooling
    Cooling Capacity2700W5000W2700W5000W
    Total power<7KW<12KW<7KW<12KW
    Viewing SystemCCD
    Machine Size1400*800*1100mm1500*800*1100mm1400*800*1140mm1450*800*1100mm
    Water Chiller600*420*750mm

    900*600*950mm


    600*420*750mm

    900*600*950mm


    Package Size1500*830*1240mm1600*800*1240mm1500*830*1280mm

    1530*810*1200mm


    Gross Weight280KG430KG300KG450KG
    Applicable Material:
    Commonly used in gold and silver jewelry, golf heads, fill holes, Chlamydia trachomatis in spot welding, welding of electronic components inlaid ornament, stainless steel, titanium alloys, welding, repair of precision casting products, widely used in jewelry, electronics, watches, and other industries.

    Main Features:
    1.Whole machine adopted ergonomics design. It can better meet jewelry industry’s requirements on precision, beautiful, stable performance, long time and constant processing.
    2.Big inner space, it is convenient for placing tools and fixtures.
    3.It is equipped with electric focusing mechanism, digital scale reading display, regulating switch for laser parameters, it operates more smoothly.
    4.It is easy to replace dust screen, clean working area and recycle welding slag.
    5.With the LED ring-shaped astral lamp which can be highlighted and microscope imported from Germany, the observation on welding position is much clearer.
    6.More precise light spot, it meets the requirement of precision welding.

    Applicable Industries:
    Our machines are widely used on the jewelry industry, hardware industry, tool industry, the instrument industry, automobile industry, energy industry, architectural material industry, model and machine manufacturing industry, electric and electronic industry. More details, please contact us.
    Spot welding, perforating, repairing, retipping and resizing of gold/silver/titanium/platinum jewelry and small accessories. Also widely used in aviation, aerospace, sports products, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc.Widely applicable to all kinds of micro parts of precision welding, such as: Jewelry, electronics, watches, military.

    Industry Application:
    It applies top the same material welding of stainless steel, diamondor welding dissimilar material and son on. It is widely used in cell phone batterie, sensors, medical equipment, craft gifts, watches, electronic components, sensors, precision machinery, communications and other industries.
