    Metal / Plactic Marking Fiber Laser Module Source Compact Structure

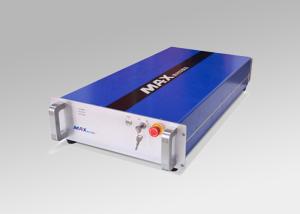

    20W MFP-20 Fiber Laser Source for Metal and Plactic Marking from Maxphotonics


    Lasers are the tool of choice no matter what the material as they produce permanent marks with a non-contact process at high speed with high precision. Laser marking requires no consumables and marks are computer generated and are therefore highly flexible.


    Q-Switched pulsed fiber laser source is available for fiber laser marking machine integrator. It is the best seller in Riselaser. It is widely used in metal marking, deep engraving, plastic marking, jewelry marking, laboratory testing and also fly marking on the production line.



    Features:


    ◇ Long Life Time: 10,000 Hours

    ◇ High Reliability, with more than 15000 lasers installed in the field, the reliability has been well proved.

    ◇ Warranty: 2 Years

    ◇ Compact Structure & Good Design with Unique Blue Color.

    ◇ Universal DB 25 Pins Interface, Easy to Install.

    ◇ Short Turning on time, Short Pulse, High Peak Power, Wide Repetitive Frequency Range.

    ◇ Anti-High-Reflection Function, Gold & Silver & Aluminum & Copper Marking Available.

    ◇ Maintenance free operation

    ◇ CE Certificate


    Optical Characteristic Parameters

    No.

    Characteristics

    1Test conditions

    Min.

    Nom.

    Max.

    Unit

    1

    Mode

    Pulse

    2

    Polarization

    Random

    3

    Beam Quality M2

    Pout=Pnom

    1.1

    1.3

    1.6


    4

    Center Wavelength

    Pout=Pnom

    1055

    1064

    1070

    nm

    5

    Spectrum Width(3dB)

    Pout=Pnom


    5

    10

    nm

    6

    Average Optical Power(Pnom)

    MFP-5W

    4.5

    5

    5.5

    W

    MFP-10W

    9.5

    10

    10.5

    MFP-20W

    19.5

    20

    20.5

    MFP-30W

    29.5

    30

    30.5

    MFP-50W

    49

    50

    51

    7

    Power Range


    10


    100

    %

    8

    Single Pule Energy

    MFP-5W


    0.45


    mj

    MFP-10W


    0.56


    MFP-20W


    0.67


    MFP-30W


    1


    MFP-50W


    1


    9

    Optical Pulse Width(FWHM)


    90

    100

    110

    ns

    10

    Pulse Repetition Frequency (PRF.)

    MFP-5W

    10


    30

    KHz

    MFP-10W

    22


    50

    MFP-20W

    30


    60

    MFP-30W

    30


    60

    MFP-50W

    50


    80

    11

    Output Power Stability

    Pout=Pnom



    5

    %

    12

    Beam Diameter

    1/e2

    6

    7.5

    9

    mm

    13

    Beam Ellipticity


    90



    %

    14

    Delivery Cable Length


    1.9

    2.5

    3

    M

    15

    Laser Startup Time

    Pout=Pnom,10%~90%


    110

    140

    us

    16

    Laser Shutdown Time

    Pout=Pnom,90%~10%


    110

    150

    us

    General Characteristic Parameters

    No.

    Characteristics

    Test conditions

    Min.

    Nom.

    Max.

    Unit

    1

    Operating Environment Tem.


    10


    42

    2

    Storage Tem.


    -10


    60

    3

    Cooling Method

    Air-cooling

    4

    Warm Up Time

    -Operate



    1

    min

    -Stable



    10

    5

    Operating Environment humidity


    10


    95

    %

    6

    Dimensions

    345.5*266.2*120

    mm

    7

    Weight

    MFP-5W


    7.5


    kg

    MFP-10W


    10


    MFP-20W


    10


    MFP-30W


    12


    MFP-50W


    12


    8

    Power Supply


    23

    24

    25

    VDC

    9

    Power Consumption

    MFP-5W


    90


    W

    MFP-10W


    12


    MFP-20W


    150


    MFP-30W


    240


    MFP-50W


    360


    For reference only. Other beam diameter avai lable by order.

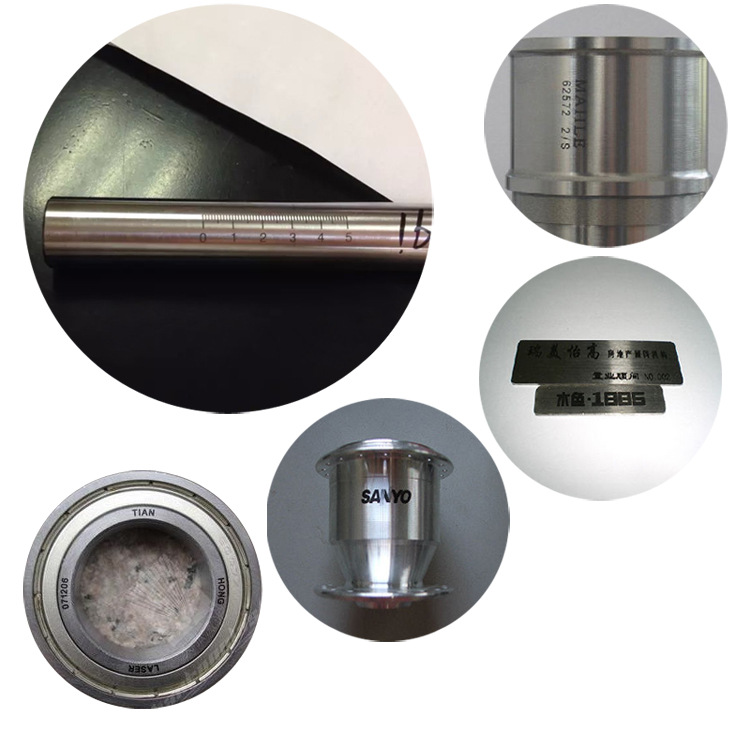

    Product Application:

    Application: Marking on metal, part of the non-metallic plating materials, plastic rubber, industrial-used plastics, ceramics and other marking; Deep carved; Fine processing; Special material processing
