    Updated Stainless Steel Metal Keypad With Bliand Dot for ATM Application in IP67 Standard

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B124KP-UT-IT-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : USD
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Updated Stainless Steel Metal Keypad With Bliand Dot for ATM Application in IP67 Standard


    Updated Stainless Steel Metal Keypad With Bliand Dot for ATM Application in IP67 standard


    DESCRIPTION:

    16 keys compact format IP67 dynamic water proof and vandal proof Stainless Steel industrial keypad with
    industrial electronics controller shielded and protected via stainless steel housing, industrial metal dome
    PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for
    stable and accurate data input, Slim ultra thin design. With industrial backlight included (Red/blue/white/green optional),top stainless steel plate with welded studs and water-tigth gasket for easy mounting and tightening to enclosure or panelwith top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environmentswith humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

    DIMENSIONS: 124.0mm x 98.0mm (front panel)


    APPLICATION:

    This Keypad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.


    MAIN FEATURE:

    1,The keypad can be dynamic washable with water and other liquids, it can work well even under water with
    2.0mm depth after 8 hours dynamic water proof testing.
    2, Imposing stainless steel design, specially designed keypads meet the highest demands with regard to design,functionality, longevity and high protection level.
    3,Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
    4,Waterproof execution according to IP67 protection from top panel, rear stainless steel plate with mounting holes and sealing gasket for easy tightly mounting to panel.
    5,An excellent tactile feel with short travel switches and allow users to achieve stable and accurate data input without any noise. With firm tactile perception for comfortable operation.
    6,key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
    7,Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key
    covers.
    8,Ease of customizing with multiple languages, to accommodate foreign or custom variants.
    9,Complete electronic modules including controller in close consultation with our customers are available.


    ELECTRICAL DATA:

    Supply Voltage+5V DC +/-5%
    Current Ratingappr. 20mA
    EMC StandardIt is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
    EMIEN 55022: 2010
    EMSEN 55024:2010
    Lifespan> 5 years
    Switch Contact MaterialGold-on-Gold key switch technology PCB
    InterfacePS2, USB, RS232, RS485 available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

    MECHANICAL DATA
    Front plate: Super quality SUS304 brushed stainless steel
    Back plate: Super quality SUS304 stainless steel
    Actuator/Key: 16 keys, super quality SUS304 brushed stainless steel
    Key top style: protuberant rectangular keys, with laser engraved and etched legends and raised dots available.
    Key size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for rectangle keys.
    Switching material: Gold-on-Gold.
    Actuation Force: 2.0N+/-0.1N for key 14.0mm x 21.0mm (pressure point)
    Key Travel: 0.45mm.
    Key life: more than 5 million of operations
    Dimensions: 124.0mm x 98.0mm.
    G.W. 0.8kg.


    ENVIRONMENTAL ADAPTABILITY
    Operating temperature:-20 o C to +60 o C
    Storage temperature: -30 o C to +70 o C
    Operating RH: 30-90%
    Atmospheric pressure: 60-106Kpa.
    Saline mist: 96 hours, IEC 60512-6
    Damp heat test at + 40 o C: 21 days, IEC 60512-6
    Dry heat test at + 85 o C: 10 days, IEC 60512-6


    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP67 (front panel)
    Vandal resistant IK10
    Key Lifespan > 5 million actuations
    MTBF >50000H
    MTTR <30min

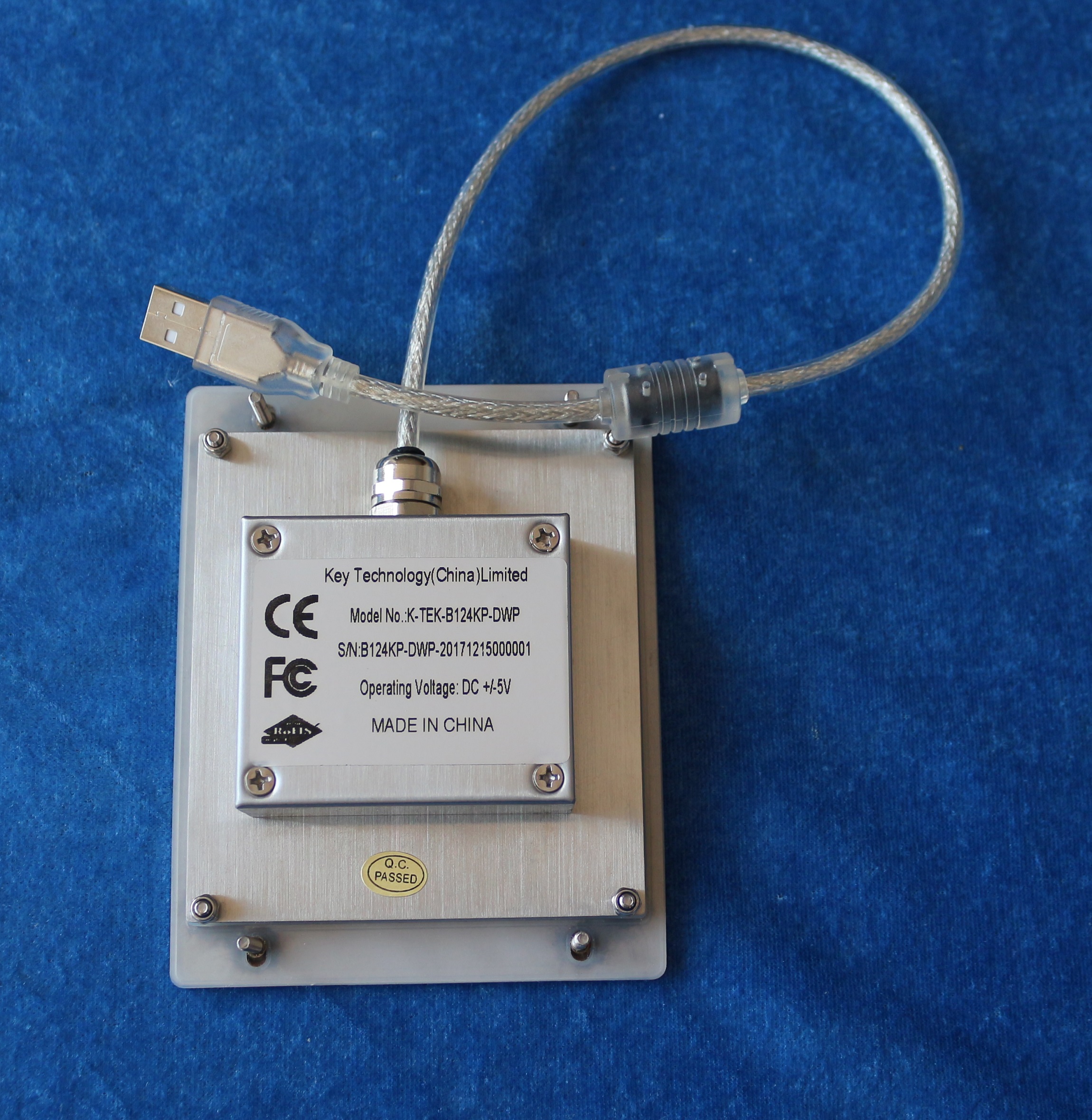

    Actual Photos:


    Our Factory:
