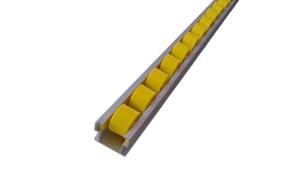

Slider Roller Track Type 40C Width 40mm Metal Frame for Conveyors
and Flow Rack
Description :
ROLLER TRACK is also widely known as PLACON.
PLACON is a compound word abbreviated from PLASTIC WHEEL CONVEYOR
It can be easily combined to pipe.
Being light and easy to use, the FLOW RACK, using the PLACON, can
improve the efficency
of goods circulation due to its easiness to control quality and
stock by the first in first out rules,
and easiness to cope with the diversitification of goods.
The specification of ESD placon is the same with normal placon
Applied to runner such as sliding shelf, slide way shelf, Carton
flow rack & shelves, gravity flow rack, fifo flow storage
etc.Widely used in the warehouse storage field, with high strength,
self-lubricating, shock resistance, long life.
Specification :
| Item code | 40C |
| Production name | Metal roller track |
| Color of wheel | white/black |
| Standard length | 4000mm per bar |
| Width of track | 40 mm |
| Reusable | Yes |
| Material of wheel | PP |
Other Roller Track
Width 40mm :40A/40B/40D/40M
Width 60mm:60A/60B/C
Width 85mm:85M
Features:
1. Roller tracks are designed to efficiently transport material of
varied size and weight.
2. Using the placon can improve the efficiency of goods flow, due
to its easiness to control quality
and store by the ' first-in first-out' ( FIFO) rules
3. Roller tracks are most often used in flow racks, but can be used
for virtually any material flow
application, when combining with our coated pipes and pipe fitting.
4. Ideal for requirements in warehouse racking
5. Using our all kinds of metal pulley connectors, the roller
tracks are easily installed and will
support significant weight. The slope and spacing between tracks is
adjustable and determined
by the size and weight of the material being handled.
Applications:
The system is supported by a wide selection of roller
styles,mounts,frames,components and guide rails.Precision rollers
spin freely and smoothly on polished conveyors which will also
result in using less vertical space.

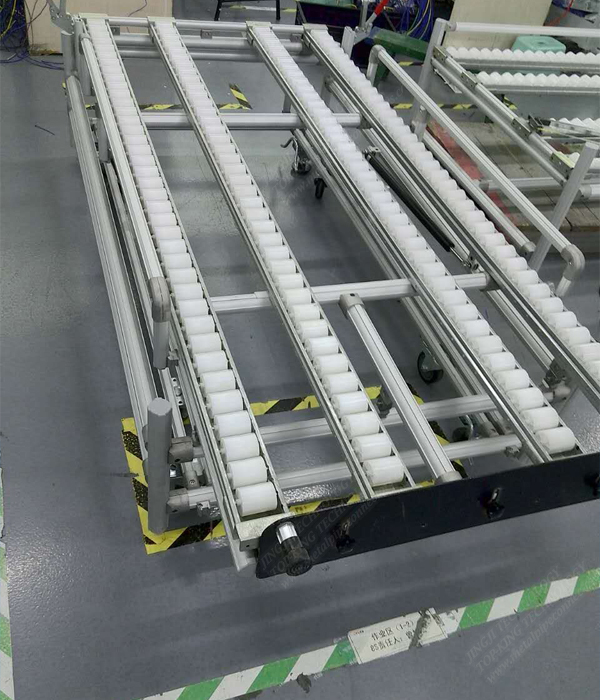

1) Flow Rack built with 28mm pipe and components combines heavy duty handling
and storage capacity with simplistic gravity-fed point-of-use
part/container conveyance.
2)Bent Pipe Flow Rack guarantees FIFO ergonomic “strike zone” and bent pipe frame offers
pleasing aesthetics while reducing the required number of metal
joints to assemble.
3)28mm Pipe & Joint System provides rigidity and strength for industrial applications without
the need for cross bracing while conveying either boxes or plastic
totes.
