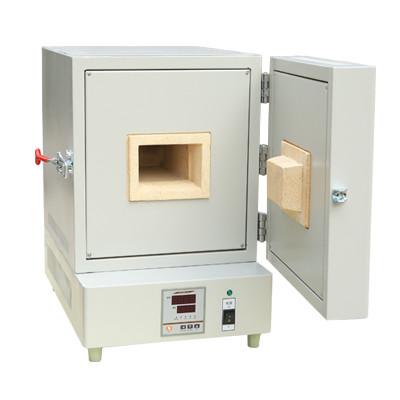

SX2-2.5-10N Muffle furnace/Box-type resistance furnace/Ash test
Characteristics of the equipment:
1) Heat up fast By 100 ℃ heat up to 1000 ℃, about 100 minutes
2) Quick ashing
As the ashing furnace, can into the wind hole, pipe, is conducive
to fill in fresh oxygen, accelerate ashing (optional)
3) Light in weight About 50 kg
4)Heat preservation performance is good .Thermal insulation
material is Alumina bubble brick and expanded perlite bricks.
5) Temperature is controlled by time
After each step working temperature rises to the set value, the
timer automatically start to work, according to the set time
constant temperature.
6) The temperature control precision Adopts digital display
instrument, accurate temperature control.
7) Practical safe Grounding terminal and protect the personal
safety
The temperature controller Technical parameters
| The control mode | Single point of SPC |
| Apply to power supply | AC 220V |
| Number of workers | 1 |
| Control precision | ±1℃ |
Technical parameters
| The furnace model | 2L |
| Temperature rise time | 100-1000℃ about 100min |
| Power source | AC 220V |
| power(KW) | 2.5 |
| Heating element type | Resistance wire |
| The sensor type | K |
| Furnace size(mm) | 80*120*200mm |
