Universal Tensile Measure Apparatus/Universal Tensile Machine
Description:
Universal Tensile Measure Apparatus/Universal Tensile Machine is
advanced testing machine model which adopt the computer close loop
control and graphic display technology. The control software is
base on the Mircrosoft Windows and has the both Chinese and English
languages version. Computer controls the whole testing process; the
software can get the test value by all kinds of sensor and using
the software analyzing module, user can get all kinds of mechanics
parameter such as tensile strength, elastic modulus and elongation
ration automatically. And all test data and result can be saved to
computer, also the system allow user to print the test report with
curve and parameter.
The XWW series testing machine is widely used in the field of
rubber, plastic, PVC pipe, board, metal wire, cable, waterproof
materials and film industry. By using different kinds of
accessories, it can do the test of tensile, compression, bending,
shear, peeling, tearing and all other kinds of testing. This is a
common testing equipment for all kinds of lab and quality control
department to determine the material quality and mechanics
analyzing.
Maintechnical parameter of Universal Tensile Measure
Apparatus/Universal Tensile Machine:
| Model | XWW-C |
| Type | floor model with single test space |
| Max. Load | 100N200N500N1KN2KN5KN10KN20KN50KN100KN200KN300KN |
| Accuracy Grade | 1% (special order 0.5%) |
| Force-measuring Range | 2%~100%FS (special order 0.4%~100%FS) |
| Force-measuring Accuracy | ≤1% (special order≤0.5%) |
| Deformation-measuring Range | 2%~100%FS |
| Deformation-measuring Accuracy | 1% (special order 0.5%) |
| Crossbeam Displacement Resolution | 0.001mm |
| Crossbeam Speed Range | 0.01~500mm/min(or according to order) |
| Displacement Speed Accuracy | ≤ 0.5% |
| Test Width | 400mm (or according to order) |
| Total Crossbeam Travel | 600mm (or according to order) |

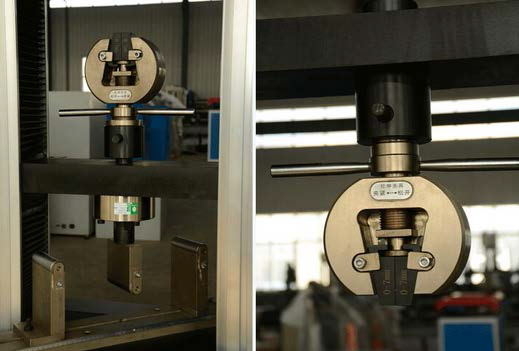

| Clamps | Many types for option |
| PC System | Equipped with brand computer and color inkjet printer |
| Power Supply | AC220V;400w (100N200N500N1KN2KN5KN) | AC220V; <1.5KW (10KN20KN50KN) | AC380V;3.0KW(100KN200KN300KN) |
| Standards | GB/T1040104193418804964717200, GB/6491, ISO7500-1, ISO5893,
ASTMD638695790 |
Software Functions of
Universal Tensile Measure Apparatus/Universal Tensile Machine:
1. Use windows working platform, set all parameter with dialog
forms and operate easy;
2. Using a single screen operation, do not need to change the
screen;
3. Have simplified Chinese, traditional Chinese and English three
languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast
ways;
7. With many units of measurement, the metric system and british
system can switch;
8. Have automatic calibration function;
9. Have user-defined test method function
10. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the
most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
