SJSL75A WPC Extruder Air Cooling Twin Screw Extruder Machine
Plastic Pellet Machine
Characteristics of twin screw extruder
The screw arrangement are adopted “toy bricks” principle, which
assembly according to different machine L/D, different feeding way,
different barrel and screw combination, different screen changing
and cutting way, different electrical control mode, etc. it meets
the features of material and technological process. Give
consideration to the plastic universality commonality and
appropriability.
Quick details
Power:110kw option according to required output
Screw diameter:71mm
Screw material: W6Mo5Cr4V2 (6542＃) high speed tool steel
Barrel diameter: 71.8mm
Barrel material:45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside
L/D:44:1
Output:300kg/h according to different material, formula and technology of
process etc.
Cutting way: air cooling die face plastic pellet machine is used
for wpc plastic pellet
Warranty:one year
Lead time:45 days after deposit

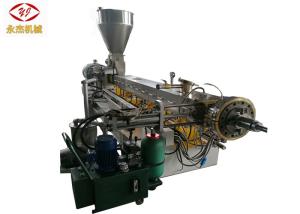

Photo of Wood Plastic Composite WPC Extruder Air Cooling Plastic
Pellet Machine
Main technical data of various model of twin screw extruder
pelleitizing machine
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own
land, with monthly output of machine 20sets. Our factory is
certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of
“high level, accurate, highly sophisticated series product parallel
co-rotating “cordwood” twin screw extruder, single screw extruder,
two stage extruders and automatic plastic pelletizing machines. We
have provided customers first-class products with “strong torque,
high production, energy conservation and environmental protection
products. The special designed screw structure has realized
successfully for “one step shaping” on many kinds of products, and
is widely used in aluminum composite plate, XPS foaming plate, WP
plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
How to choose machine for plastic pellet?
1. Just tell us your rough formula, like 50% PE +50% wood fiber +
additives etc.
2. Your expected output per hour of the mahcine
Package of machine
1. Sea worthy of film or bubble film
2. Wooden box or frame according to customer's requirements
