Application:
ASLi Unsaturated Pressure Cooker Test (PCT chamber) is widely
applied for the testing of sealing property for multi-layer circuit
board, IC sealing package, LCD screen, LED, semi-conductor,
magnetic materials, NdFeB, rare earths and magnet iron, in which
the resistance to pressure and air tightness for above mentioned
products can be tested out.
Features:
1. Automatic adding water function, and automatic filling water
upon the water short storage while testing.
2. Automatic operation to test process finished, easy to use.
3. Temperature control: LED digital temperature controller can make
accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reached the
setting value, then start to time to ensure the test complete.
5. Accurate pressure: temperature chart always shows the inner
box's pressure and relative humidity.
6. Water device is automatically discharge not saturated steam in
order to achieve the best steam quality.
7. A integrated silic gel door gasket, air tightness is very good,
and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution
Technical Parameters:
| Model | PCT - 25 | PCT - 35 | PCT - 45 | PCT - 55 | PCT - 65 |
Internal Dimension
Φ×D (mm) | 300×250 | 350×450 | 450×550 | 550×650 | 650×750 |
External Dimension
Φ×D (mm) | 750×1200×800 | 800×1250×800 | 900×1380×900 | 1050×1550×1100 | 1200×1700×1250 |
Temperature Range
of Saturated Steam
(Operating temperature) | (Temperature Rangeof Saturated Steam:100℃~135℃) ,Temperature Range:
120℃,100Kpa/ 133℃ 200 Kpa;(143℃ is special order) |
Relative Pressure/
Absolute Pressure | Relative pressure: display values indicated on the pressure gauge Absolute pressure: Value that add 100 Kpa based on display values
indicated on the pressure gauge (The actual value in the inner box) |
Comparison Table
of Temperature, Humidity,Pressure
of Saturated Steam |  |
| Humidity of Saturated Steam | 100%RH saturation steam humidity |
Steam Pressure
(Absolute Pressure) | 101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 (3.0Kg/cm2 is special standard) |
| Recursive Device | Steam Natural convection circulation |
| Safety Protective Devise | Water short storage protect, over pressure protect. (have
automatically/manual water replenishing, automatically discharge
pressure function ) |
| Accessories |  |
| Equipment Capacity(L) | 17 | 43 | 87 | 155 | 250 |
| Powder | AC 220V, 1ph 3 Lines ,50/60HZ ; |

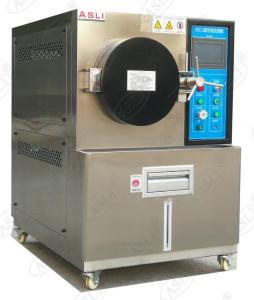

Products' Pictures:
FAQ:
1. Are your company a trading one or a factory?
Factory ,28 years focusing on test instruments field,4 years
exporting experience.
2. After an order is placed, when to deliver?
Generally about 20 workdays, If we have finished products, we can
arrange shipment within 3 workdays.
Please be aware that our production lead times depend on specific
items and item quantities.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sale service team will
provide perfect technical support,and help customer solve problems
encountered while using our product, handles guest problems and
complaints in a professional and timely.
4. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality
examination and test, the finished products must through a third
party calibration institutions before shipping and delivery goods.
5. How to install and training?
If the products is easy to install and training, customers can
learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come ASLi factory to
learn how to installation and use. And our engineers have a
passport, we can go to overseas.
6.What's your main products?
Environmental chambers, temperature (humidity) chamber,
Programmable Pressure Accelerated Aging Test Chamber (PCT
Chamber),ESS chamber, Walk in stability chamber,Vacuum
oven,Altitude chamber,vibration test system,mechanical shock
tester,environmental combined vibration chamber,etc.
