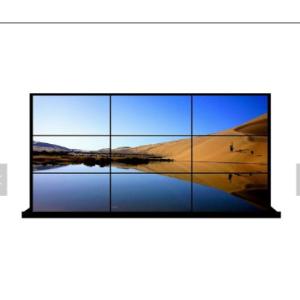

Cost effective 55" 3x3 3.5mm panel led Video wall with video wall
controller,wall mount rack
Application
1. Our advertising player useful for Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain
shops, large-scale sales, star-rated hotels, restaurants, travel
agencies, pharmacy.
2. Our advertising player useful for Financial Organizations: Banks, negotiable securities, funds, insurance companies,
pawnshops;
3. Our advertising player useful for Non-profit Organizations:Telecommunications, post offices, hospital, schools
4. Our advertising player useful for Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms,
property brokers
5. Our advertising player useful for Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms,
bars, cafes, Internet bars, beauty shops, golf course.
6. Our advertising player useful for Public Places:subway, airports, stations, gas stations, toll stations,
bookstores, parks, exhibition halls, stadiums, museums, convention
centers, ticket agencies, HR market, lottery centers;
Features:
A: Powerful input/output
B: Advanced video capture function
C: Multiple display modes: 1x1, 1x2, 1x3,1x4,2x1,2x2,3x1,4x1
splicing layouts.
D: Multi-viewer mode: up to 4 lays using single output, up to 2
layer using two outputs.
F: Multiple operations: Front Panel, TCP/IP (optional), RS232 port,
IR remote control.
G: WYSIWYG software control: a simple drag-and-drop style
interface,
H: Remote controller: 16 different modes of scene preset
I: High reliability and stability, it can work normally non-stop.
(7/24 application)
All the CK4L Series LED image processors can work stability with
power on and without inner operation system support.
| Panel Size | 43"-65" LG DID LCD Screen with LED backlight(with narrow bezel
5.3mm) |
| Aspect Ratio | 16:9 |
| Max Resolution Support | 1920×1080(H×V) |
| Color | 8Bit,16.7M |
| Brightness (nits) | 450cd/m2 |
| Contrast | 4000:1 |
| Visual Angle (H/V) | 178°(H) / 178°(V) |
| Response Time | 6ms |
| Life(hrs) | >60,000(hrs) |
| Input and output |
| DVI | 1 |
| HDMI | 1 |
| D-15 RGB Input(VGA) | 1 |
| YUV/YPbPR | 1(3xBNC) |
| S-(YC) | 1(2xBNC) |
| Composite Video Input/(AV) | 3(3xBNC) |
| Composite Video Output | 2(2xBNC) |
| AUDIO INPUT | 1 |
| Split Screen | Support Picture in Picture(PIP/POP/PAP) |
| Power |
| Power Supply | AC100V~240V |
| Maximum Power Consumption | 230W |
| Standby Power Consumption | <=3W |
| Temperature |
| Working Temperature | 0°C~50°C |
| Working Humidity | 20%-80% |
| Dimension | 1215.3×686.1mmx131mm |
| Video Wall Processor Controller |
| Model No. | MV-P817W |
| DVI in | 1 |
| HDMI in | 1 |
| VGA in | 1 |
| Composite Video Input/(AV) | 1(BNC) |
| Composite Video Output | 1(BNC) |
| Control signal input and loop out | RS232(RJ45-8) |
| Split Screen | Sport Picture in Picture (PIP/POP) |
| Working temperature | 0°C~55°C |
| working humidity | 10%~90% RH |
| AC voltage power supply | 100-240V/50, 60Hz |
| power consumption | Max 300W,according to different Screen models |
| Dimension | 338×295×60(mm) |
| Weight | About 3.5KG |
Edge shield technology
The unique edge shield technology through refine pixel adjustment
and the edge signal automatically extended, the edge covering part
is shielded to achieve a natural and intuive viewing.
Capability of acquiring multiple inputs
DVI-X multi-format acquisition technology allows inputs for AV,
S-video, YPbPr, VGA, DVI, HDMI accepted by the same DVI-I video card. This brings
you great convenience for the installation of real project.. E.G.,
it helps to avoid installation delay because of cabling.
Capability of decoding IP video camera
Support to decode the video from different IP camera brand, Hikvision, Dahua, Keda, Sony, Samsung, JSA, Bluestar, Histream, ACV, etc. The system can also decode IP video camera made by
other manufacturers as long as they provide us correct encoding
methods.
Wonderful operation experience
The control software can be installed in smart phones, Tablet-PCs,
or touch panels and are compatible with Apple iOS, Android, Windows platforms.
Through the patented apps, users can select input sources, recall
presets and adjust the size and position, superposition of video
windows.
