Seperately Transportation Seven Sections Cyclone Separators Dust Collection Circulating Fluidized Bed

Name: Seperately Transportation Seven Sections Cyclone Separators Dust Collection Circulating Fluidized Bed
Brand: HD BOILER
Price: 1 USD

Ask Lasest Price
Brand Name :	HD BOILER
Model Number :	Cyclone separator
Certification :	ISO9001 , SGS , TUV , ASME , EN
Price :	Negotiable
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	100 sets per Month
Delivery Time :	30- 100 Days

Add to Cart

Product Details
Company Profile

Seperately Transportation Seven Sections Cyclone Separators Dust Collection Circulating Fluidized Bed

Seperately Transportation Seven Sections Cyclone Separators Dust Collection Circulating Fluidized Bed

General Introduction

Cyclone separator is a kind of equipment used for separating gas-solid system or liquid-solid system. The working principle is that the solid particles or droplets with large inertia centrifugal force are separated from the outer wall by the rotating motion caused by the tangential introduction of air flow. The main characteristics of cyclone separator are simple structure, high operating flexibility, high efficiency, convenient management and maintenance, low cost. It is used for collecting dust with diameter of 5-10 μm. It is widely used in pharmaceutical industry. It is especially suitable for dust particles which are thicker and contain more dust. Under high temperature and high pressure conditions, it is also often used as an internal separation device in fluidized bed reactor or as a pre-separator. It is a widely used separation equipment in industry.

Characteristics

The main characteristics of cyclone separator are simple structure, high operating flexibility, high efficiency, convenient management and maintenance, low cost. It is used for collecting dust with diameter of 5-10 micron. It is widely used in pharmaceutical industry. It is especially suitable for dust particles which are thicker and contain more dust. It is also often used as internal separation device for fluidized bed under high temperature and pressure conditions, or as a pre-separator. However, its separation efficiency for fine dust particles(such as diameter < 5 micron) is low, and the separation efficiency of the fine powder can only reach 70%-90%. In order to improve dust removal efficiency and reduce resistance, many types of cyclone separators, such as spiral type, bypass type, diffusion type, swirl type and multi-tube type, have been developed.

The movement of gas and solid particles in a cyclone separator is very complex. There are tangential, radial and axial velocities at any point in the cyclone separator, which vary with the radius of rotation. Proper gas velocity should be controller in practice. Experiments show that the separation efficiency is not high because the gas velocity is too small. However, the high gas velocity will lead to eddy current and backmixing, which will also reduce the separation efficiency.

Principle and Working

A high speed rotating (air)flow is established within a cylindrical or conical container called a cyclone. Air flows in a spiral pattern, beginning at the top (wide end) of the cyclone and ending at the bottom (narrow) end before exiting the cyclone in a straight stream through the center of the cyclone and out the top.

Larger (denser) particles in the rotating stream have too much inertia to follow the tight curve of the stream and strike the outside wall, falling then to the bottom of the cyclone where they can be removed.

In a conical system, as the rotating flow moves towards the narrow end of the cyclone the rotational radius of the stream is reduced, separating smaller and smaller particles.

Product Description

Cyclonic separation can eliminate particulates, such as dirt and dust, from a stream of air, gas or liquid. Engineers sometimes call these tornadic dust busters centrifugal separators. That's because at the root of these machines is something called centrifugal force.

1	Although there are four commonly used cyclone separators, their operating principles based on that of the conventional cyclone, are very similar.
2	In the conventional cyclone, the gas enters a cylinder tangentially, where it spins in a vortex as it proceeds down the cylinder.
3	A cone section causes the vortex diameter to decrease until the gas reverses on it and spins up the center to the outlet pipe or vortex finder.
4	A cone causes flow reversal to occur sooner and makes the cyclone more compact Dust particles are centrifuged toward the wall and collected by inertial impingement.
5	The collected dust flows down in the gas boundary layer to the cone apex where it is discharged through an air lock or into a dust hopper serving one or more parallel cyclones .
6	Although conventional cyclones can be built to larger diameter, they are commonly 600 to 1600 mm in diameter.

Advantages

1. Low capital cost.

2. Ability to operate at high temperatures.

3. Can handle liquid mists or dry materials.

4. Low maintenance requirements (no moving parts).

5. Small footprint - requires relatively small space.

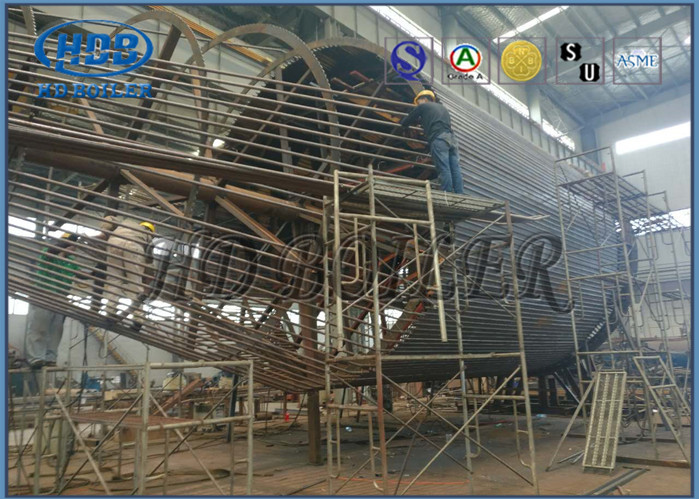

Production Workshop

Company Introduction

Established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port
