Addressable Pixel Led Light / Full Color Dmx Led Pixel For Amusement Park Lighting

Addressable Pixel Led Light / Full Color Dmx Led Pixel For Amusement Park Lighting

Quick Details :

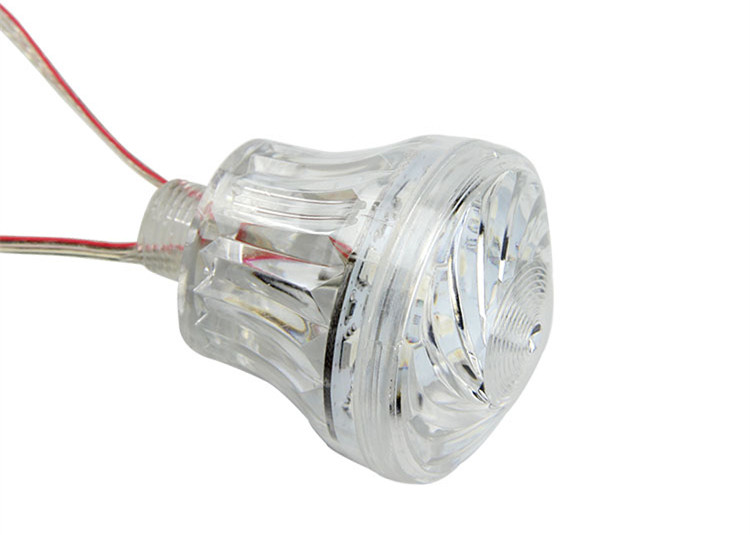

Type: New design 60mm diameter Frosted LED Modules

Model Number: PS-60mm-24V-18LED-2903-amusement

Chip Material: AlGaInP

Emitting Color: Tri-Color(Red-Blue-Green)

Luminous Intensity: R(4200)G(9600)B(4000) MCD

Luminous Flux(lm): 20-22lm

Optical Attenuation(%): 5

Power:4w

Power Dissipation: 3.5W

Viewing Angle(°): 120

Color Rendering Index(Ra): 90

Color Temperature: RGB

Operating Temperature(℃): -20 - 60

Storage Temperature(℃): -20 - 60

Place of Origin: Guangdong, China (Mainland)

Certification: CE, RoHS

Features and Benefits :
- This is the new type programmable LED Pixel
each LED ball control by a IC Chip with 6LED
- the connectors on back side is non-waterproof
- each Pixel included 1pcs screw
- Recommended drill a 19.1-35mm Hole on the panel
during the installation
- Every 20pcs in a group ,supply power to it to avoid voltage drop
- lifespan:30000H.Warranty :2 Years

Parameter :

Feature,

1-The Pixel LED principally refers to rides makers that ask complete solutions starting from professional advice

towiring ,Powering ,Control so we designed this cabochon style LED bulb which has a radial star effect with

central luminous lens which could expand the lighting

2-Front cap size approx 60mm, base diameter same as our 45mm pixel ,it’s 19mm, you should punch the

hole size 19.1--35mm

3-each bulb included a plastic screw for installation

4-there is a pair of 3Pin Jst SM connector in each bulb, it’s non-waterproof but the whole body IP67 waterproof

5-The system is based on the use of RGB LEDs ,Control by SPI controller that can program as nice as you want using

RGB LEDs of excellent quality and an advanced electronics which ensures reliability, high brightness and a

strong visual effect.

The amusement led lamp widely used for decorating the surface of buildings and lighting project.

The advantage of LED light:

1. No UV-IR radiation. Green products, no harm to human beings.

2. No heavy metal material (such as mercury, cadmium), friendly to the environment.

3. Good heat output, 90% high efficiency.

4. High luminous efficiency, 30,000 hours long lifespan.

5. Solid light source. Easy for transportation.

6. Low voltage and constant current operation, safe for installation and operation,

No strobe and glare light, reduce visual tiredness.

Phenson Lighting Tech.,Ltd （深圳市芬森照明科技有限公司）is a professional manufacturer and provider of various LED lighting products since established in 2003, owns a factory of 6000 square meters with high qualified clear workshops and locate in Shenzhen with 100 staff members,Combining the R&D team(20 engineers), manufacture department and sale&after-sales service team. Phenson factory equiped with advanced automatical Die Bonding&Chip Bonding equipments, SMT machine and molding machines; perfect quality-testing including aging test and safeguard measures; all of these prompt phenson to be the leader in production.we are mainly engaged in scientific research and develop LED newness with advanced technologies. The products produced by Phenson cover interior and exterior LED lighting which widely used in residential, commercial, architectural and industrial lighting.

To supply more innovated design is our goal, we have strong R&D team who are professional and have abundant experience in the areas of technical design, electronics, structure and illumination, most of our products are self-designed with private moulds, also we have passionate person to search sources to meet current market demands, with all our excellent experience and service in this field, we trust Phenson can give more great LED lighting solutions to our customers.As a professional LED Lighting manufacturer, Phenson Invested more than 10% funds of the turnover in R&D, providing users with one-on-one personalized service. Our product have passed UL, CE, EMC, LVD,

ISO9001:2008 & RoHS certifications and sell well in China and are exported to Europe, America, Asia and other areas. We produce a wide variety of products which were highly praised and well accepted by customers.

As a LED light supplier, we mainly focus on Europe and North America market at present, as the development and requirement of LEDs, we would like to have more our customers present LED lighting products in more potential markets based on our efforts.

Feeling Charming of the Light, looking for value of the Light. Our philosophy is " technique as the best,
quality as the first, to be honest to business, to improve constantly". We keep learning and studying to do our
best to be your reliable partner in the world. Join us, let’s grow together.

we have to remind our clients ,our bank account is Phenson Lighting Tech.,Ltd .

Our excellent sales are always at your service. Phenson, lighting up the future!
