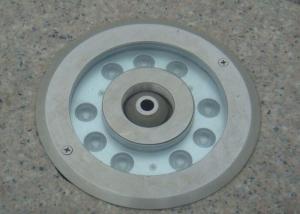

Embedded Type LED Underwater Lights RGB 3 In 1 Color LED Color Changing Pool Light

Embedded Type LED Underwater Light With OSRAM High Power LED 12/24V RGB 3 In 1 Color

Quick Details

• Power:1W,3W
• Voltage:DC12V,DC24V
• Material:316 stainless steel
• Color:RGB 3in1,single color
• IP Rate:IP68

Technical Datas

Dimension

Material & Manufacturing Technique

Housing:Molding shaped stainless steel sus316#.

Gasket:EPDM gasket

Glass:Tempered glass,T=7mm

Lens:Optional lens,efficiency ≥ 85%

Cable gland:IP68 PG-9 copper with nickel-coated.

Seal:Molding shaped silicone seal under the front cover

Silicone gule among the LED,lens and PCB.

LED:High power LED

PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

Driver:Constant current output

Single color LED=2-circuit output

RGB 3in1 LED=3-circuit output

Applicaation environment:Temperature of water between -20℃-40℃ less than 1m depth

Power cable:H07RN-F 2x1.0m² L=2m(for single color)

H07RN-F 4x0.75m² L=2m(for RGB)

Sleeve:061 PVC

Model Number Infos

Features

• Molding shaped SUS316 stainless steel housing and face.
• Tempered glass diffuser,high pressure resistant.
• IP68 protection class, sealed with silicone rubber gasket.
• Long working life: Over 50,000 hours.
• PVC sleeve & SUS 316 stainless steel

Warm Tip & Warning

• The 316 Stainless Steel 1W 3W LED Underwater Lights With Recessed Sleeve And Round Base has to be lighted underwater to prevent the lamp from burnning up because of over-heat. Pls don't light it more than 15 minutes out of water!

• The LED underwater light is 12V / 24V low voltage,pls don't connect it to 220V / 240V high voltage,this will burn the LED underwater light.

• The best height for this LED underwater light lighting is within 1M.

• The power cable of this LED underwater light can be customized.

• This LED underwater light has very lighting effect for fountain lighting project.

Photo Show

A.L Lighting Limited Birthday---2007,23th,October.

A.L Lighting Home----Located in Xiaolan town,Zhongshan City,near to Guzhen--the capital of world LED Lights.Our factory covering about 2,500m².Has six production line.

A.L Lighting Product Range---

-Indoor :LED Bulb Light,LED Down Light,LED Tube Light,LED Track Lights,LED Panel Light,LED Office Lights,LED High Bay Light,LED UFO Light.

-Outdoor:LED Underwater Light,LED underground Light,LED landscape spotlight,LED Flood Light,LED Wall

LED Wall Light,LED flexible strip light.etc.

A.L Lighting Families--Oversea salesteam-8people.(There will always have one sales stype suitable for you:))

China mainland salesteam-6people

R&D Team:6 people.

Management Team-5 people

Production Team-more than 120 people.

After-sales Team-4 people.

Product Quality Level--All of A.L products passed CE,RoHS certification and at least 2 years warranty.

The raw materials are also after strictly selected,the related materials are including Die-casting aluminum,

Aluminum,316 Stainless Steel ,304 Stainless Steel,Silicone,PMMC,PC,LED chip brand including CREE,

OSRAM,Bridgelux,SUMSANG,Epistar,TOYONIA.

A.L Lighting Factory--warmly welcome all partners visit our factory and share the ideas on LED lighting products and the market trend.
